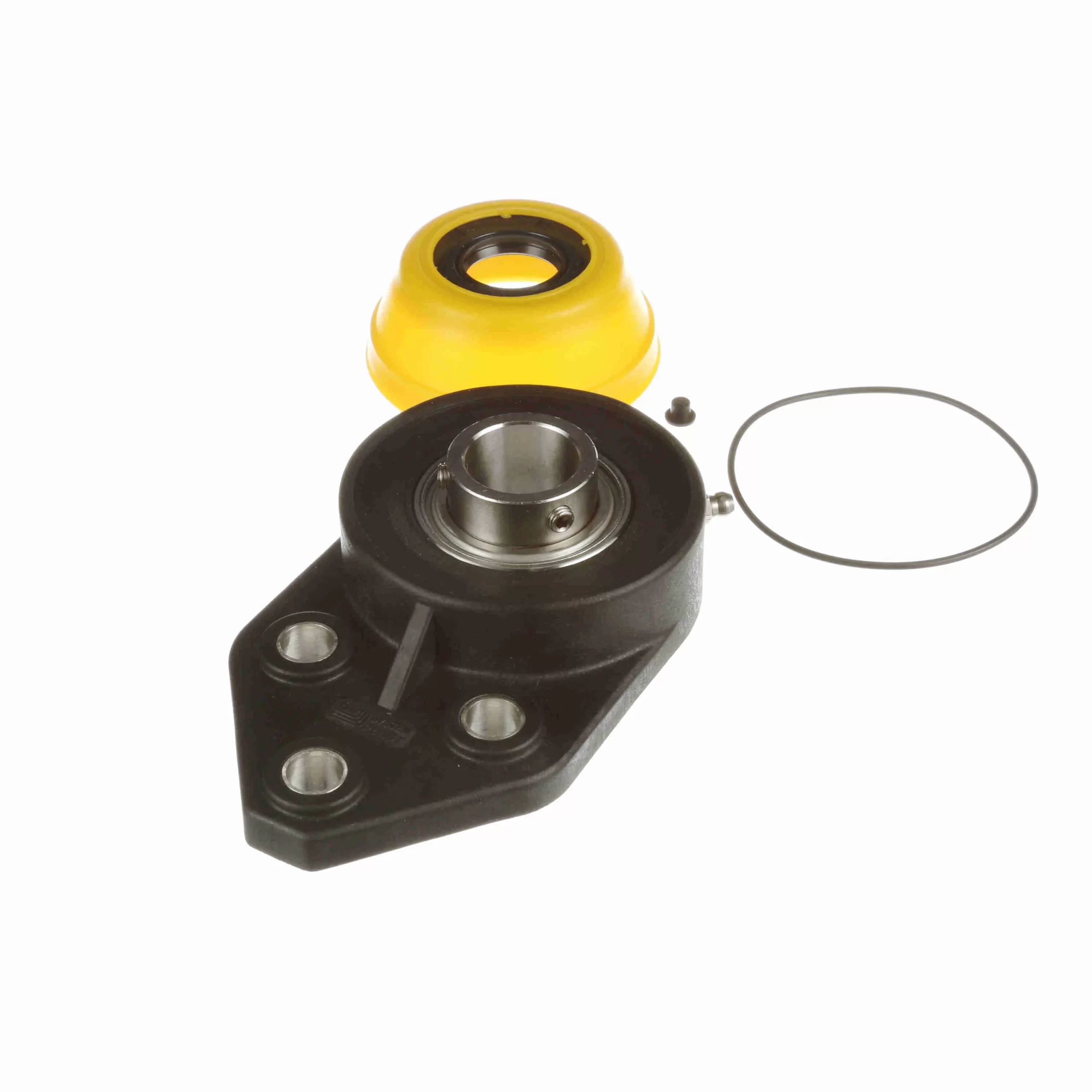

- Reinforced black polyamide housing.
- 400 series stainless steel setscrew locking bearing insert.
- Includes yellow open end cap with seal and O-ring, and back side housing seal.
UCFB206-20-SS-OEC
System Plast Mounted Polyamide Three Bolt Flange Bracket Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – Open End Cap/Back Seal included – UCFB206-20-SS-OEC
Out of stock
| Housing Type: | Flange, Bracket, Three Bolt | Housing Base: | Solid |
|---|---|---|---|
| Speed (Max): | 2900 | Bore Shape: | Straight |
| Insert Material: | 400 Series Stainless Steel | Duty Series: | Standard Duty |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Insert No.: | SS-SB206-20 RG | Internal Clearance: | Standard |
| Housing Material: | Polyamide | Retainer Type: | Ball Riding Retainer |
| Radial Dynamic Load Capacity (lb): | 2, 529 | Maximum Operating Temperature: | 180 °F |
| Lubrication: | NSF H1 Food Grade Grease | Expansion: | No |
| Misalignment: | ±1.0° Misalignment - Static Only | Seal Type: | Single Lip Contact Seal |
| Locking Type: | Setscrew | Relubricatable: | Yes |
| Housing Construction: | One Piece | Backside Shield/Seal: | Back Seal Installed in Housing |
| Replaceable Insert: | No | Retainer Material: | Stainless Steel Riveted |
| Bearing Insert Coating: | Uncoated | Platform: | System Plast |
| Housing Color: | Black | End Cap: | Yes |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 1, 888 | UPC: | 787405286139 |
| Weight: | 1.10 LB | Packaged Length: | 5.53 Inches |
| Packaged Width: | 3.31 Inches | Packaged Height: | 2.3 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | China |
