- Reinforced white polyamide Nolu-Clean housing with antimicrobial additive.
- 400 series stainless steel setscrew locking bearing insert.
- Includes white Nolu-Clean open end cap with seal and O-ring, and back side housing seal.
UCFB205-25M-SS-NC-OEC

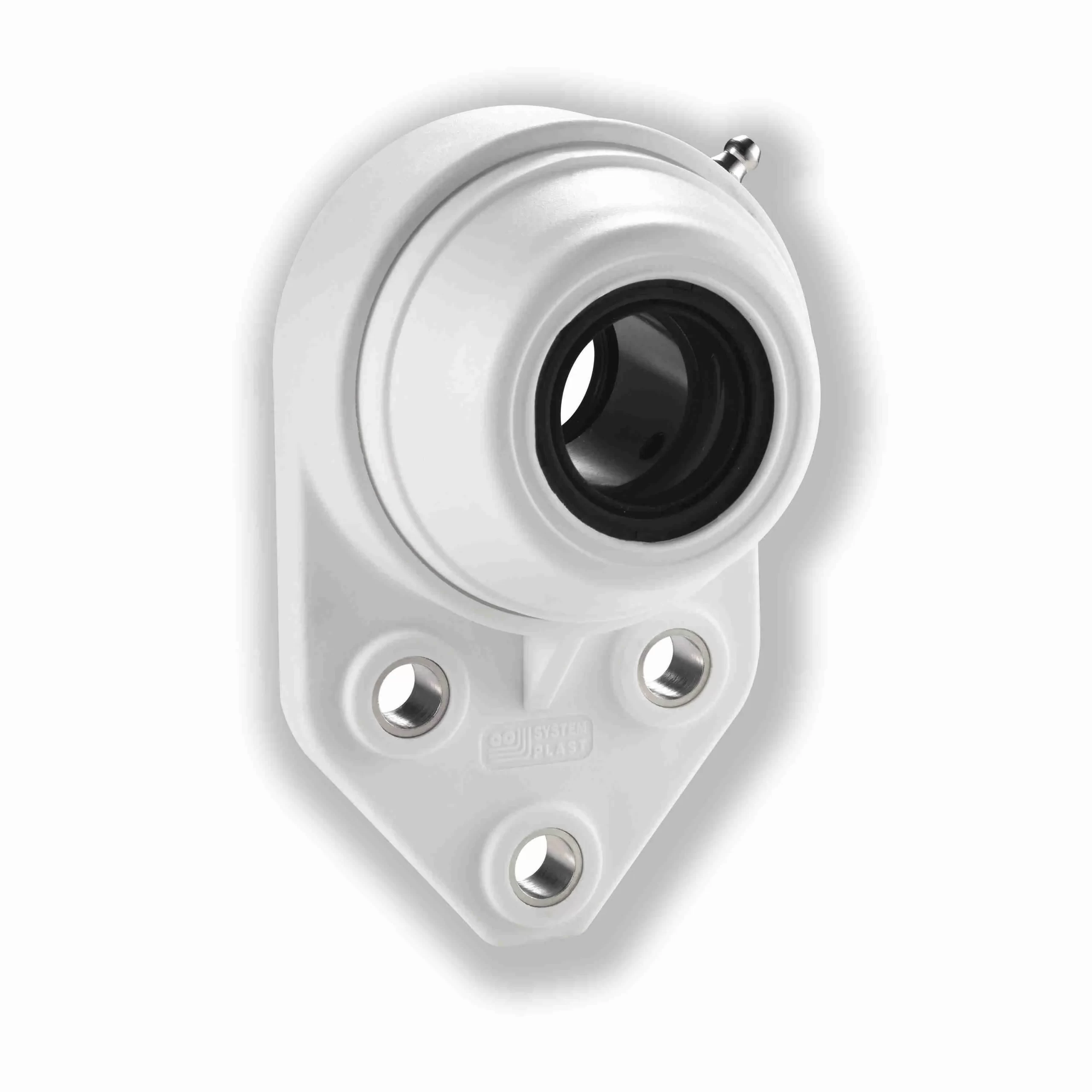

System Plast Mounted Nolu-Clean Three Bolt Flange Bracket Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – Open End Cap/Back Seal included – UCFB205-25M-SS-NC-OEC
Out of stock
| Duty Series: | Standard Duty | Internal Clearance: | Standard |
|---|---|---|---|
| Retainer Type: | Ball Riding Retainer | Rolling Element: | Ball Bearing |
| Housing Material: | Nolu-Clean | Speed (Max): | 3500 |
| Housing Type: | Flange, Bracket, Three Bolt | Housing Base: | Solid |
| Insert No.: | SS-SB205-25M RG | Measure Units: | Metric |
| Insert Material: | 400 Series Stainless Steel | Bore Shape: | Straight |
| Seal Type: | Single Lip Contact Seal | Lubrication: | NSF H1 Food Grade Grease |
| Maximum Operating Temperature: | 180 °F | Radial Dynamic Load Capacity (lb): | 1, 821 |
| Misalignment: | ±1.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Locking Type: | Setscrew | Relubricatable: | Yes |
| Expansion: | No | Replaceable Insert: | No |
| End Cap: | Yes | Bearing Insert Coating: | Uncoated |
| Outer Ring Land Profile: | Standard | Housing Color: | White |
| Platform: | System Plast | Retainer Material: | Stainless Steel Riveted |
| Misalignment Type: | Static Only | Radial Static Load Capacity (lb): | 1, 304 |
| UPC: | 787405581722 | Weight: | 1.09 LB |
| Packaged Length: | 4.92 Inches | Packaged Width: | 2.72 Inches |
| Packaged Height: | 2.15 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | China |
