- Reinforced black polyamide housing.
- 52100 chrome steel setscrew locking ball bearing insert.
UCFB205-16

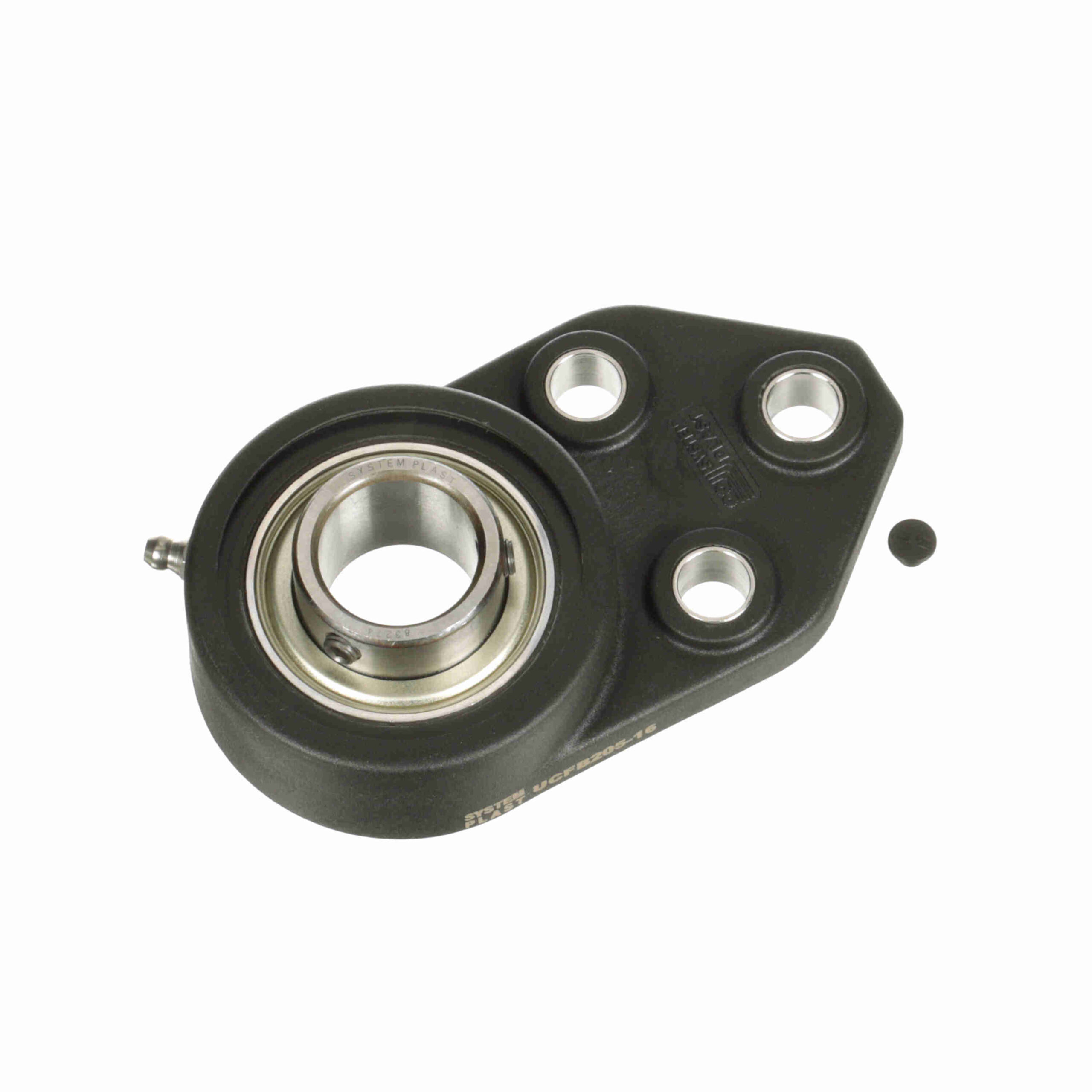

System Plast Mounted Polyamide Three Bolt Flange Bracket Ball Bearing – 52100 Bearing Steel – Setscrew Lock – UCFB205-16
Out of stock
| Duty Series: | Standard Duty | Bore Shape: | Straight |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel | Housing Type: | Flange, Bracket, Three Bolt |
| Measure Units: | Inch | Insert No.: | SB205-16 RG |
| Internal Clearance: | Standard | Housing Material: | Polyamide |
| Retainer Type: | Ball Riding Retainer | Housing Base: | Solid |
| Speed (Max): | 3500 | Rolling Element: | Ball Bearing |
| Misalignment: | ±1.0° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 2, 428 |
| Housing Construction: | One Piece | Lubrication: | NSF H1 Food Grade Grease |
| Relubricatable: | Yes | Expansion: | No |
| Maximum Operating Temperature: | 180 °F | Locking Type: | Setscrew |
| Seal Type: | Single Lip Contact Seal | Replaceable Insert: | No |
| End Cap: | Yes | Bearing Insert Coating: | Uncoated |
| Outer Ring Land Profile: | Standard | Housing Color: | Black |
| Misalignment Type: | Static Only | Retainer Material: | Steel Riveted |
| Radial Static Load Capacity (lb): | 1, 754 | UPC: | 787405279681 |
| Weight: | 0.88 LB | Packaged Length: | 4.92 Inches |
| Packaged Width: | 2.71 Inches | Packaged Height: | 1.41 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | China |
