- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
U1 4 7/16

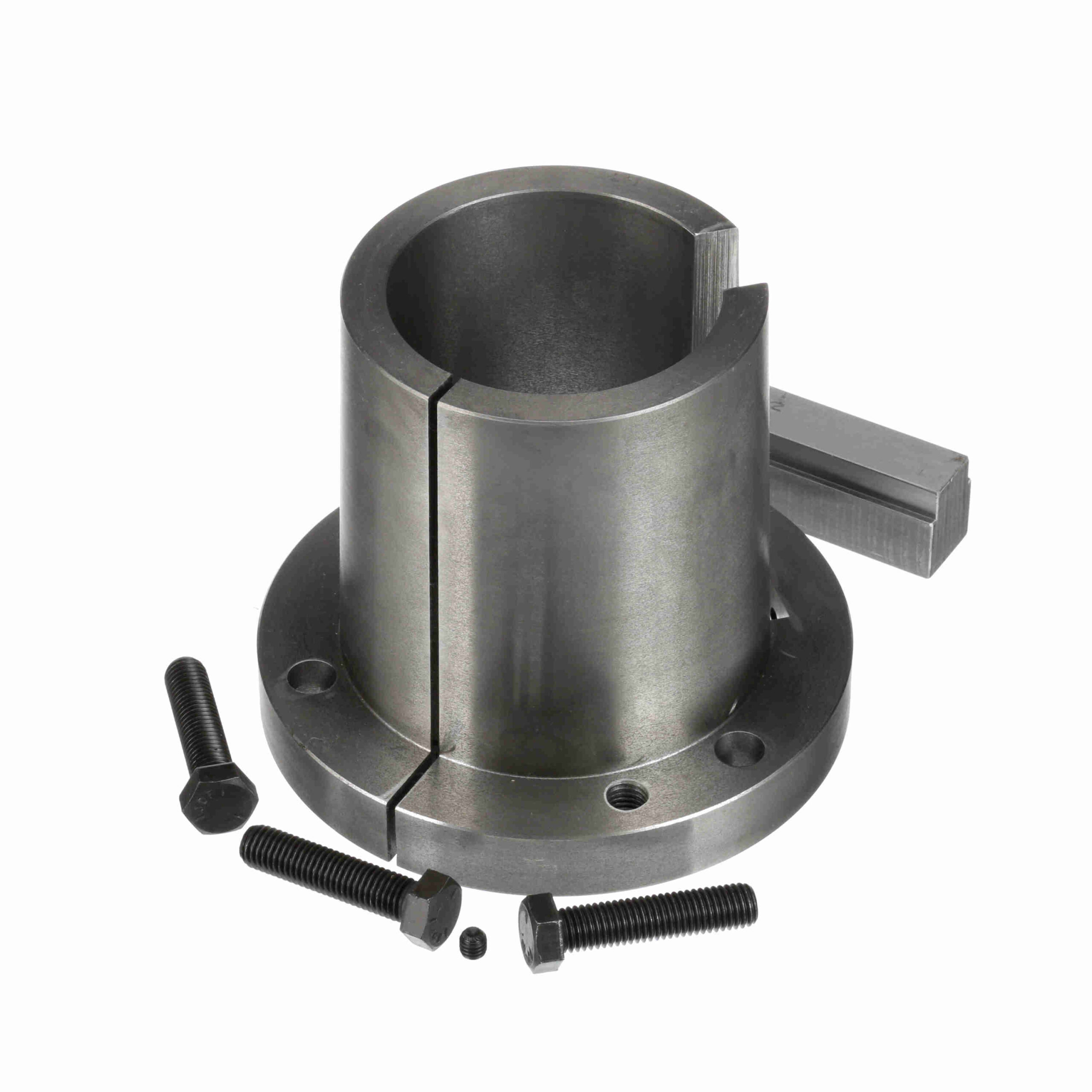

Browning Split Taper Bushing – Inch Bore Type – U1 4 7/16
$1,309.24
Out of stock
Out of stock
| Length Through Bore (in): | 7.125 in | Keyseat: | 1 x 1/2 |
|---|---|---|---|
| Outside Diameter (in): | 8.375 in | Material: | Ductile Iron or Gray Iron |
| Cap Screws (Size): | 5/8 x 2 3/4 | Total Length (in): | 7.125 in |
| Bushing Type: | U1 | Product Type: | Split Taper Bushing |
| Bore Size (in): | 4.4375 in | Wrench Torque (in-lb): | 1, 680 |
| Model Name: | U1_Type2_BushingMaster | Compatible Bore Size [Max] (in): | 4.4375 in |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| UPC: | 662289192472 | Weight: | 31.76 LB |
| Packaged Length: | 12 Inches | Packaged Width: | 10.6 Inches |
| Packaged Height: | 10.2 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
