- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
U1 3 7/8

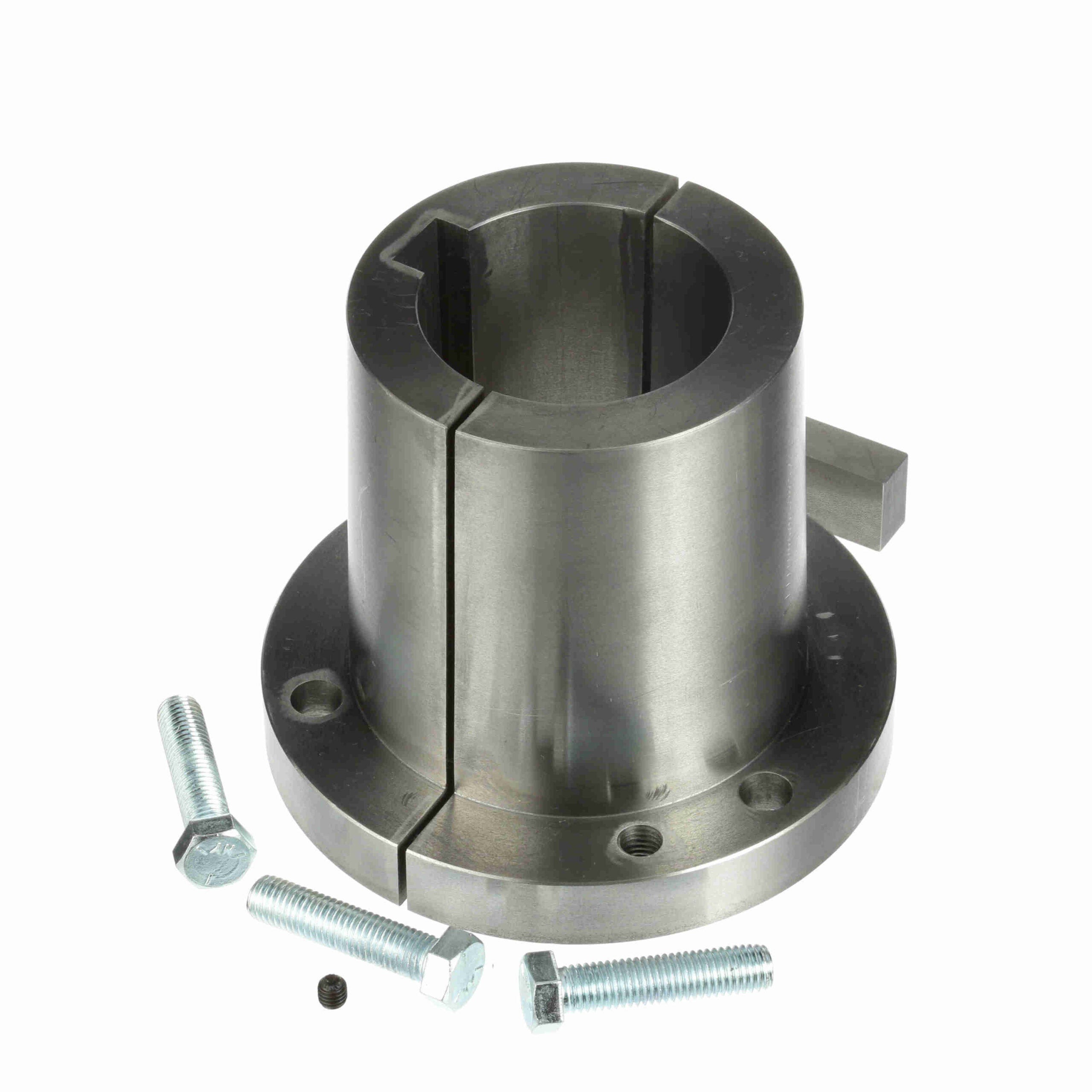

Browning Split Taper Bushing – Inch Bore Type – U1 3 7/8
$1,692.94
Out of stock
Out of stock
| Compatible Bore Size [Max] (in): | 3.875 in | Cap Screws (Size): | 5/8 x 2 3/4 |
|---|---|---|---|
| Material: | Ductile Iron or Gray Iron | Total Length (in): | 7.125 in |
| Wrench Torque (in-lb): | 1, 680 | Product Type: | Split Taper Bushing |
| Bushing Type: | U1 | Keyseat: | 1 x 1/2 |
| Length Through Bore (in): | 7.125 in | Model Name: | U1_Type1_BushingMaster |
| Outside Diameter (in): | 8.375 in | Bore Size (in): | 3.875 in |
| Bore Type: | Inch | Cap Screws (No.): | 3 |
| UPC: | 662289272358 | Weight: | 35.95 LB |
| Packaged Length: | 9.25 Inches | Packaged Width: | 9.25 Inches |
| Packaged Height: | 3.88 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
