- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
U1 2 15/16

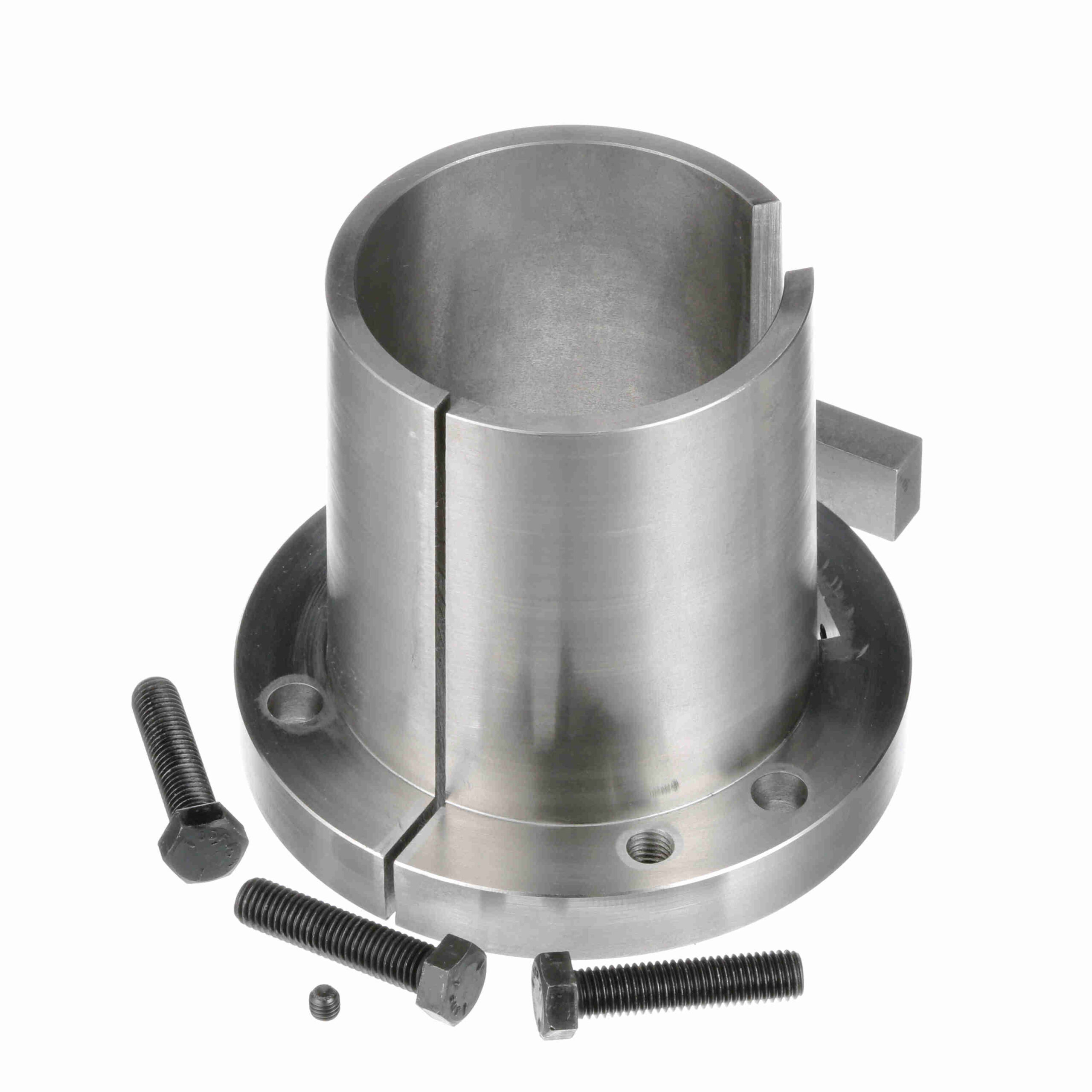

Browning Split Taper Bushing – Inch Bore Type – U1 2 15/16
$1,692.94
Out of stock
Out of stock
| Length Through Bore (in): | 7.125 in | Wrench Torque (in-lb): | 1, 680 |
|---|---|---|---|
| Compatible Bore Size [Max] (in): | 2.9375 in | Model Name: | U1_Type1_BushingMaster |
| Product Type: | Split Taper Bushing | Bore Size (in): | 2.9375 in |
| Material: | Ductile Iron or Gray Iron | Cap Screws (Size): | 5/8 x 2 3/4 |
| Total Length (in): | 7.125 in | Bushing Type: | U1 |
| Outside Diameter (in): | 8.375 in | Keyseat: | 3/4 x 3/8 |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| Screw Length: | 2.75 | Flange Thickness: | 1.125 |
| Includes: | Set Screw, Cap Screws and Ext. Key | Barrel Diameter (Small End): | 5.6485 |
| Mounting Type: | Conventional | Barrel Diameter (Large End): | 6 |
| Bolt Circle Diameter (in): | 7 | Thread Size: | 5/8-11 |
| Flange Type: | Split-Through Flange | UPC: | 662289112227 |
| Weight: | 45.82 LB | Packaged Length: | 12.1 Inches |
| Packaged Width: | 10.6 Inches | Packaged Height: | 10.1 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
