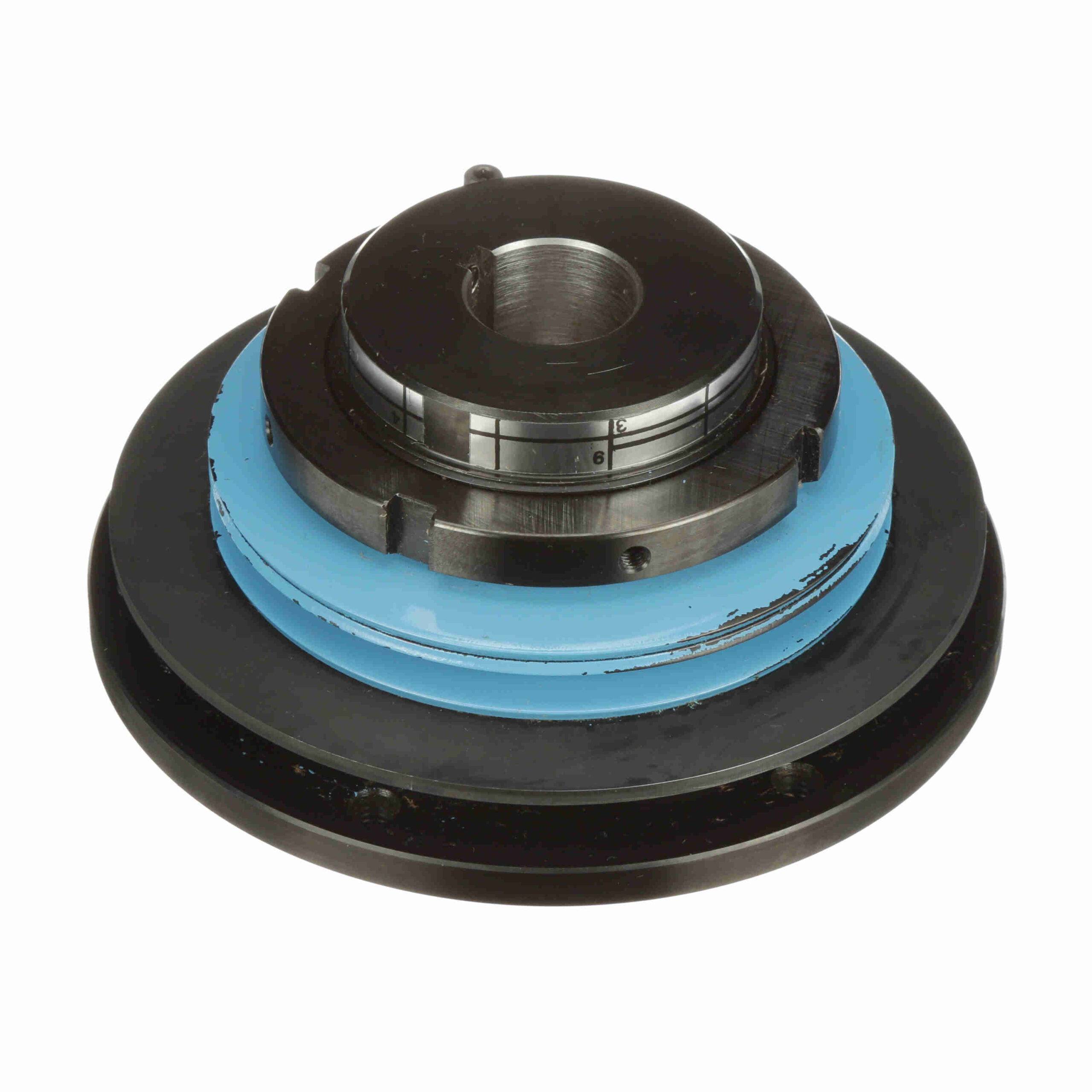

TP50MX 1 15/16

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)

Bore Size (in):	1.9375 in	Disc Spring Color:	Blue
Torque [Min] (N-m):	135.6	Hub Diameter (in):	2.76 in
Bore Shape:	Straight Bore	Sensor Travel:	0.11
Total Length (in):	3.19 in	Detection Method:	Ball Detent
Type:	Torque Overload Devices	Outside Diameter (mm):	158.75 mm
Reset Type:	Automatic	Sensor Plate:	Yes
Nut Diameter (in):	3.86 in	Speed Limit:	300
Clutch size code:	50	Number of Bolt Holes:	6
Spring Diameter:	4.59	Total Length (mm):	81.026 mm
Disconnect Method:	Ball Detent	Series / Model:	TP50M
Nominal Bore (in):	1.9375 in	Outside Diameter (in):	6.25 in
Torq/Pro Sprockets:	STP50	Mounting Bolt Circle Diameter:	5.5
Recovery Style:	Jog	Bolt Hole Thread Size (in):	5/16, 18 in
Unit Accuracy:	0.1	Backlash:	Small
Bore Size (mm):	49.2125 mm	Flange Diameter (in):	4.8 in
Bore (Max) (in):	1.9375 in	Torque Capacity [Min] (lb-ft):	100
Torque Capacity [Max] (lb-ft):	300	Torque [Max] (N-m):	406.8
Product Type:	Torq Pro Torque Limiter	Max RPM:	300
Bore (Min) (in):	1.9375 in	Torque Capacity [Min] (in-lb):	1, 2
Torque Capacity [Max] (in-lb):	3, 6	UPC:	6, 62288E+11
Weight:	13.00 LB	Packaged Length:	6.25 Inches
Packaged Width:	6.25 Inches	Packaged Height:	3.50 Inches
HTC:	8483.60.8000	Country of Origin:	Japan
