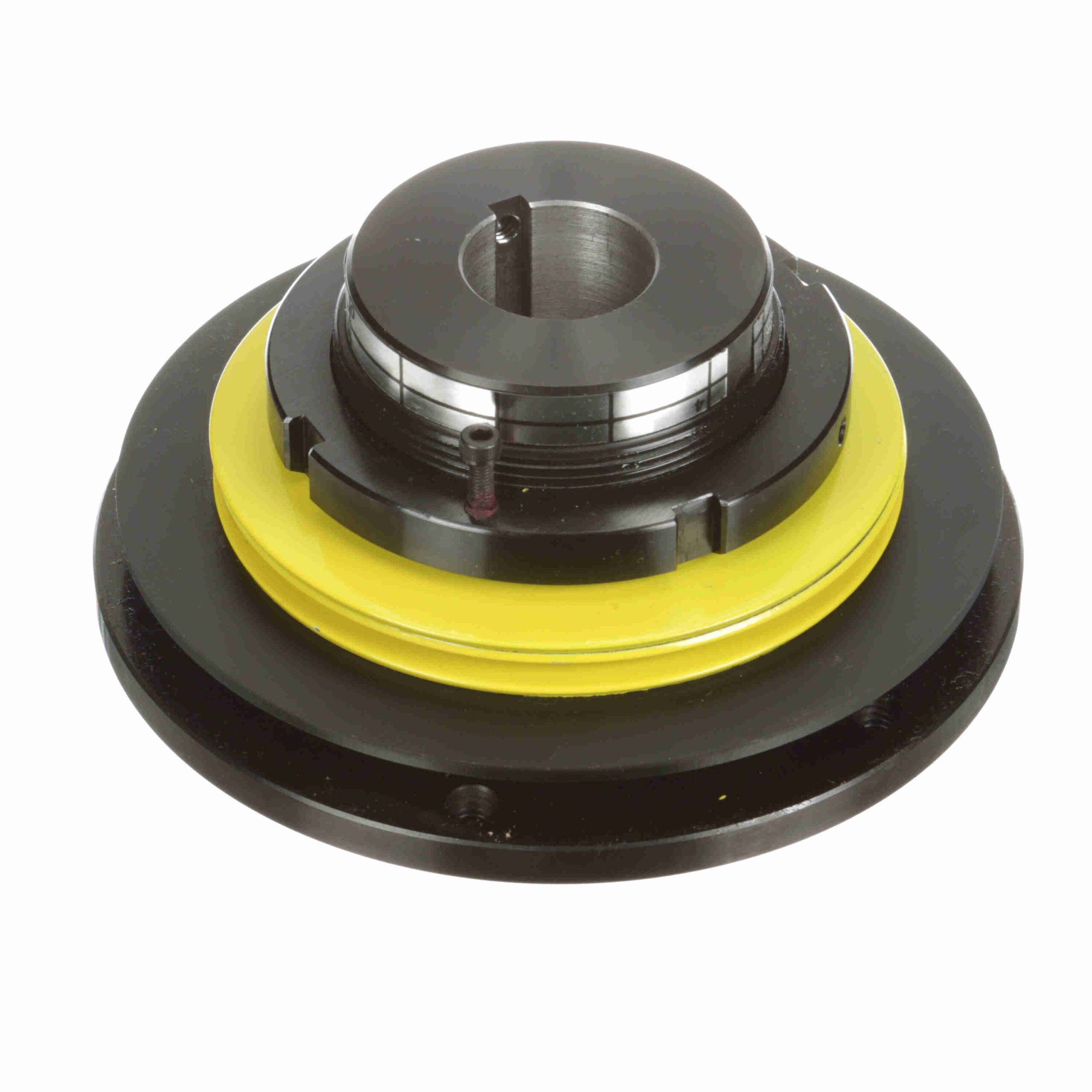

TP50LX 1 1/4

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)

Disc Spring Color:	Yellow	Backlash:	Small
Torq/Pro Sprockets:	STP50	Hub Diameter (in):	2.76 in
Outside Diameter (mm):	158.75 mm	Number of Bolt Holes:	6
Total Length (mm):	81.026 mm	Bolt Hole Thread Size (in):	5/16, 18 in
Torque [Min] (N-m):	67.8	Sensor Plate:	Yes
Clutch size code:	50	Total Length (in):	3.19 in
Nut Diameter (in):	3.86 in	Bore Shape:	Straight Bore
Bore Size (mm):	31.75 mm	Nominal Bore (in):	1.25 in
Spring Diameter:	4.59	Sensor Travel:	0.11
Recovery Style:	Jog	Mounting Bolt Circle Diameter:	5.5
Type:	Torque Overload Devices	Unit Accuracy:	0.1
Reset Type:	Automatic	Disconnect Method:	Ball Detent
Speed Limit:	300	Detection Method:	Ball Detent
Outside Diameter (in):	6.25 in	Series / Model:	TP50L
Bore Size (in):	1.25 in	Torque [Max] (N-m):	146.9
Bore (Max) (in):	1.25 in	Product Type:	Torq Pro Torque Limiter
Torque Capacity [Max] (lb-ft):	108.333333333333	Flange Diameter (in):	4.8 in
Torque Capacity [Min] (lb-ft):	50	Bore (Min) (in):	1.25 in
Torque Capacity [Max] (in-lb):	1, 3	Max RPM:	300
Torque Capacity [Min] (in-lb):	600	UPC:	6, 62288E+11
Weight:	13.00 LB	Packaged Length:	6.25 Inches
Packaged Width:	6.25 Inches	Packaged Height:	3.50 Inches
HTC:	8483.60.8000	Country of Origin:	Japan
