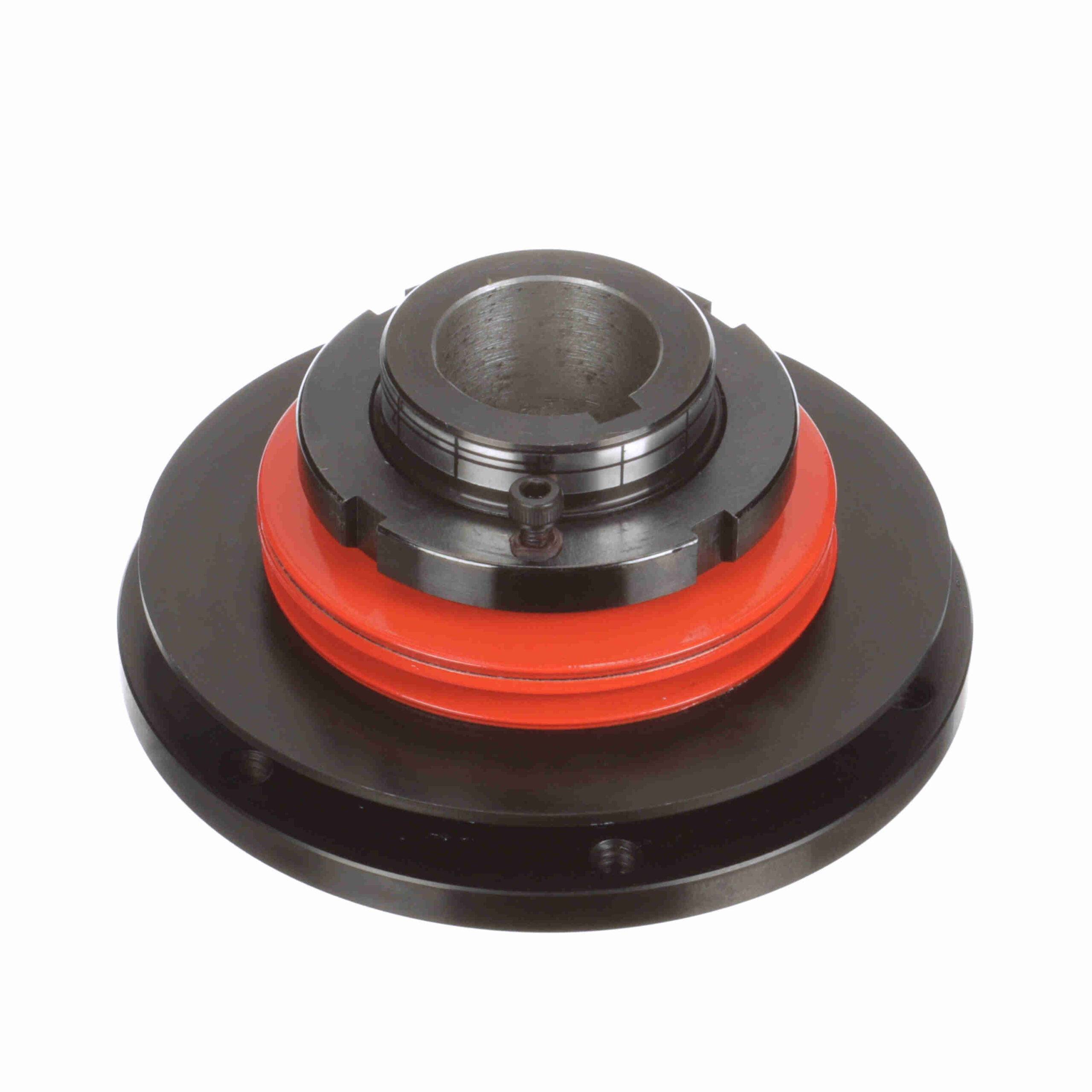

TP30HX 1 1/8

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)

Unit Accuracy:	0.1	Outside Diameter (mm):	112.776 mm
Backlash:	Small	Disc Spring Color:	Orange
Torq/Pro Sprockets:	STP30	Total Length (mm):	59.944 mm
Type:	Torque Overload Devices	Nut Diameter (in):	2.56 in
Detection Method:	Ball Detent	Recovery Style:	Jog
Bore Size (mm):	28.575 mm	Speed Limit:	500
Sensor Travel:	0.08	Bore Shape:	Straight Bore
Bolt Hole Thread Size (in):	1/4, 20 in	Bore Size (in):	1.125 in
Hub Diameter (in):	1.67 in	Total Length (in):	2.36 in
Sensor Plate:	Yes	Spring Diameter:	2.95
Reset Type:	Automatic	Clutch size code:	30
Nominal Bore (in):	1.125 in	Torque [Min] (N-m):	53.675
Mounting Bolt Circle Diameter:	3.94	Outside Diameter (in):	4.44 in
Series / Model:	TP30H	Number of Bolt Holes:	6
Disconnect Method:	Ball Detent	Flange Diameter (in):	3.23 in
Torque [Max] (N-m):	166.675	Bore (Max) (in):	1.125 in
Product Type:	Torq Pro Torque Limiter	Torque Capacity [Min] (lb-ft):	39.5833333333333
Torque Capacity [Max] (lb-ft):	122.916666666667	Torque Capacity [Min] (in-lb):	475
Torque Capacity [Max] (in-lb):	1, 475	Bore (Min) (in):	1.125 in
Max RPM:	500	UPC:	6, 62288E+11
Weight:	4.50 LB	Packaged Length:	4.50 Inches
Packaged Width:	4.50 Inches	Packaged Height:	3.12 Inches
HTC:	8483.60.8000	Country of Origin:	Japan
