- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning Torq/ Pro overload load clutch is release type ball detent style with single position reset
- Accuracy of trip torque within 10% with max torque range 5270 ft/lbs. Easy torque setting and adjusting by tightening or loosing adjusting nuts (bolts)
TP20 .750FB 2SS

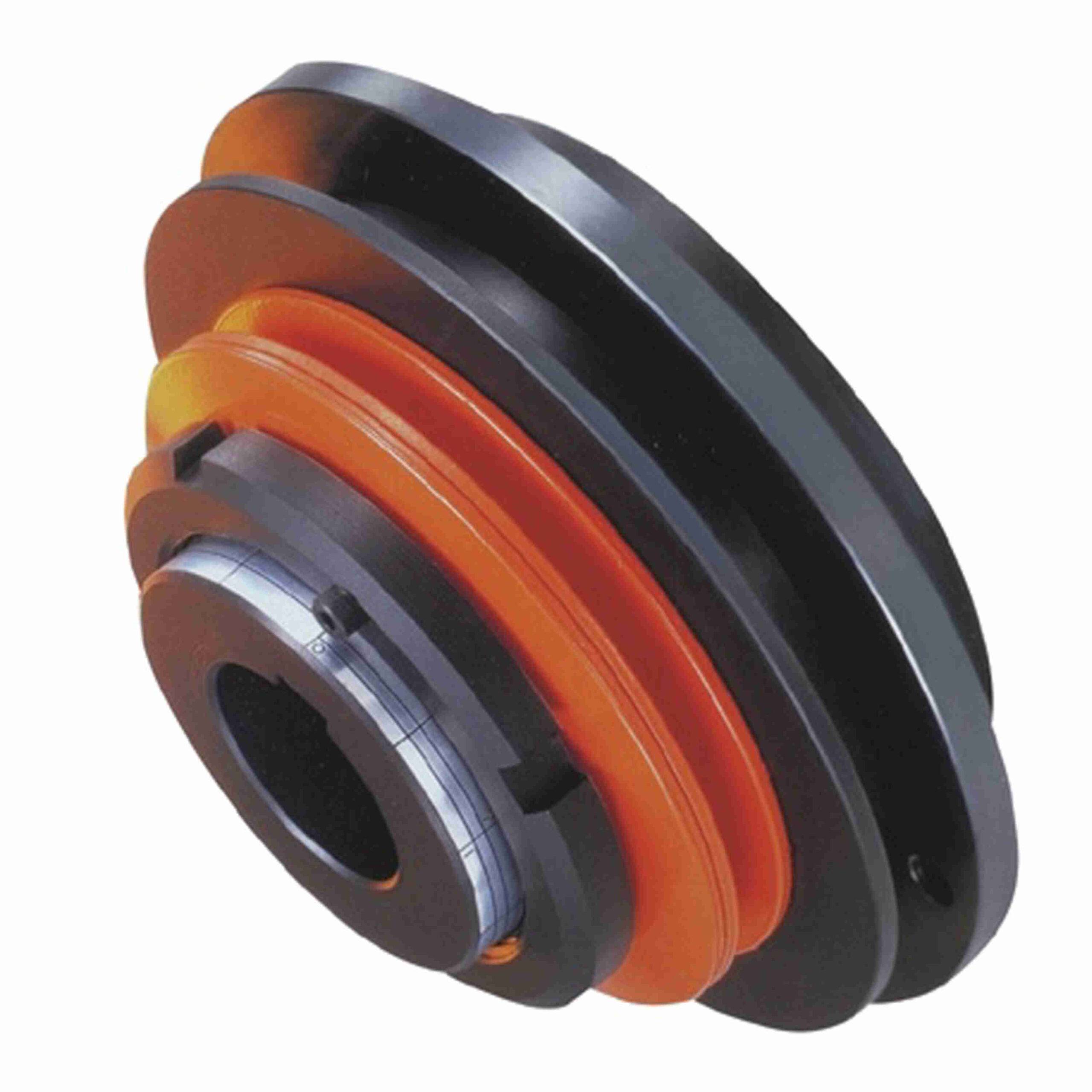

Browning Torq Pro Torque Limiter Model – TP20 – TP20 .750FB 2SS
Out of stock
| Unit Accuracy: | 0.1 | Total Length (in): | 1.85 in |
|---|---|---|---|
| Series / Model: | TP20 | Mounting Bolt Circle Diameter: | 3 |
| Total Length (mm): | 46.99 mm | Speed Limit: | 700 |
| Reset Type: | Automatic | Sensor Travel: | 0.07 |
| Detection Method: | Ball Detent | Backlash: | Small |
| Bore Size (in): | 0.75 in | Recovery Style: | Jog |
| Bore Shape: | Straight Bore | Torq/Pro Sprockets: | STP20 |
| Sensor Plate: | Yes | Nut Diameter (in): | 1.89 in |
| Hub Diameter (in): | 1.18 in | Torque [Min] (N-m): | 9.605 |
| Disc Spring Color: | Orange | Bore Size (mm): | 19.05 mm |
| Outside Diameter (mm): | 88.9 mm | Bolt Hole Thread Size (in): | 10, 24 in |
| Spring Diameter: | 2.13 | Number of Bolt Holes: | 4 |
| Disconnect Method: | Ball Detent | Outside Diameter (in): | 3.5 in |
| Type: | Torque Overload Devices | Flange Diameter (in): | 2.44 in |
| Product Type: | Torq Pro Torque Limiter | Torque [Max] (N-m): | 45.2 |
| Torque Capacity [Min] (in-lb): | 85 | Torque Capacity [Max] (in-lb): | 400 |
| UPC: | 662460556666 | Weight: | 2.00 LB |
| HTC: | 8483.60.8000 | Country of Origin: | Japan |
