- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
TFT-16TC-1

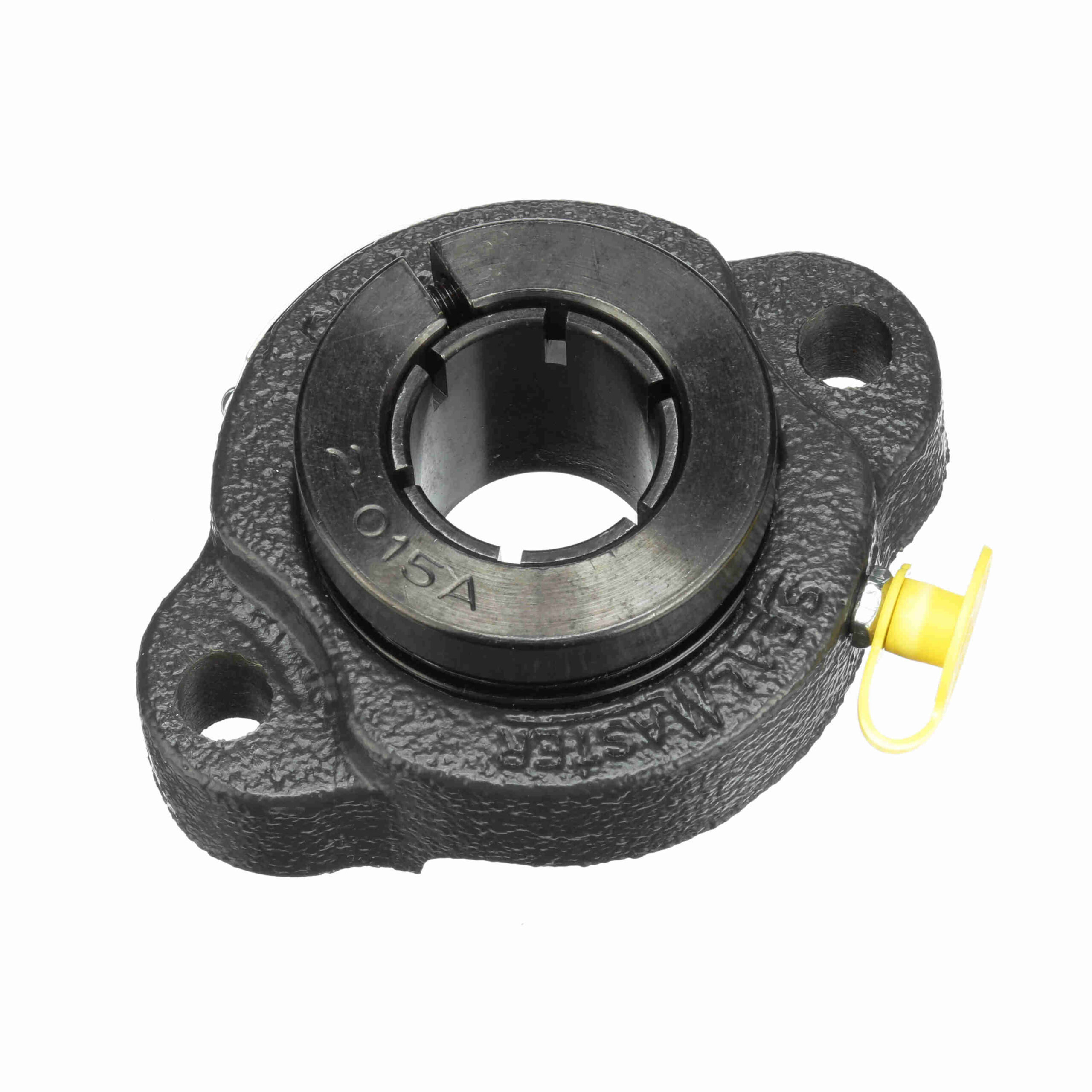

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – TFT-16TC-1
$129.16
Availability: 9 in stock
Availability: 9 in stock
| Housing Material: | Cast Iron | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Expansion: | No | Measure Units: | Inch |
| Rolling Element: | Ball Bearing | Retainer Type: | Land Riding Retainer |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Insert No.: | 2-1TC |
| Seal Type: | Single Lip Contact Seal | Housing Base: | Solid |
| Duty Series: | Standard Duty | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Locking Type: | Concentric | Misalignment: | ±2.0° Misalignment - Static Only |
| Speed (Max): | 6350 | Bore Shape: | Straight |
| Housing Type: | Flange; Two Bolt | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| Bearing Insert Coating: | Black Oxide Coated | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Housing Color: | Gray |
| Replaceable Insert: | Yes | UPC: | 662461007860 |
| Weight: | 1.36 LB | Packaged Length: | 4 Inches |
| Packaged Width: | 1.5 Inches | Packaged Height: | 3.94 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
