- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

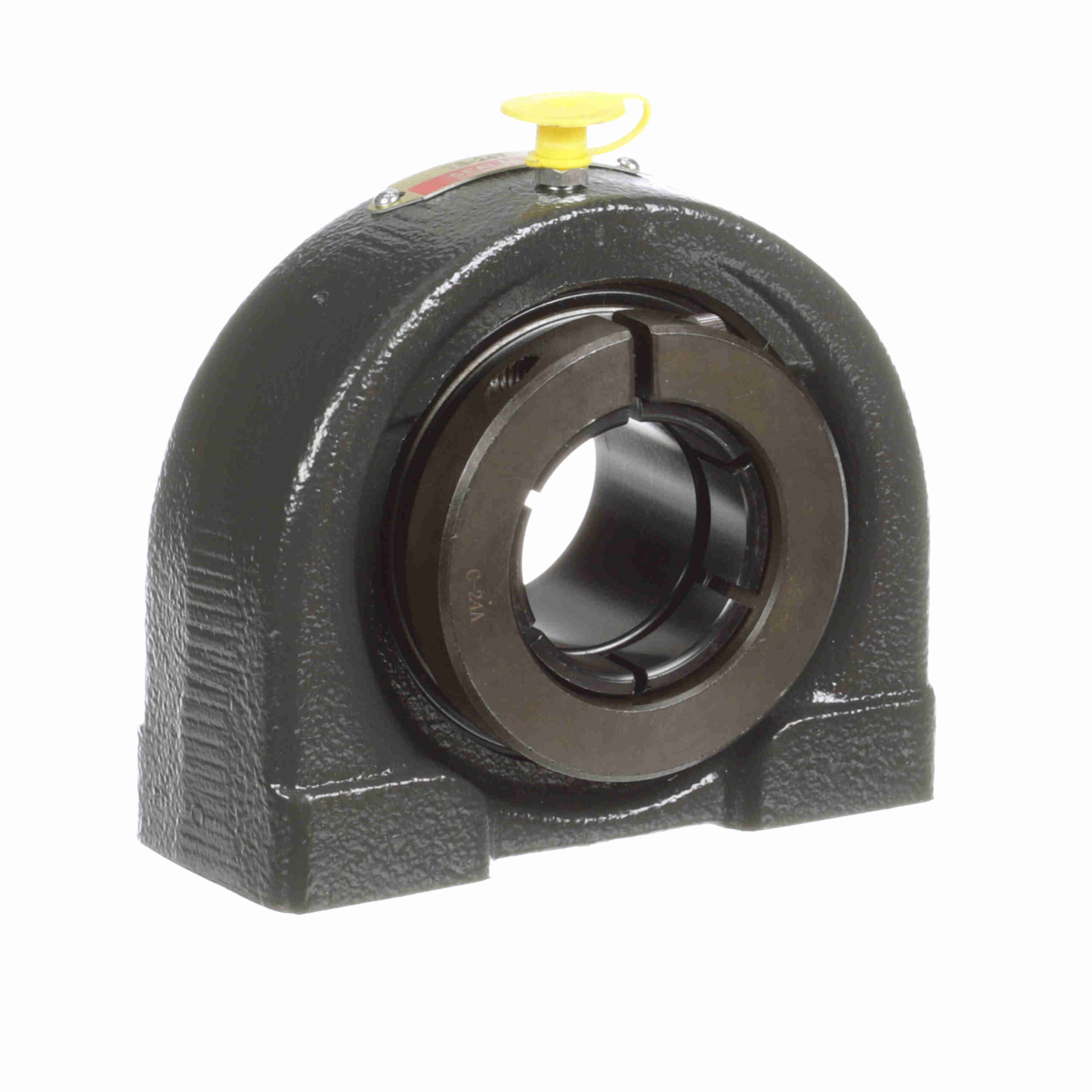

TB-24T
Sealmaster Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – TB-24T
$238.21
Availability: 11 in stock
Availability: 11 in stock
| Maximum Operating Temperature: | 220 °F | Housing Base: | Solid |
|---|---|---|---|
| Duty Series: | Standard Duty | Rolling Element: | Ball Bearing |
| Expansion: | No | Speed (Max): | 5850 |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Insert No.: | 2-18T |
| Housing Material: | Cast Iron | Housing Type: | Pillow Block; Tapped Base |
| Seal Type: | Felt Labyrinth Seal | Measure Units: | Inch |
| Retainer Type: | Land Riding Retainer | Radial Dynamic Load Capacity (lb): | 7, 340 |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Relubricatable: | Yes | Locking Type: | Concentric |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±2.0° Misalignment - Static Only |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Internal Clearance: | Standard |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide Coated |
| Replaceable Insert: | Yes | Radial Static Load Capacity (lb): | 4, 467 |
| Grease Fitting Thread Size: | 1/4-28 | UPC: | 662461031070 |
| Weight: | 5.33 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
