- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
TB-19T

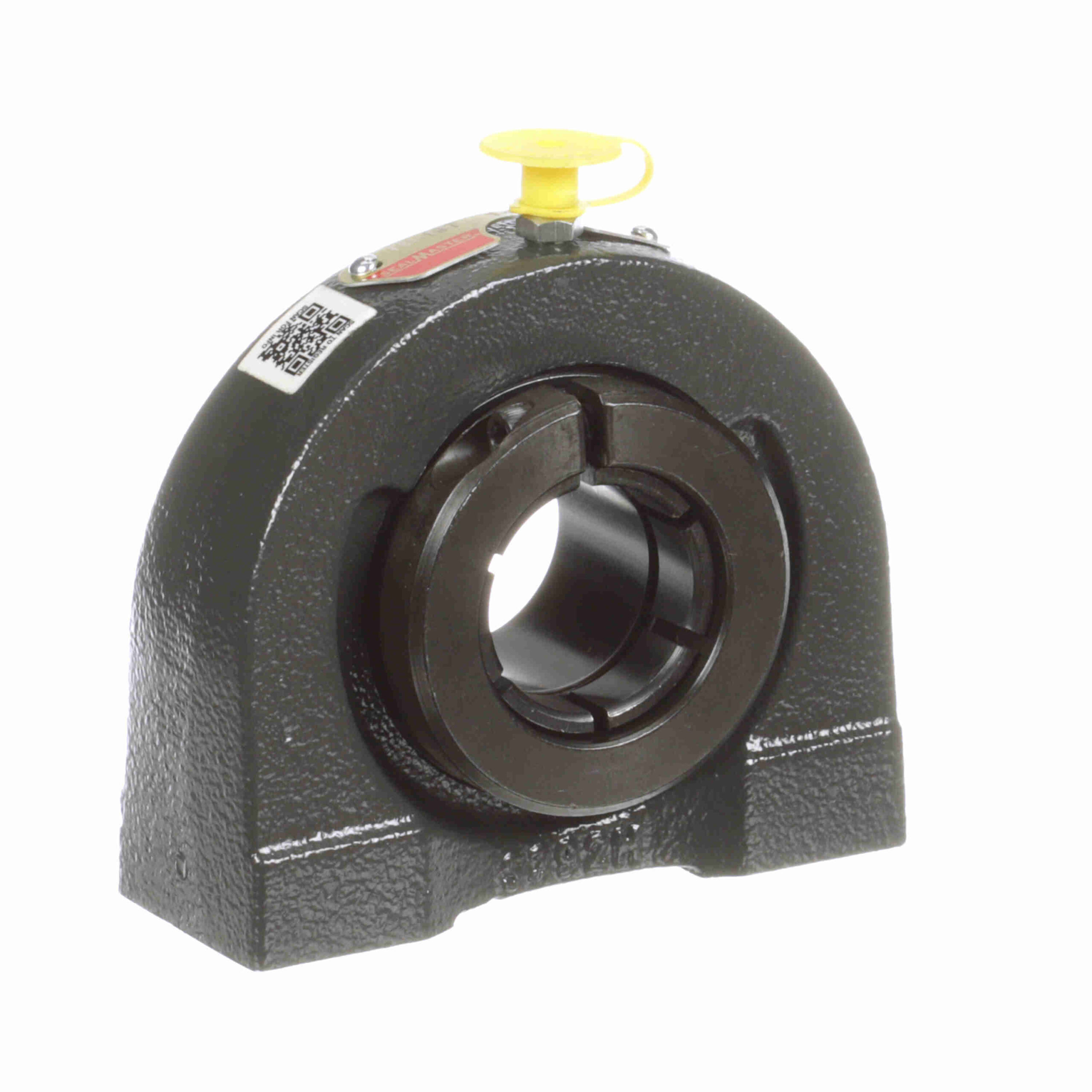

Sealmaster Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – TB-19T
$176.38
Out of stock
Out of stock
| Housing Base: | Solid | Expansion: | No |
|---|---|---|---|
| Housing Material: | Cast Iron | Rolling Element: | Ball Bearing |
| Housing Type: | Pillow Block; Tapped Base | Maximum Operating Temperature: | 220 °F |
| Seal Type: | Felt Labyrinth Seal | Insert No.: | 2-13T |
| Speed (Max): | 7600 | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Retainer Type: | Land Riding Retainer |
| Duty Series: | Standard Duty | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±2.0° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Locking Type: | Concentric | Housing Construction: | One Piece |
| Bore Shape: | Straight | Internal Clearance: | Standard |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Relubricatable: | Yes |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| End Cap: | No | Misalignment Type: | Static Only |
| Platform: | Gold Line Ball Bearing | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated | Radial Static Load Capacity (lb): | 2, 567 |
| Grease Fitting Thread Size: | 1/4-28 | UPC: | 662461031032 |
| Weight: | 3.23 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 4.56 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
