- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
T65LX 1 3/4

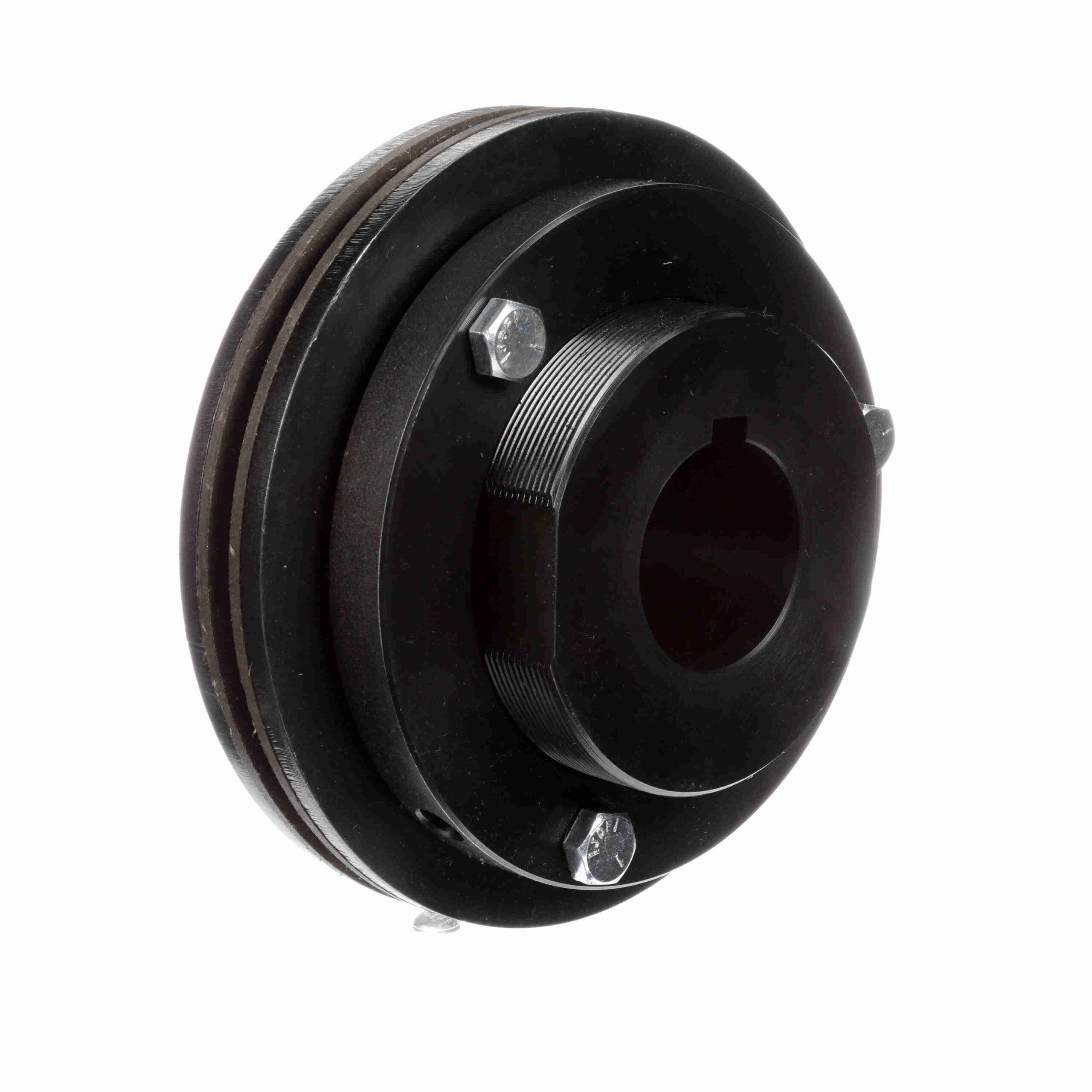

Browning Torque Limiter Model – T65L – T65LX 1 3/4
$1,152.09
Out of stock
Out of stock
| Total Length (in): | 3.625 in | Unit Accuracy: | 0.25 |
|---|---|---|---|
| F (2 Spring): | 1.5 | Outside Diameter (mm): | 165.1 mm |
| Reset Type: | Automatic | Series / Model: | T65L |
| Torque [Max] (in-Ibs) (1 Spring): | 4, 800 | F (1 Spring): | 1.375 |
| Bore Shape: | Straight Bore | Torque [Max] (in-Ibs) (2 Spring): | 8, 800 |
| Recovery Style: | Automatic | Disconnect Method: | Friction Pad |
| Sprocket: | T65L | Backlash: | Zero |
| Total Length (mm): | 92.075 mm | Bore Size (mm): | 44.45 mm |
| Detection Method: | Friction Pad | Type: | Torque Overload Devices |
| Sensor Plate: | No | Outside Diameter (in): | 6.5 in |
| Bore Size (in): | 1.75 in | Max RPM: | 1, 000 |
| Torque [Max] (N-m): | 542.4 | Product Type: | Torque Limiter |
| Bore (Max) (in): | 1.75 in | Bore (Min) (in): | 1.75 in |
| Torque Capacity [Min] (lb-ft): | 0 | Torque Capacity [Max] (lb-ft): | 733.333333333333 |
| Torque Capacity [Max] (in-lb): | 4, 800 | Bore Type: | Finished w/ Keyway |
| Minimum Sprocket Teeth: | Finished w/ Keyway |
