- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
T55LX 1 3/8

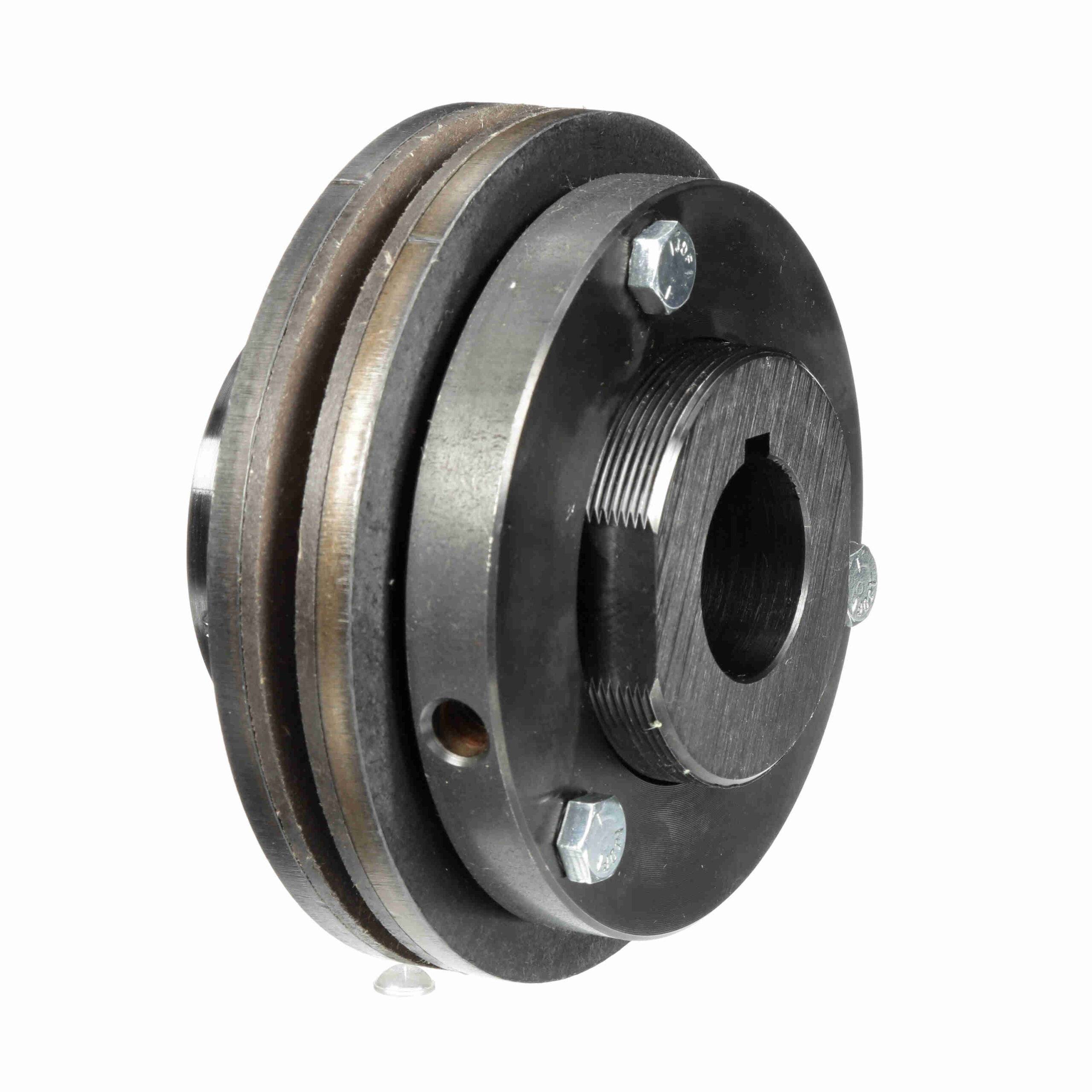

Browning Torque Limiter Model – T55L – T55LX 1 3/8
$1,095.33
Out of stock
Out of stock
| Sensor Plate: | No | Unit Accuracy: | 0.25 |
|---|---|---|---|
| Sprocket: | T55L | Detection Method: | Friction Pad |
| Outside Diameter (mm): | 139.7 mm | Torque [Max] (in-Ibs) (2 Spring): | 6, 800 |
| Outside Diameter (in): | 5.5 in | Type: | Torque Overload Devices |
| Backlash: | Zero | Bore Size (in): | 1.375 in |
| Total Length (mm): | 82.55 mm | Recovery Style: | Automatic |
| F (1 Spring): | 1.25 | Bore Size (mm): | 34.925 mm |
| Bore Shape: | Straight Bore | Torque [Max] (in-Ibs) (1 Spring): | 3, 800 |
| Total Length (in): | 3.25 in | F (2 Spring): | 1.375 |
| Disconnect Method: | Friction Pad | Reset Type: | Automatic |
| Series / Model: | T55L | Product Type: | Torque Limiter |
| Torque [Max] (N-m): | 429.4 | Max RPM: | 1, 000 |
| Bore (Min) (in): | 1.375 in | Torque Capacity [Min] (lb-ft): | 0 |
| Torque Capacity [Max] (lb-ft): | 566.666666666667 | Bore (Max) (in): | 1.375 in |
| Torque Capacity [Max] (in-lb): | 3, 800 | Bore Type: | Finished w/ Keyway |
| Minimum Sprocket Teeth: | #50 (32 Teeth) | 1 | 0 |
