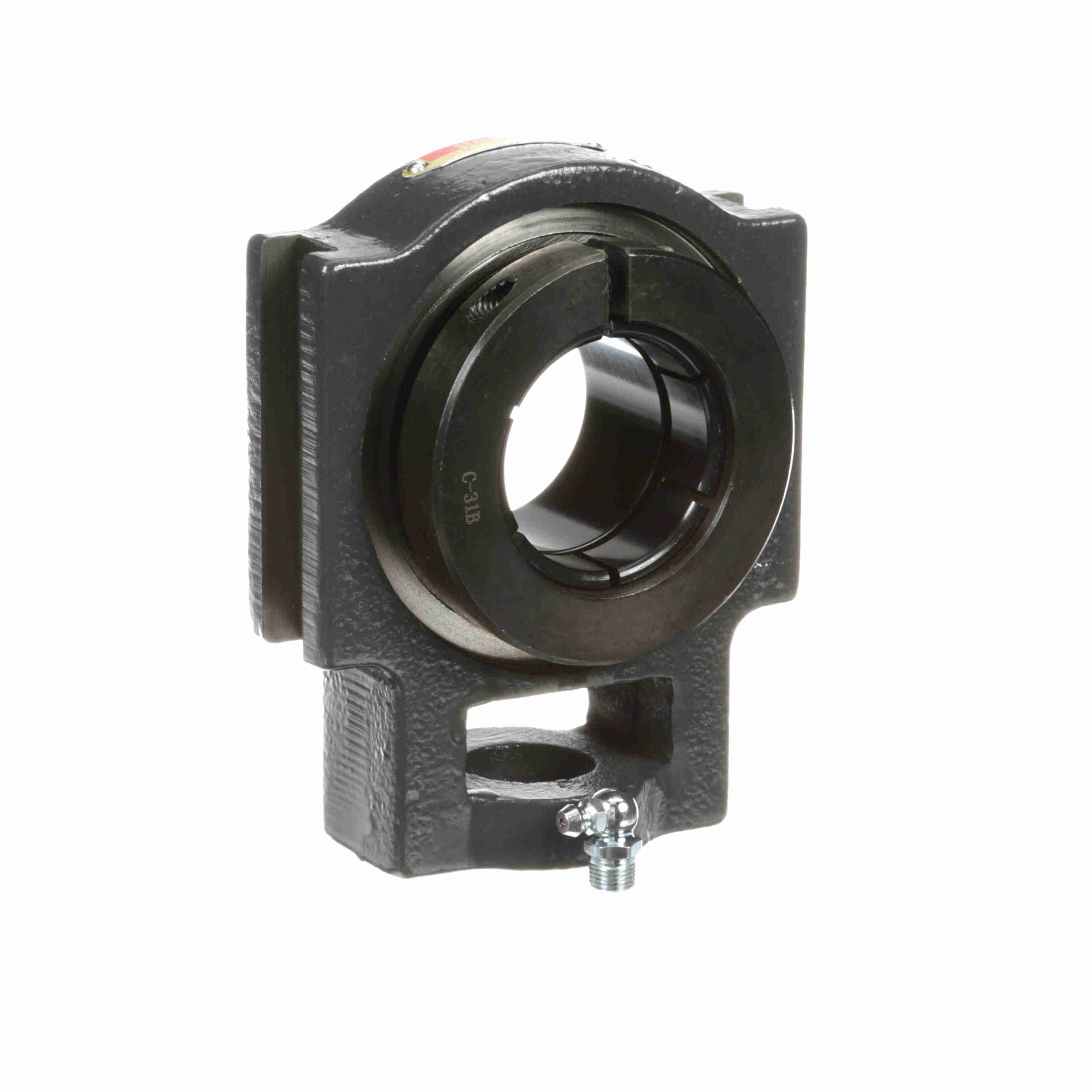

STMH-31T

Cast iron housed, extended inner ring bearing with ball riding nylon retainer
Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
Skwezloc® Concentric locking for near perfect concentricity
Single lip contact seal and flinger
Supplied sealed for life with optional lubrication fitting in the box

Seal Type:	Single Lip Contact Seal with Flinger	Rolling Element:	Ball Bearing
Insert Material:	52100 Bearing Steel, Black Oxided	Measure Units:	Inch
Internal Clearance:	Standard	Housing Construction:	One Piece
Radial Dynamic Load Capacity (lb):	7, 889 lb	Misalignment:	±2.0° Misalignment - Static Only
Bore Shape:	Straight	Bearing Insert Coating:	Black Oxide Coated
End Cap:	No	Misalignment Type:	Static Only
Outer Ring Land Profile:	Standard	Housing Color:	Gray
Replaceable Insert:	Yes	Platform:	Gold Line Ball Bearing
Radial Static Load Capacity (lb):	5, 216 lb	Series:	ST
Unit Type:	Side Mount	Component Description:	Take Up Unit with Frame
Housing Style:	Take-Up Assembly	Maximum Speed (RPM):	3000 rpm
Fixed vs. Expansion:	Fixed	Housing Material:	Cast Iron
Duty/Series:	Standard Duty	Locking Type:	Concentric
Housing Type:	Take-Up Assembly, Wide Slot	Lubrication Type:	Lithium Complex NLGI 2 Grease
Retainer Type:	Land Riding Retainer	Ability to Relubricate:	Yes
Insert Number:	MH-31T	Inner Race Heat Treat Method:	Zone-Hardened
Maximum Operating Temperature (F):	220 °F	UPC:	662461000000
Weight:	6.12 LB	Packaged Length:	5.19 Inches
Packaged Width:	2.31 Inches	Packaged Height:	7.81 Inches
HTC:	8483.20.4040	Country of Origin:	Mexico
