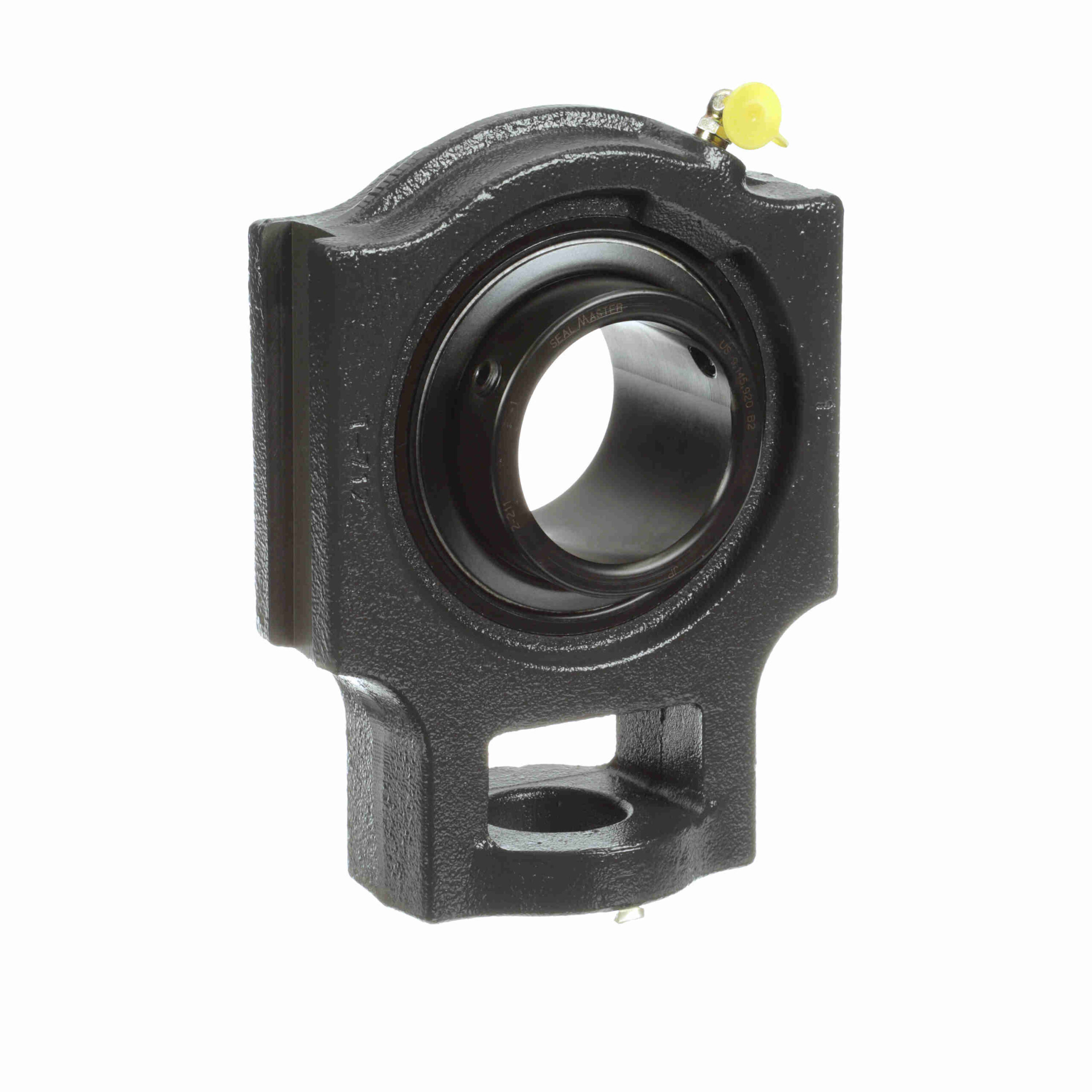

ST-43

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Seal Type:	Felt Labyrinth Seal	Insert Material:	52100 Bearing Steel, Black Oxided
Rolling Element:	Ball Bearing	Measure Units:	Inch
Internal Clearance:	Standard	Bore Shape:	Straight
Housing Construction:	One Piece	Radial Dynamic Load Capacity (lb):	13, 971 lb
Misalignment:	±2.0° Misalignment - Static Only	Bearing Insert Coating:	Black Oxide Coated
Misalignment Type:	Static Only	Platform:	Gold Line Ball Bearing
End Cap:	No	Outer Ring Land Profile:	Standard
Replaceable Insert:	Yes	Housing Color:	Gray
Series:	ST	Unit Type:	Side Mount
Component Description:	Take Up Bearing Only	Housing Style:	Take-up Blocks
Housing Material:	Cast Iron	Maximum Speed (RPM):	2500 rpm
Housing Type:	Take-Up Block, Wide Slot	Lubrication Type:	Lithium Complex NLGI 2 Grease
Duty/Series:	Standard Duty	Locking Type:	Setscrew
Fixed vs. Expansion:	Fixed	Retainer Type:	Land Riding Retainer
Maximum Operating Temperature (F):	220 °F	Insert Number:	2-211
Inner Race Heat Treat Method:	Zone-Hardened	Ability to Relubricate:	Yes
UPC:	662461000000	Weight:	18.50 LB
Packaged Length:	10.38 Inches	Packaged Width:	6.5 Inches
Packaged Height:	3 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
