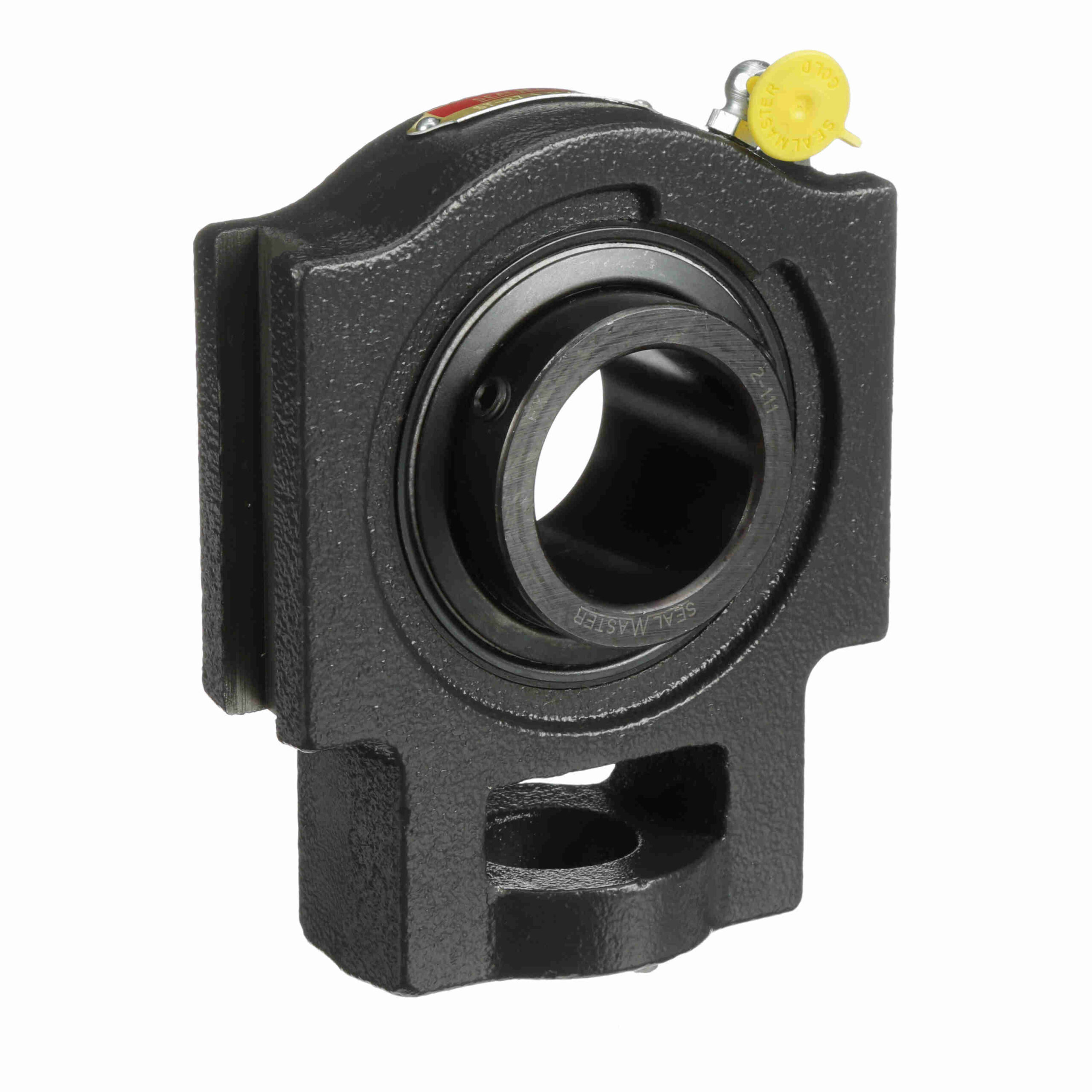

ST-27

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Retainer Type:	Land Riding Retainer	Seal Type:	Felt Labyrinth Seal
Rolling Element:	Ball Bearing	Insert Material:	52100 Bearing Steel; Black Oxided
Expansion:	No	Duty Series:	Standard Duty
Housing Type:	Take-Up Block; Wide Slot	Speed (Max):	3800
Maximum Operating Temperature:	220 °F	Housing Material:	Cast Iron
Measure Units:	Inch	Insert No.:	2-111
Locking Type:	Setscrew	Relubricatable:	Yes
Bore Shape:	Straight	Lubrication:	Lithium Complex NLGI 2 Grease
Internal Clearance:	Standard	Frame Type:	Center Pull Wide Slot
Radial Dynamic Load Capacity (lb):	7, 901	Inner-Race Heat-Treat Method:	Zone-Hardened
Housing Construction:	One Piece	Misalignment:	±2.0° Misalignment - Static Only
End Cap:	No	Platform:	Gold Line Ball Bearing
Replaceable Insert:	Yes	Misalignment Type:	Static Only
Bearing Insert Coating:	Black Oxide Coated	Outer Ring Land Profile:	Standard
Housing Color:	Gray	Series:	ST
Unit Type:	Side Mount	Component Description:	Take Up Bearing Only
UPC:	662461006238	Weight:	5.96 LB
Packaged Length:	4.63 Inches	Packaged Width:	2.31 Inches
Packaged Height:	7.5 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
