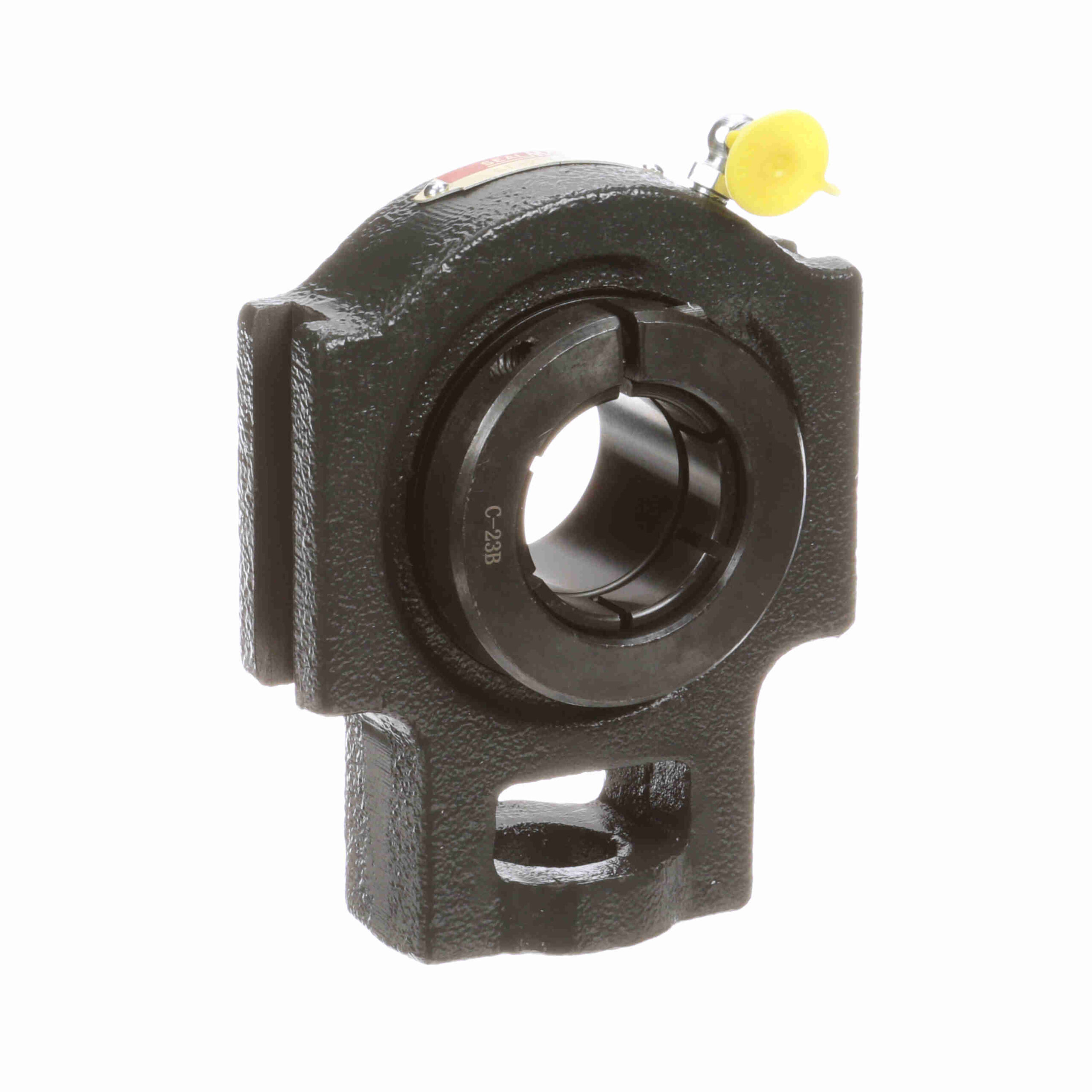

ST-23T

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc? concentric locking for near perfect concentricity
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Speed (Max):	6500	Insert No.:	2-17T
Maximum Operating Temperature:	220 °F	Rolling Element:	Ball Bearing
Insert Material:	52100 Bearing Steel; Black Oxided	Housing Type:	Take-Up Block; Wide Slot
Measure Units:	Inch	Expansion:	No
Housing Material:	Cast Iron	Seal Type:	Felt Labyrinth Seal
Retainer Type:	Land Riding Retainer	Duty Series:	Standard Duty
Relubricatable:	Yes	Misalignment:	±2.0° Misalignment - Static Only
Frame Type:	Center Pull Wide Slot	Locking Type:	Concentric
Inner-Race Heat-Treat Method:	Zone-Hardened	Internal Clearance:	Standard
Bore Shape:	Straight	Housing Construction:	One Piece
Lubrication:	Lithium Complex NLGI 2 Grease	Radial Dynamic Load Capacity (lb):	5, 782
Platform:	Gold Line Ball Bearing	Replaceable Insert:	Yes
Bearing Insert Coating:	Black Oxide Coated	End Cap:	No
Housing Color:	Gray	Outer Ring Land Profile:	Standard
Misalignment Type:	Static Only	Series:	ST
Unit Type:	Side Mount	Component Description:	Take Up Bearing Only
UPC:	662461030875	Weight:	4.13 LB
Packaged Length:	4.38 Inches	Packaged Width:	2.06 Inches
Packaged Height:	6.81 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
