- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SRP-16

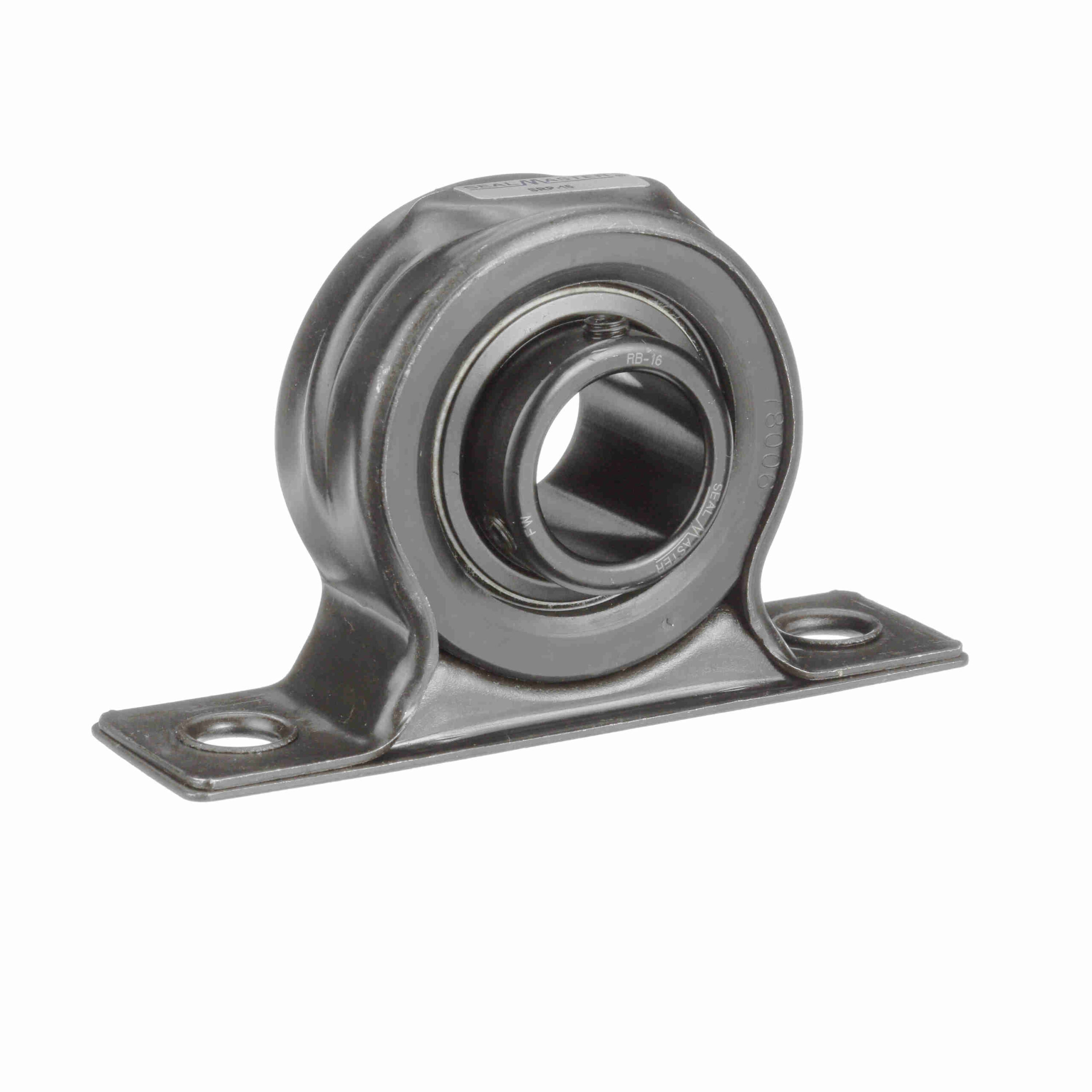

Sealmaster Mounted Stamped Steel Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SRP-16
$86.62
Out of stock
Out of stock
| Retainer Type: | Land Riding Retainer | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Expansion: | No | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Internal Clearance: | Standard | Housing Material: | Stamped Steel |
| Rolling Element: | Ball Bearing | Insert No.: | SRC-16 |
| Housing Type: | Pillow Block; Two Bolt | Speed (Max): | 6350 |
| Measure Units: | Inch | Duty Series: | Standard Duty |
| Seal Type: | Felt Labyrinth Seal | Bore Shape: | Straight |
| Housing Construction: | One Piece | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | Limited - Static Only |
| Relubricatable: | No | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Pilot Configuration: | No Pilot | End Cap: | No |
| Housing Color: | Black Oxided | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated | Platform: | Gold Line Ball Bearing |
| UPC: | 662461005606 | Weight: | 0.94 LB |
| Packaged Length: | 3.19 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 5.25 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
