- 440C Stainless Steel bearing inner and outer ring with setscrew lock
- 304 Passivated stainless steel investment cast housing
- Molded silicone single lip contact seal with 300 series stainless steel flinger
- H1 Food Grade grease
SPS-S224

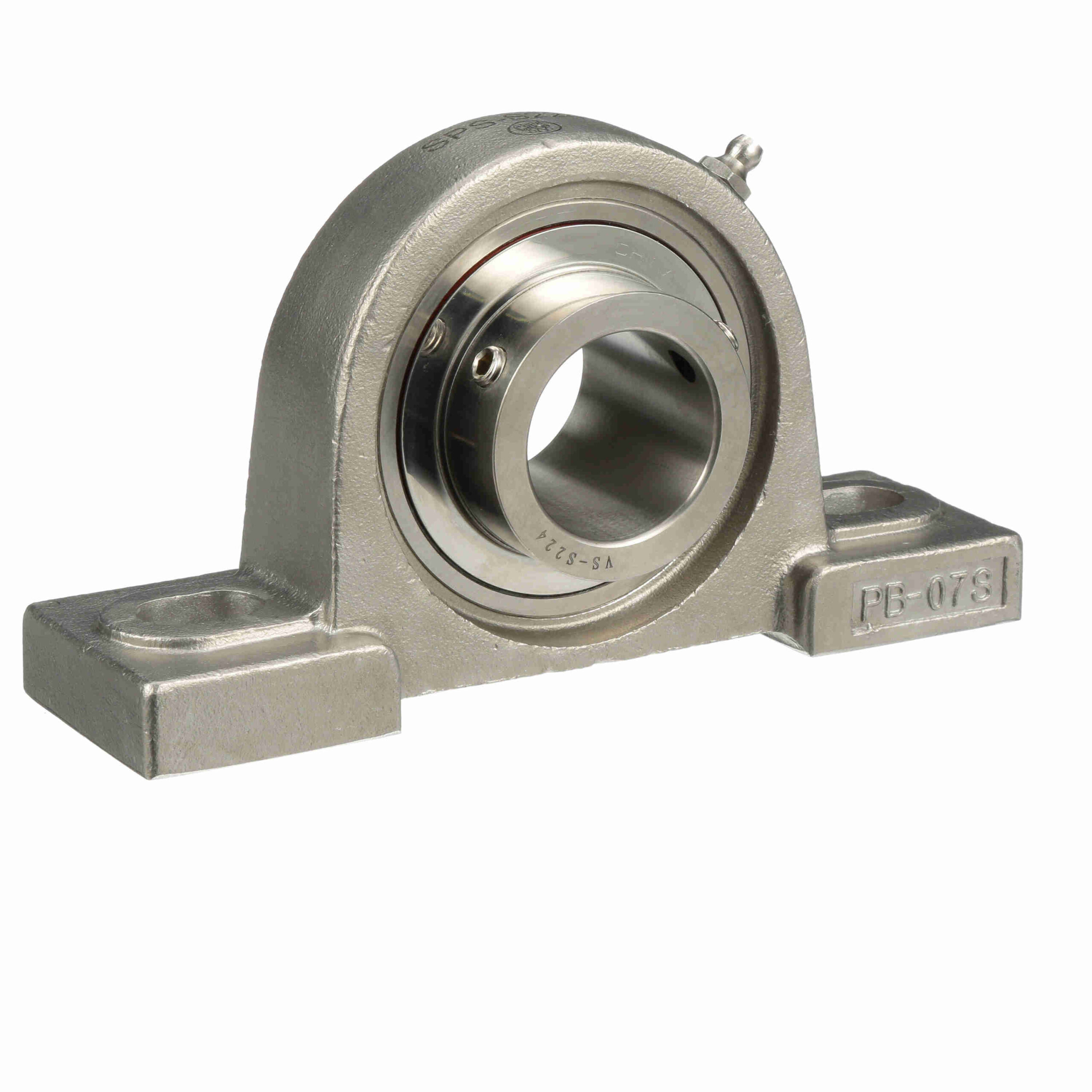

Browning Mounted Stainless Steel Two Bolt Pillow Block Ball Bearing – 400 Series Stainless Steel – SS Setscrew Lock – Corrosion Resistant – SPS-S224
$402.75
Out of stock
Out of stock
| Housing Type: | Pillow Block; Two Bolt | Seal Type: | Single Lip Contact Seal with Flinger |
|---|---|---|---|
| Internal Clearance: | Standard | Duty Series: | Standard Duty |
| Housing Base: | Semi-Solid | Expansion: | No |
| Speed (Max): | 3500 | Housing Material: | Stainless Steel |
| Insert Material: | 400 Series Stainless Steel | Insert No.: | VS-S224 |
| Retainer Type: | Ball Riding Retainer | Measure Units: | Inch |
| Maximum Operating Temperature: | 200 °F | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 340 |
| Lubrication: | NSF H1 Food Grade Grease | Locking Type: | Setscrew |
| Housing Construction: | One Piece | Relubricatable: | Yes |
| Misalignment: | ±1.5° Misalignment - Static Only | Retainer Material: | Stainless Steel Riveted |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Uncoated |
| Misalignment Type: | Static Only | End Cap: | No |
| Replaceable Insert: | Yes | Options: | Corrosion Resistant |
| Platform: | CRES SS | Housing Color: | Silver |
| Radial Static Load Capacity (lb): | 4, 467 | UPC: | 662460400624 |
| Weight: | 4.92 LB | Packaged Length: | 4.63 Inches |
| Packaged Width: | 2.31 Inches | Packaged Height: | 7.5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | China |
