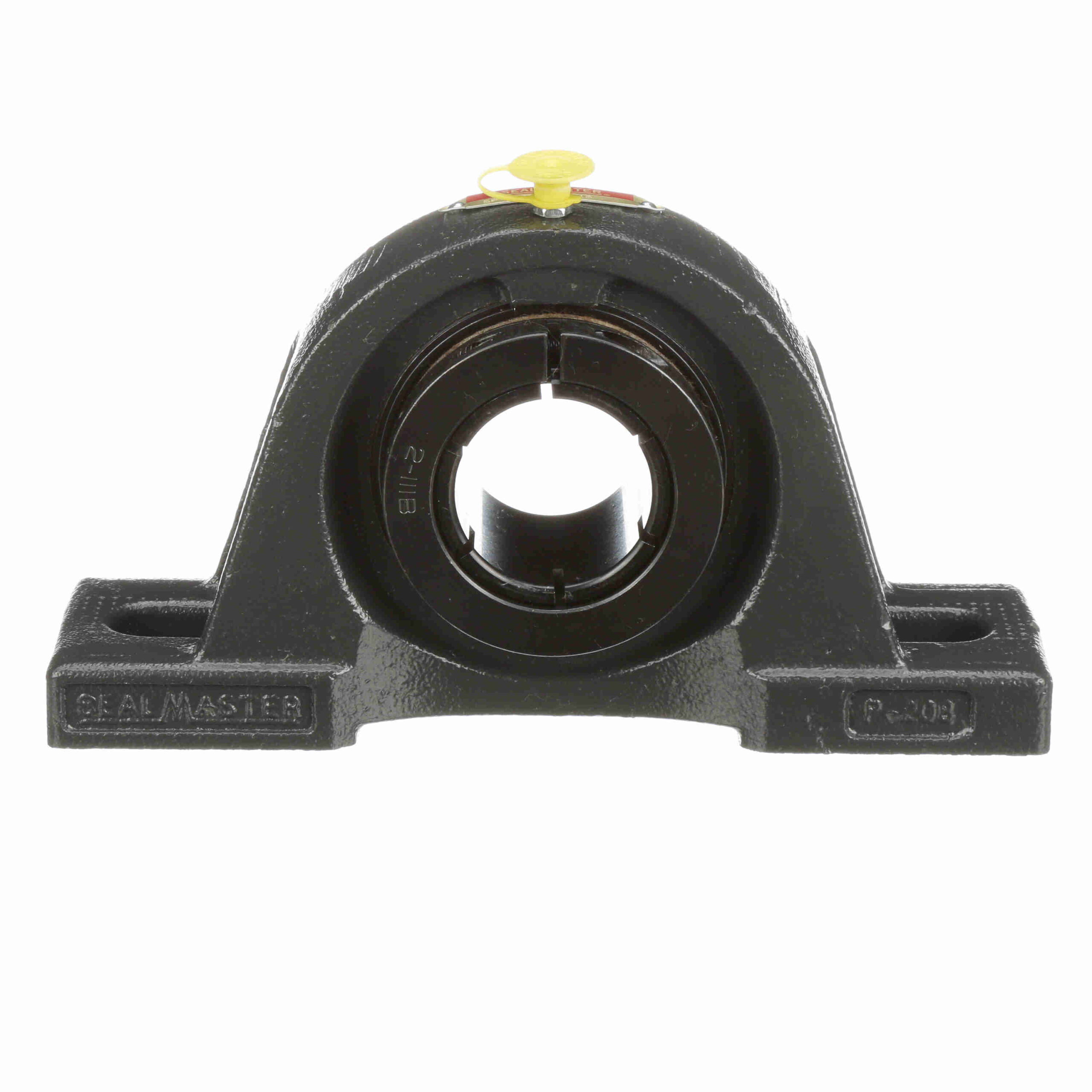

SPM-31T CXU

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Air Handling noise check for quiet operation
Looser than standard housing fit for ease of alignment on lightweight frames
Felt labyrinth seal and flinger for dusty and dirty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Insert Material:	52100 Bearing Steel, Black Oxided	Internal Clearance:	Standard
Rolling Element:	Ball Bearing	Measure Units:	Inch
Housing Base:	Solid	Seal Type:	Felt Labyrinth Seal
Bore Shape:	Straight	Radial Dynamic Load Capacity (lb):	9, 752 lb
Housing Construction:	One Piece	Misalignment:	±2.0° Misalignment - Static Only
Housing Color:	Gray	Options:	Air Handling Housing Fit, Noise Tested
Outer Ring Land Profile:	Standard	End Cap:	No
Bearing Insert Coating:	Black Oxide Coated	Platform:	Air Handling
Misalignment Type:	Static Only	Replaceable Insert:	Yes
Radial Static Load Capacity (lb):	6, 601 lb	Lubrication Type:	Lithium Complex NLGI 2 Grease
Housing Material:	Cast Iron	Housing Style:	Pillow Block
Locking Type:	Concentric	Duty/Series:	Medium Duty
Fixed vs. Expansion:	Fixed	Maximum Speed (RPM):	4500 rpm
Retainer Type:	Land Riding Retainer	Housing Type:	Pillow Block, Two Bolt
Ability to Relubricate:	Yes	Insert Number:	3-115T CXU
Maximum Operating Temperature (F):	220 °F	Inner Race Heat Treat Method:	Zone-Hardened
UPC:	662461000000	Weight:	12.50 LB
Packaged Length:	10.38 Inches	Packaged Width:	6.5 Inches
Packaged Height:	3 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
