- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SPM-23 CXU

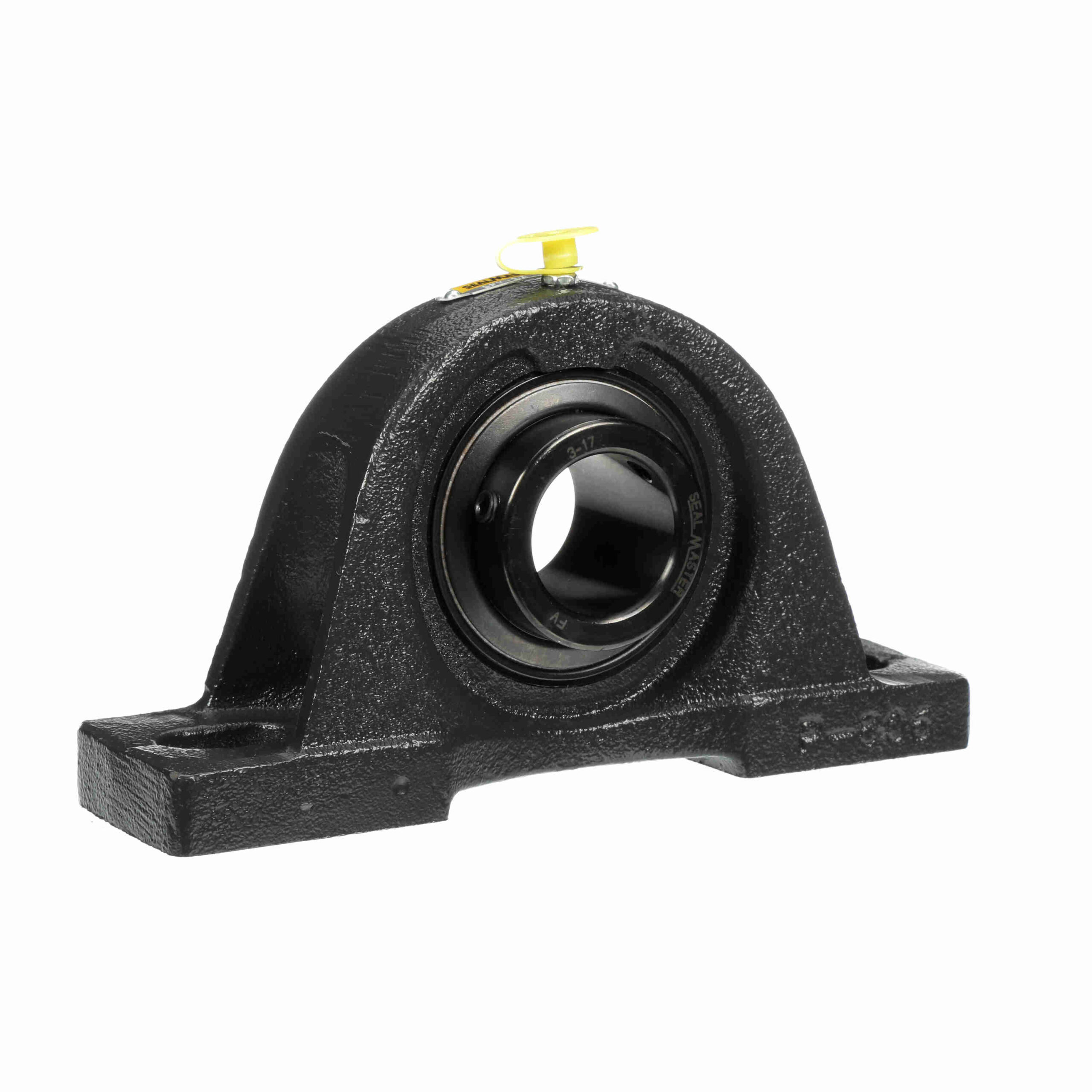

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – Air Handling Housing Fit, Noise Tested – SPM-23 CXU
$258.37
Availability: 5 in stock
Availability: 5 in stock
| Retainer Type: | Land Riding Retainer | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Expansion: | No | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Housing Material: | Cast Iron | Housing Type: | Pillow Block; Two Bolt |
| Maximum Operating Temperature: | 220 °F | Insert No.: | 3-17 CXU |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Speed (Max): | 4150 | Duty Series: | Medium Duty |
| Internal Clearance: | Standard | Housing Base: | Solid |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Locking Type: | Setscrew | Misalignment: | ±2.0° Misalignment - Static Only |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Relubricatable: | Yes |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Color: | Gray |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated |
| Replaceable Insert: | Yes | Options: | Air Handling Housing Fit; Noise Tested |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Platform: | Air Handling | UPC: | 662461008119 |
| Weight: | 7.59 LB | Packaged Length: | 9 Inches |
| Packaged Width: | 5.19 Inches | Packaged Height: | 2.38 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
