- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SPM-19 CXU

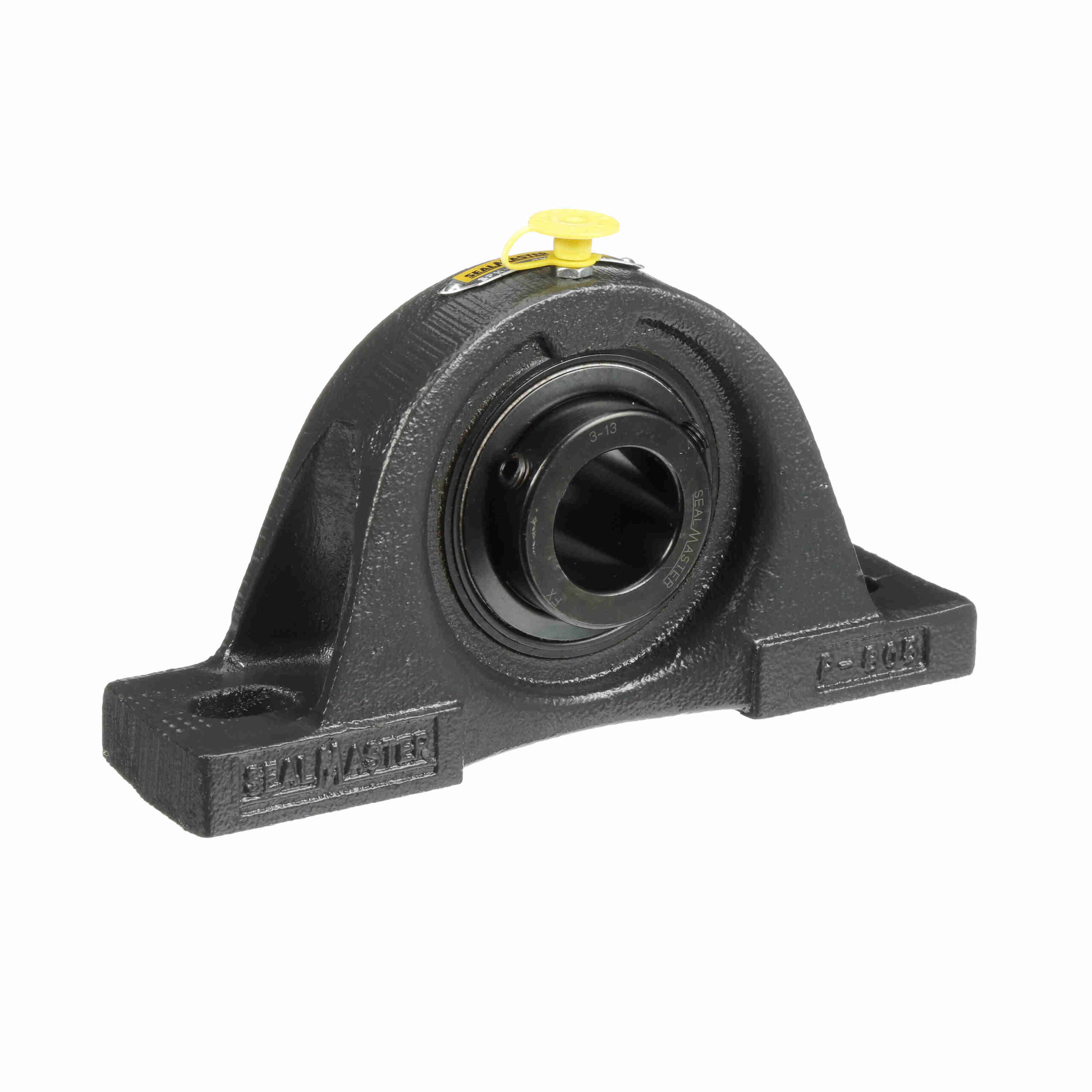

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – Air Handling Housing Fit, Noise Tested – SPM-19 CXU
$286.23
Availability: 2 in stock
Availability: 2 in stock
| Duty Series: | Medium Duty | Expansion: | No |
|---|---|---|---|
| Speed (Max): | 4650 | Internal Clearance: | Standard |
| Housing Type: | Pillow Block; Two Bolt | Housing Base: | Solid |
| Insert No.: | 3-13 CXU | Seal Type: | Felt Labyrinth Seal |
| Measure Units: | Inch | Retainer Type: | Land Riding Retainer |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Maximum Operating Temperature: | 220 °F |
| Housing Material: | Cast Iron | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Color: | Gray |
| Replaceable Insert: | Yes | Options: | Air Handling Housing Fit; Noise Tested |
| Misalignment Type: | Static Only | Platform: | Air Handling |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| End Cap: | No | UPC: | 662461008102 |
| Weight: | 5.41 LB | Packaged Length: | 5.19 Inches |
| Packaged Width: | 2.13 Inches | Packaged Height: | 7.81 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
