- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SK 42 MM

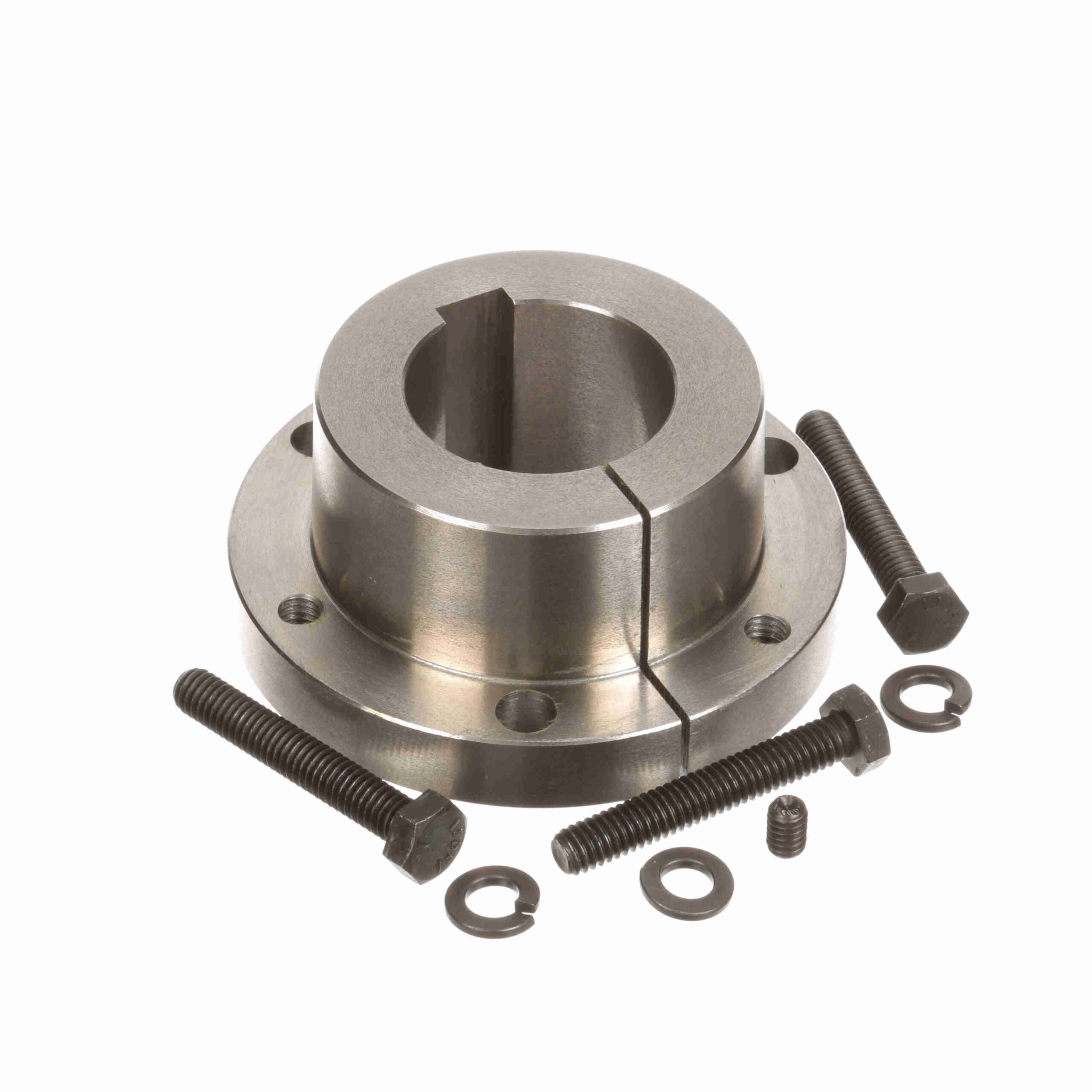

Browning Q-D Bushing – Metric Bore Type – SK 42 MM
$173.58
Out of stock
Out of stock
| Total Length (mm): | 44.45 mm | Torque Capacity (in-lb): | 7, 000 |
|---|---|---|---|
| Wrench Torque (ft.-lbs.): | 15 | Total Length (in): | 1.75 in |
| Mounting Type: | Conventional | Cap Screws (Bolt Circle): | 3.3125 |
| Cap Screws (No.): | 3 | Bore Type: | Metric |
| Bushing Type: | SK | Compatible Bore Size [Max] (mm): | 42 mm |
| Outside Diameter (mm): | 98.425 mm | Keyway: | 10mm x 4mm |
| Length Through Bore (mm): | 44.45 mm | Cap Screws (Size): | 5/16-18 x 2 |
| Product Type: | Q-D Bushing | Model Name: | QD-SK_Bushing_Master |
| Outside Diameter (in): | 3.875 in | Bore Size (mm): | 42 mm |
| Barrel Diameter: | 2.8125 in | Flange Thickness: | 0.5625 in |
| Material: | Ductile Iron - 65-45-73 | Barrel Length: | 1.1875 in |
| UPC: | 662289616473 | Weight: | 2.73 LB |
| Packaged Length: | 4.3 Inches | Packaged Width: | 4.4 Inches |
| Packaged Height: | 2.6 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
