- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SH 24 MM

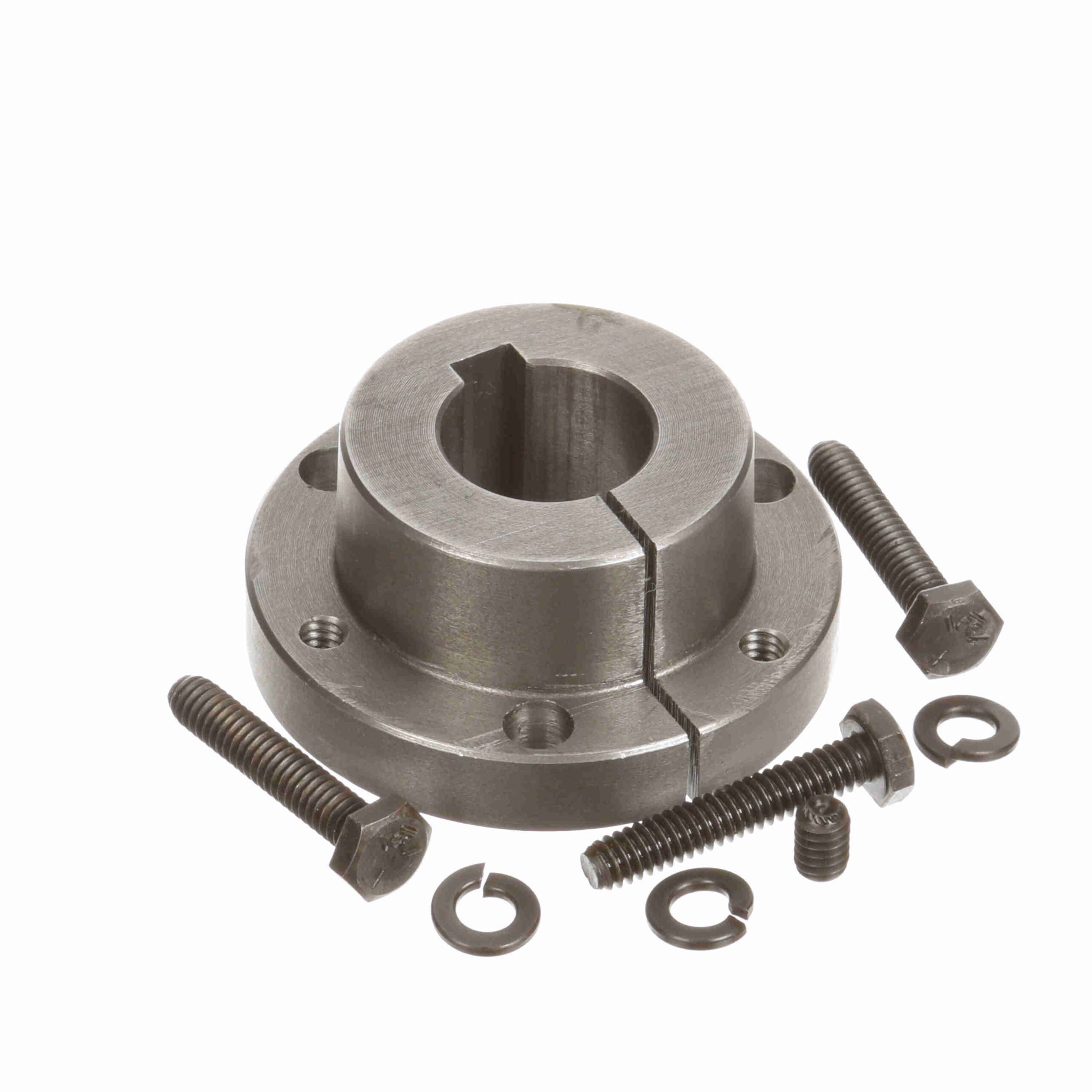

Browning Q-D Bushing – Metric Bore Type – SH 24 MM
$99.21
Out of stock
Out of stock
| Torque Capacity (in-lb): | 3, 500 | Length Through Bore (mm): | 30.48 mm |
|---|---|---|---|
| Bore Type: | Metric | Cap Screws (No.): | 3 |
| Bushing Type: | SH | Wrench Torque (ft.-lbs.): | 9 |
| Mounting Type: | Conventional | Cap Screws (Bolt Circle): | 2.25 |
| Compatible Bore Size [Max] (mm): | 24 mm | Cap Screws (Size): | 1/4-20 x 1 3/8 |
| Keyway: | 8mm x 3.5mm | Product Type: | Q-D Bushing |
| Model Name: | QD-SH_Bushing_Master | Total Length (in): | 1.2 in |
| Outside Diameter (mm): | 68.2625 mm | Total Length (mm): | 30.48 mm |
| Outside Diameter (in): | 2.6875 in | Bore Size (mm): | 24 mm |
| Barrel Diameter: | 1.871 in | Barrel Length: | 0.75 in |
| Flange Thickness: | 0.45 in | Material: | Ductile Iron - 65-45-26 |
| UPC: | 662289616275 | Weight: | 1.44 LB |
| Packaged Length: | 3.9 Inches | Packaged Width: | 3.7 Inches |
| Packaged Height: | 1.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
