- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SH 1 5/8

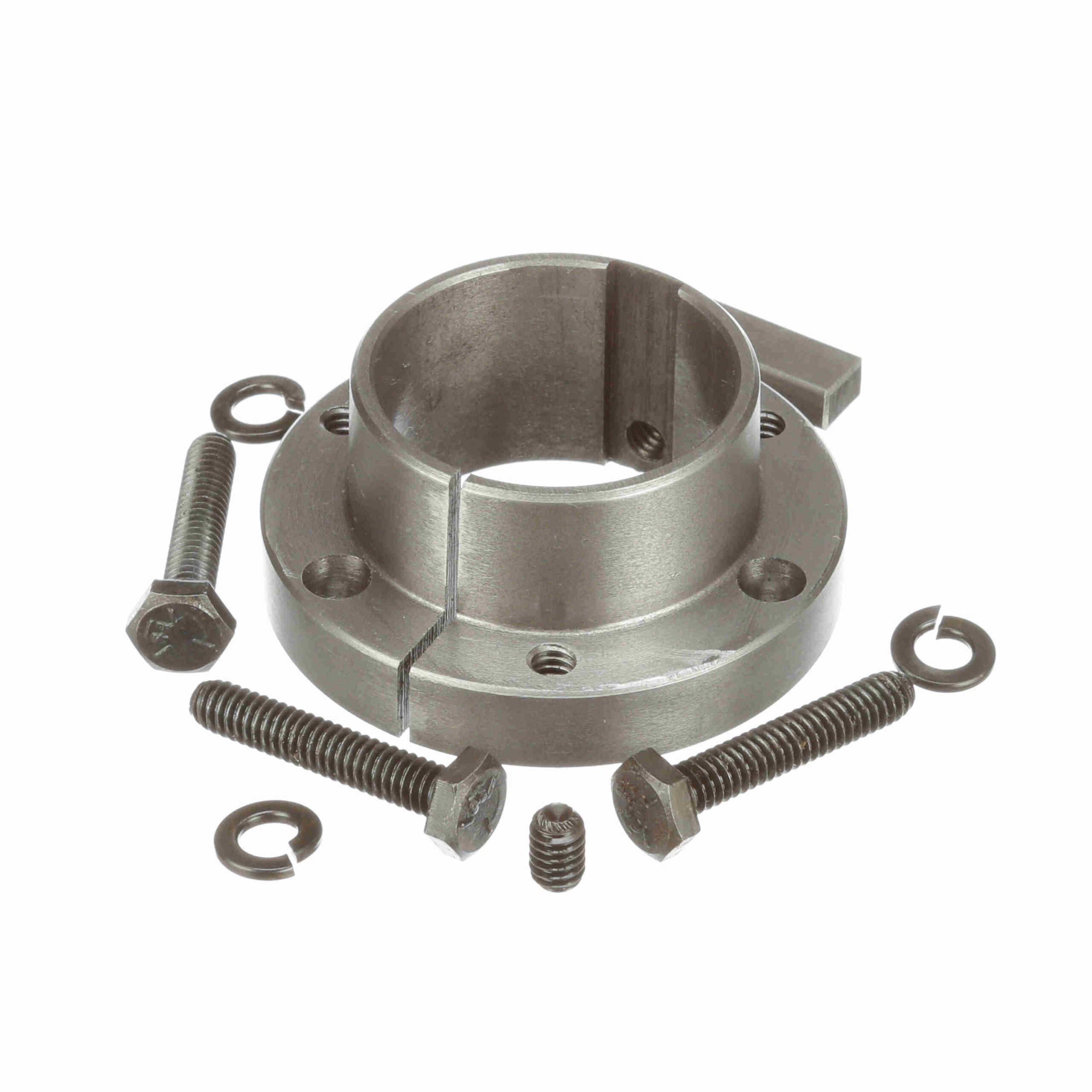

Browning Q-D Bushing – Inch Bore Type – SH 1 5/8
Out of stock
| Wrench Torque (ft.-lbs.): | 9 | Model Name: | QD-SH_Bushing_Master |
|---|---|---|---|
| Torque Capacity (in-lb): | 3, 500 | Compatible Bore Size [Max] (in): | 1.625 in |
| Bushing Type: | SH | Mounting Type: | Conventional |
| Product Type: | Q-D Bushing | Cap Screws (Bolt Circle): | 2.25 |
| Length Through Bore (in): | 1.2 in | Keyway: | 3/8 x 3/16 |
| Outside Diameter (in): | 2.6875 in | Total Length (in): | 1.2 in |
| Cap Screws (No.): | 3 | Bore Type: | Inch |
| Cap Screws (Size): | 1/4-20 x 1 3/8 | Bore Size (in): | 1.625 in |
| Flange Thickness: | 0.45 in | Barrel Length: | 0.75 in |
| Material: | Ductile Iron - 65-45-20 | Barrel Diameter: | 1.871 in |
| UPC: | 662289365593 | Weight: | 0.65 LB |
| Packaged Length: | 3.7 Inches | Packaged Width: | 3.8 Inches |
| Packaged Height: | 1.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
