- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SH 1 1/4

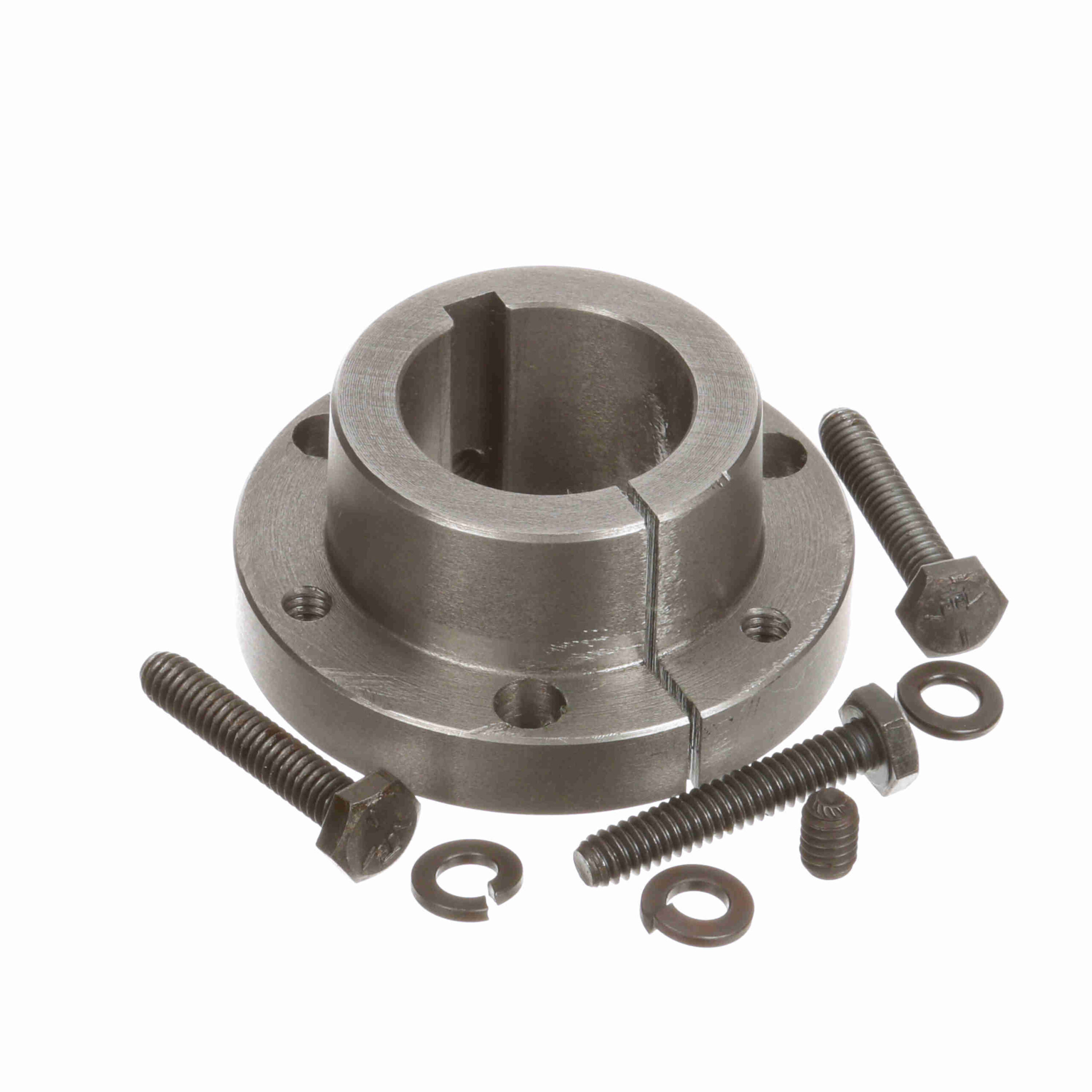

Browning Q-D Bushing – Inch Bore Type – SH 1 1/4
$70.46
Out of stock
Out of stock
| Length Through Bore (in): | 1.2 in | Torque Capacity (in-lb): | 3, 500 |
|---|---|---|---|
| Mounting Type: | Conventional | Total Length (in): | 1.2 in |
| Model Name: | QD-SH_Bushing_Master | Product Type: | Q-D Bushing |
| Cap Screws (No.): | 3 | Wrench Torque (ft.-lbs.): | 9 |
| Outside Diameter (in): | 2.6875 in | Compatible Bore Size [Max] (in): | 1.25 in |
| Cap Screws (Bolt Circle): | 2.25 | Cap Screws (Size): | 1/4-20 x 1 3/8 |
| Keyway: | 1/4 x 1/8 | Bushing Type: | SH |
| Bore Type: | Inch | Bore Size (in): | 1.25 in |
| Flange Thickness: | 0.45 in | Barrel Length: | 0.75 in |
| Material: | Ductile Iron - 65-45-14 | Barrel Diameter: | 1.871 in |
| UPC: | 662289395545 | Weight: | 0.87 LB |
| Packaged Length: | 3.7 Inches | Packaged Width: | 3.9 Inches |
| Packaged Height: | 19.6 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
