- Cast iron housed, extended inner ring bearing with ball riding nylon retainer
- Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Supplied sealed for life with optional lubrication fitting in the box
SFTMH-23

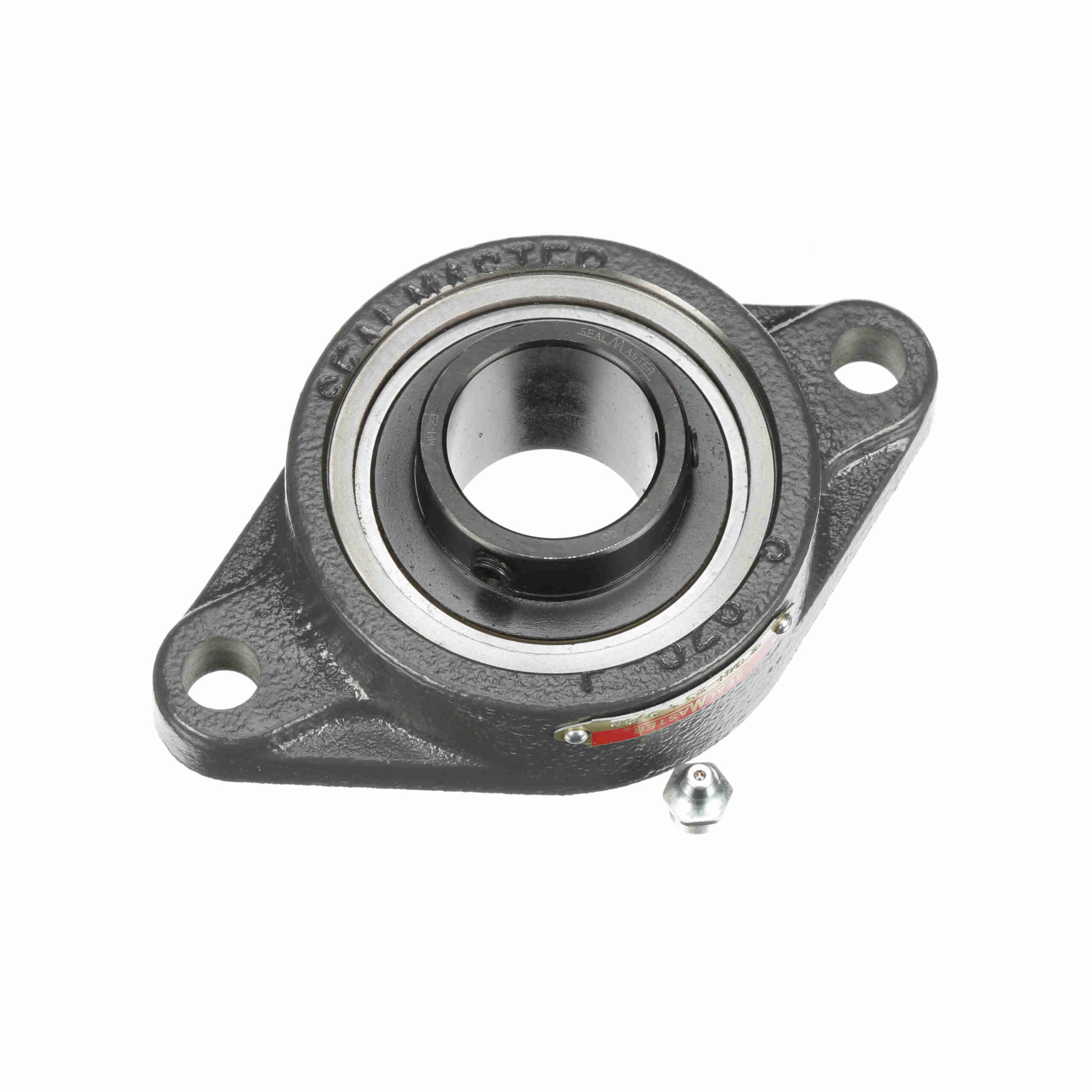

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SFTMH-23
$132.94
Availability: 20 in stock
Availability: 20 in stock
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Black Oxided |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal | Housing Base: | Solid |
| Rolling Element: | Ball Bearing | Pilot Configuration: | No Pilot |
| Bore Shape: | Straight | Internal Clearance: | Standard |
| Misalignment: | ±1.5° Misalignment - Static Only | Housing Construction: | One Piece |
| Radial Dynamic Load Capacity (lb): | 5, 782 lb | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | End Cap: | No |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated |
| Radial Static Load Capacity (lb): | 3, 493 lb | Housing Style: | Flange Block |
| Retainer Type: | Land Riding Retainer | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Setscrew | Housing Material: | Cast Iron |
| Maximum Speed (RPM): | 4000 rpm | Duty/Series: | Standard Duty |
| Housing Type: | Flange, Two Bolt | Fixed vs. Expansion: | Fixed |
| Insert Number: | MH-23 | Maximum Operating Temperature (F): | 220 °F |
| Ability to Relubricate: | Yes | Inner Race Heat Treat Method: | Zone-Hardened |
| UPC: | 662461342794 | Weight: | 2.92 LB |
| Packaged Length: | 5.3 Inches | Packaged Width: | 5.1 Inches |
| Packaged Height: | 2.1 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
