- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SFT-9

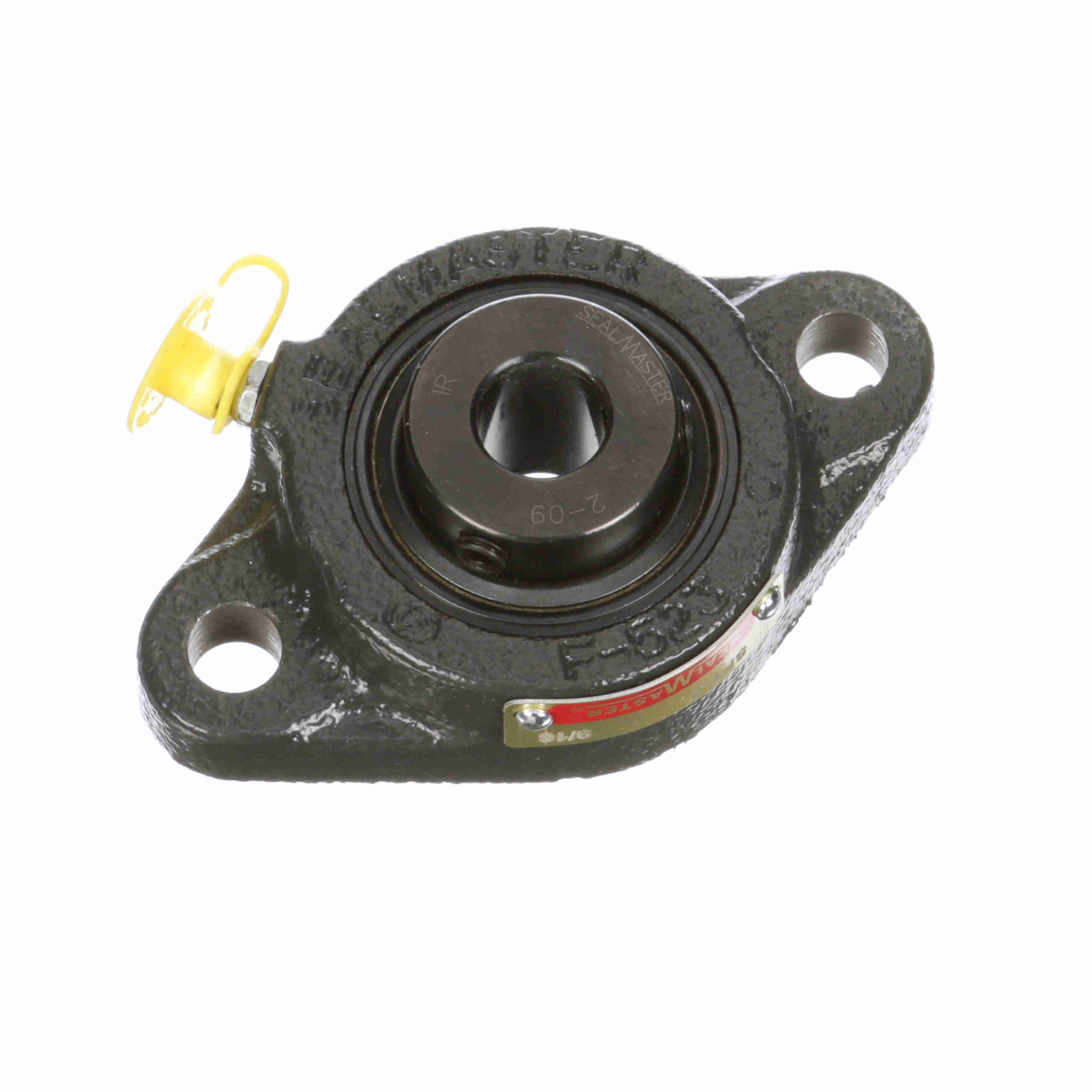

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SFT-9
Out of stock
| Housing Base: | Solid | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Rolling Element: | Ball Bearing | Pilot Configuration: | No Pilot |
| Housing Construction: | One Piece | Misalignment: | ±2.0° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb): | 2, 611 lb | Internal Clearance: | Standard |
| Bore Shape: | Straight | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated | Replaceable Insert: | Yes |
| Radial Static Load Capacity (lb): | 1, 444 lb | Housing Material: | Cast Iron |
| Maximum Speed (RPM): | 7300 rpm | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Setscrew | Housing Type: | Flange, Two Bolt |
| Retainer Type: | Land Riding Retainer | Fixed vs. Expansion: | Fixed |
| Housing Style: | Flange Block | Duty/Series: | Standard Duty |
| Ability to Relubricate: | Yes | Insert Number: | 45171 |
| Inner Race Heat Treat Method: | Zone-Hardened | Maximum Operating Temperature (F): | 220 °F |
| UPC: | 662461004203 | Weight: | 1.20 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 3.94 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
