- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SFT-32T

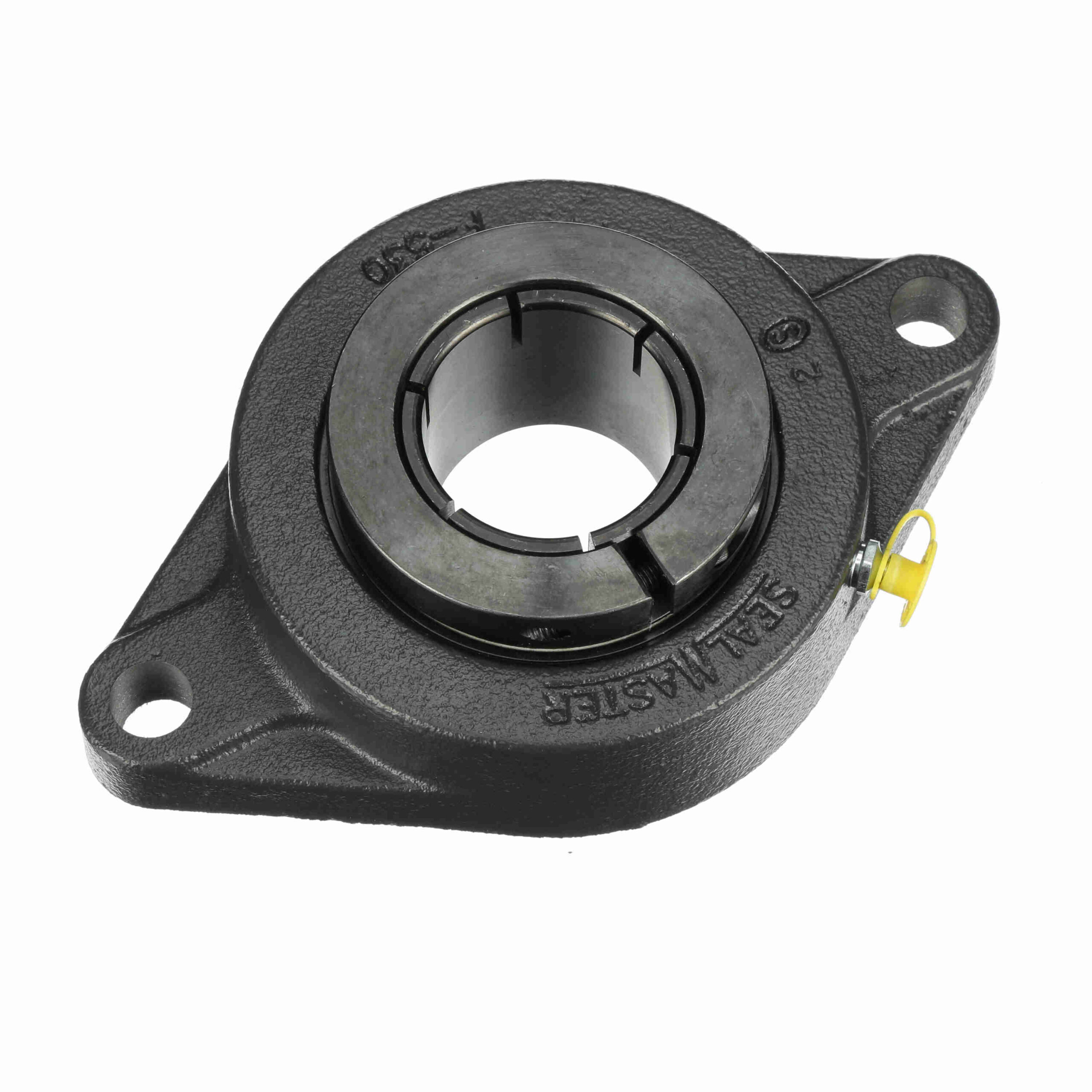

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SFT-32T
$285.71
Availability: 25 in stock
Availability: 25 in stock
| Retainer Type: | Land Riding Retainer | Insert Material: | 52100 Bearing Steel; Black Oxided |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Housing Base: | Solid |
| Duty Series: | Standard Duty | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Expansion: | No | Insert No.: | 2-2T |
| Rolling Element: | Ball Bearing | Maximum Operating Temperature: | 220 °F |
| Measure Units: | Inch | Housing Material: | Cast Iron |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Internal Clearance: | Standard | Housing Type: | Flange; Two Bolt |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Locking Type: | Concentric | Bore Shape: | Straight |
| Speed (Max): | 4500 | Misalignment: | ±2.0° Misalignment - Static Only |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Replaceable Insert: | Yes | Platform: | Gold Line Ball Bearing |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Misalignment Type: | Static Only | UPC: | 662461030455 |
| Weight: | 8.90 LB | Packaged Length: | 8.44 Inches |
| Packaged Width: | 5.5 Inches | Packaged Height: | 2.5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
