- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SFT-20T

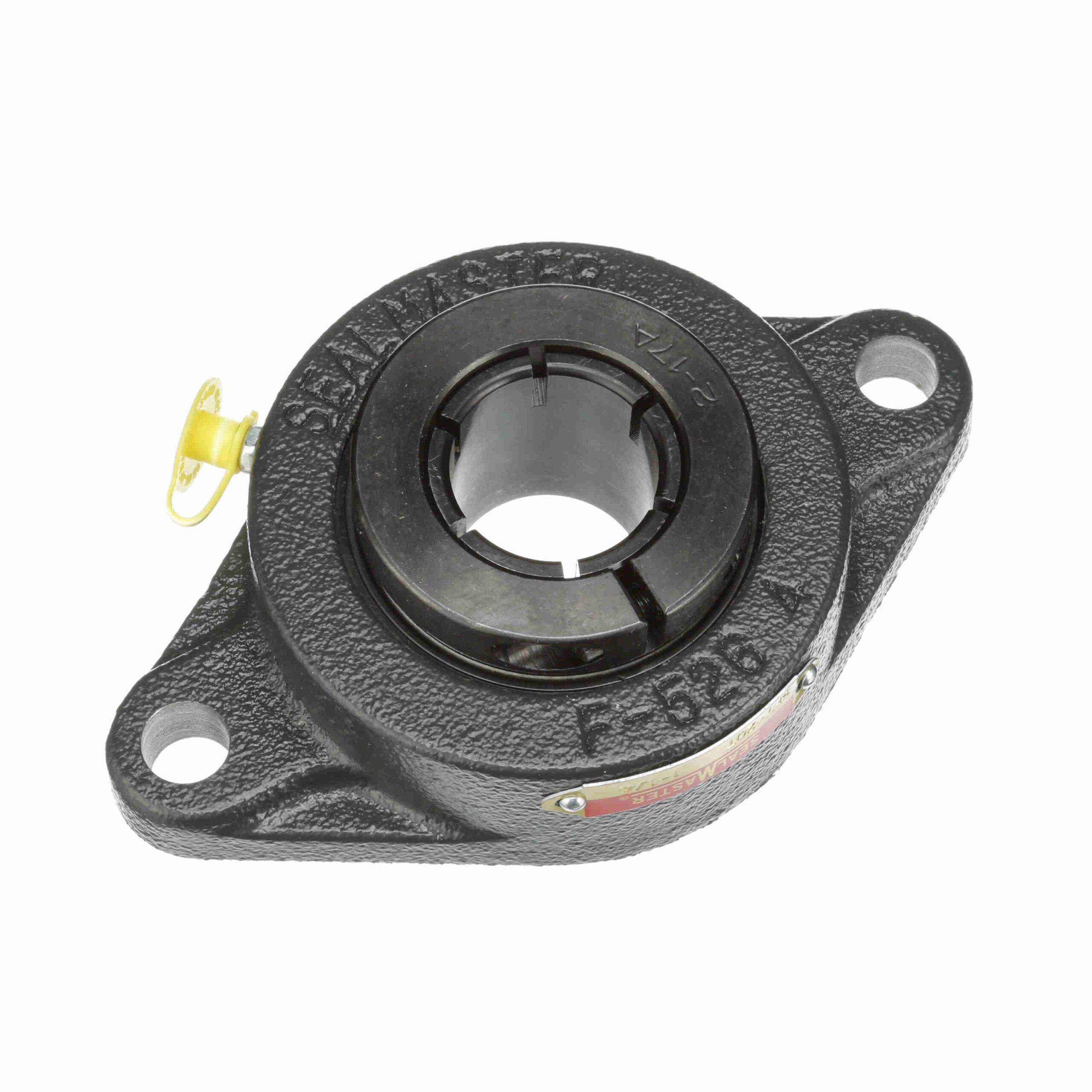

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SFT-20T
$150.31
Availability: 12 in stock
Availability: 12 in stock
| Insert Material: | 52100 Bearing Steel; Black Oxided | Insert No.: | 2-14T |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Retainer Type: | Land Riding Retainer | Housing Base: | Solid |
| Housing Material: | Cast Iron | Maximum Operating Temperature: | 220 °F |
| Duty Series: | Standard Duty | Expansion: | No |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Misalignment: | ±2.0° Misalignment - Static Only | Speed (Max): | 6500 |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Lubrication: | Lithium Complex NLGI 2 Grease |
| Internal Clearance: | Standard | Locking Type: | Concentric |
| Bore Shape: | Straight | Housing Type: | Flange; Two Bolt |
| Housing Construction: | One Piece | Misalignment Type: | Static Only |
| Platform: | Gold Line Ball Bearing | End Cap: | No |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Radial Static Load Capacity (lb): | 3, 493 | UPC: | 662461030370 |
| Weight: | 3.49 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
