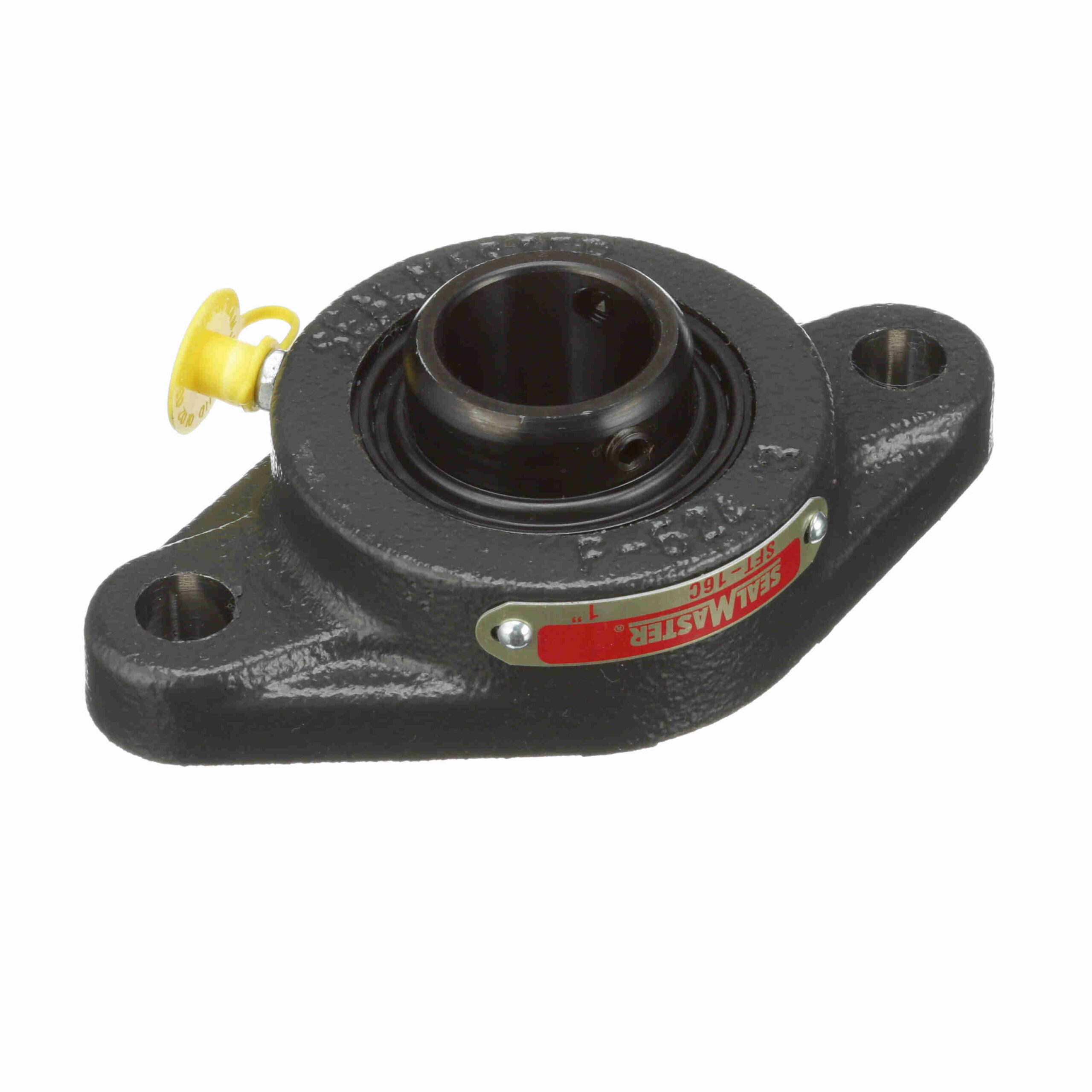

SFT-16 HTC

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
High temperature single lip contact seal
Increased internal clearance and high temperature grease
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Housing Base:	Solid	Insert Material:	52100 Bearing Steel, Black Oxided
Measure Units:	Inch	Seal Type:	Single Lip Contact Seal
Rolling Element:	Ball Bearing	Pilot Configuration:	No Pilot
Misalignment:	±2.0° Misalignment - Static Only	Bore Shape:	Straight
Internal Clearance:	Increased	Housing Construction:	One Piece
Bearing Insert Coating:	Black Oxide Coated	Misalignment Type:	Static Only
End Cap:	No	Replaceable Insert:	Yes
Platform:	Gold Line Ball Bearing	Outer Ring Land Profile:	Standard
Options:	High Temperature	Housing Color:	Gray
Housing Style:	Flange Block	Housing Type:	Flange, Two Bolt
Maximum Speed (RPM):	800 rpm	Fixed vs. Expansion:	Fixed
Duty/Series:	Standard Duty	Locking Type:	Setscrew
Housing Material:	Cast Iron	Lubrication Type:	Synthetic NLGI 2 High Temperature Grease
Retainer Type:	Land Riding Retainer	Inner Race Heat Treat Method:	Zone-Hardened
Operating Temperature Range (F):	Max. +400°F °F	Ability to Relubricate:	Yes
Maximum Operating Temperature (F):	400 °F	Insert Number:	2-1 HTC
UPC:	662461320754	Weight:	1.60 LB
Packaged Length:	4 Inches	Packaged Width:	1.5 Inches
Packaged Height:	3.94 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
