- Cast iron housed, extended inner ring bearing with ball riding nylon retainer
- Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
- Skwezloc® Concentric locking for near perfect concentricity
- Single lip contact seal and flinger
- Supplied sealed for life with optional lubrication fitting in the box
SFMH-31T

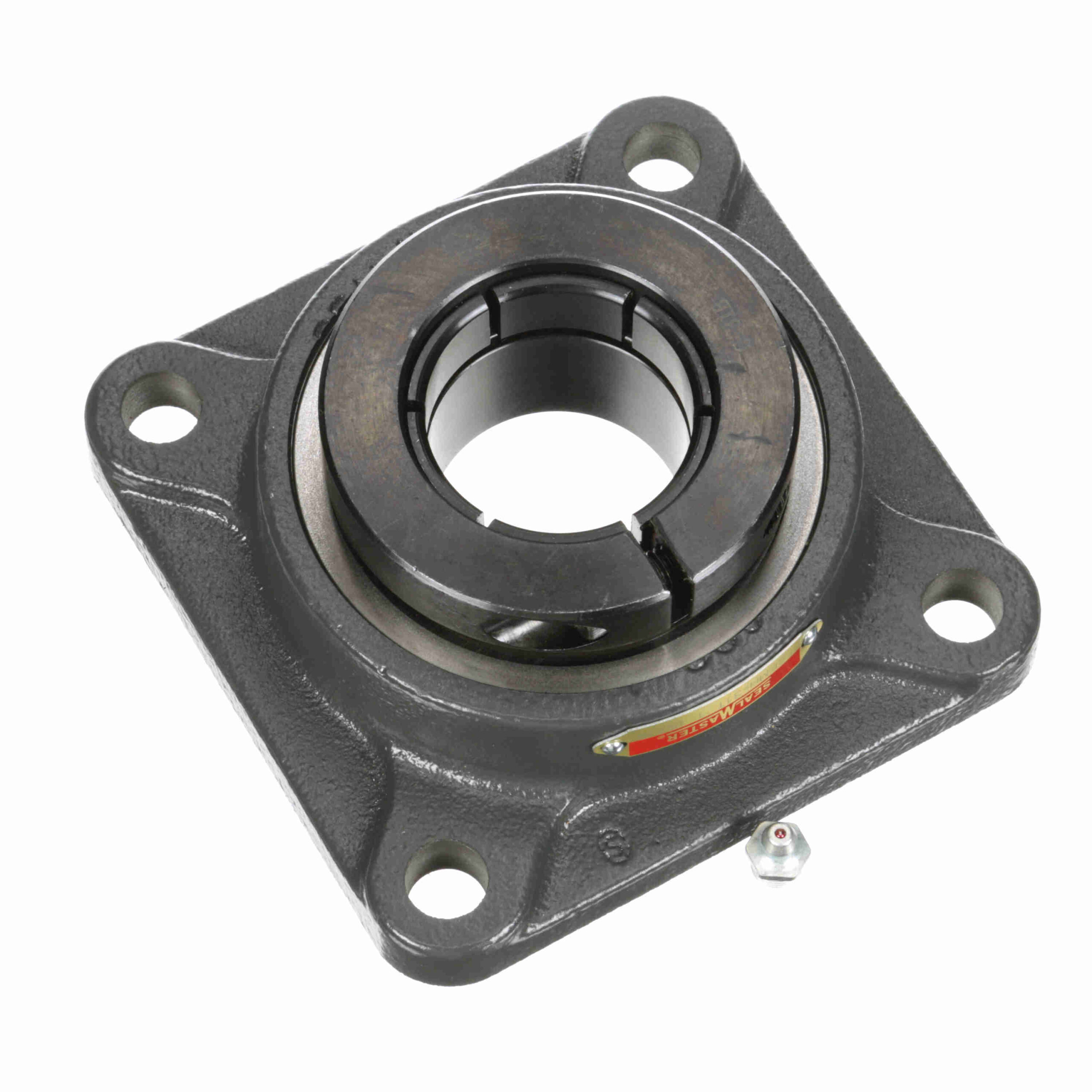

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SFMH-31T
$204.83
Availability: 5 in stock
Availability: 5 in stock
| Seal Type: | Single Lip Contact Seal | Bore Shape: | Straight |
|---|---|---|---|
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Rolling Element: | Ball Bearing | Housing Base: | Solid |
| Pilot Configuration: | No Pilot | Internal Clearance: | Standard |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Radial Dynamic Load Capacity (lb): | 7, 889 lb | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | End Cap: | No |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 5, 216 lb | Housing Type: | Flange, Four Bolt |
| Maximum Speed (RPM): | 3000 rpm | Housing Material: | Cast Iron |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Retainer Type: | Land Riding Retainer |
| Duty/Series: | Standard Duty | Locking Type: | Concentric |
| Fixed vs. Expansion: | Fixed | Housing Style: | Flange Block |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | Yes |
| Maximum Operating Temperature (F): | 220 °F | Insert Number: | MH-31T |
| UPC: | 662461340806 | Weight: | 6.35 LB |
| Packaged Length: | 6.9 Inches | Packaged Width: | 6.1 Inches |
| Packaged Height: | 2.1 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
