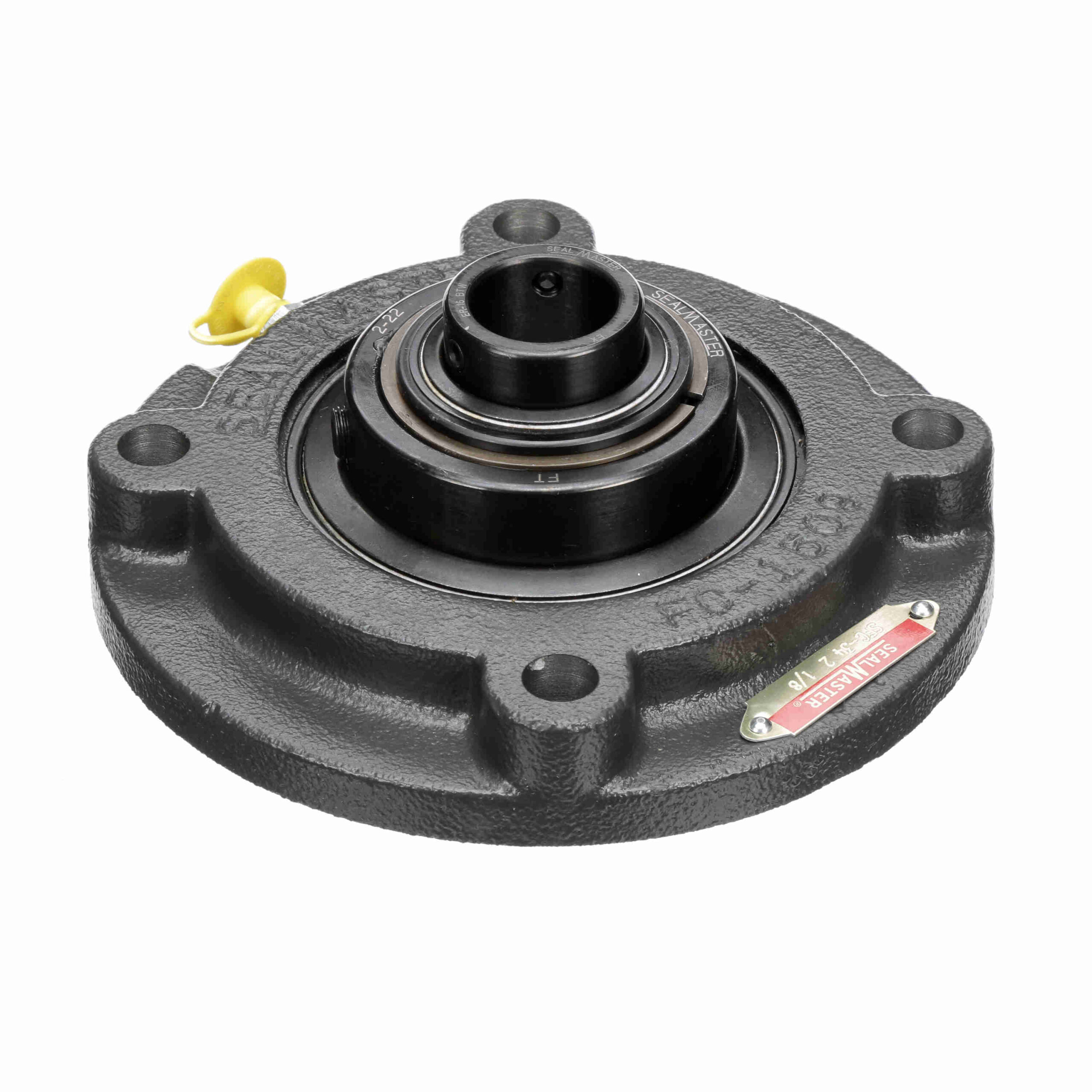

SFC-34

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Housing Type:	Flange, Piloted	Expansion:	No
Maximum Operating Temperature:	220 °F	Seal Type:	Felt Labyrinth Seal
Insert No.:	2-22 SFB ATO	Rolling Element:	Ball Bearing
Retainer Type:	Land Riding Retainer	Measure Units:	Inch
Insert Material:	52100 Bearing Steel, Black Oxided	Housing Material:	Cast Iron
Housing Base:	Solid	Bore Shape:	Straight
Duty Series:	Standard Duty	Pilot Configuration:	No Pilot
Relubricatable:	Yes	Internal Clearance:	Standard
Housing Construction:	One Piece	Lubrication:	Lithium Complex NLGI 2 Grease
Inner-Race Heat-Treat Method:	Zone-Hardened	Speed (Max):	3250
Misalignment:	±2.0° Misalignment - Static Only	Locking Type:	Setscrew
Replaceable Insert:	Yes	Housing Color:	Gray
Misalignment Type:	Static Only	Outer Ring Land Profile:	Standard
Platform:	Gold Line Ball Bearing	Bearing Insert Coating:	Black Oxide Coated
End Cap:	No	UPC:	662461004074
Weight:	6.90 LB	Packaged Length:	6.75 Inches
Packaged Width:	6.5 Inches	Packaged Height:	2.44 Inches
HTC:	8483.20.4040	Country of Origin:	United States of America
