- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SF 55 MM

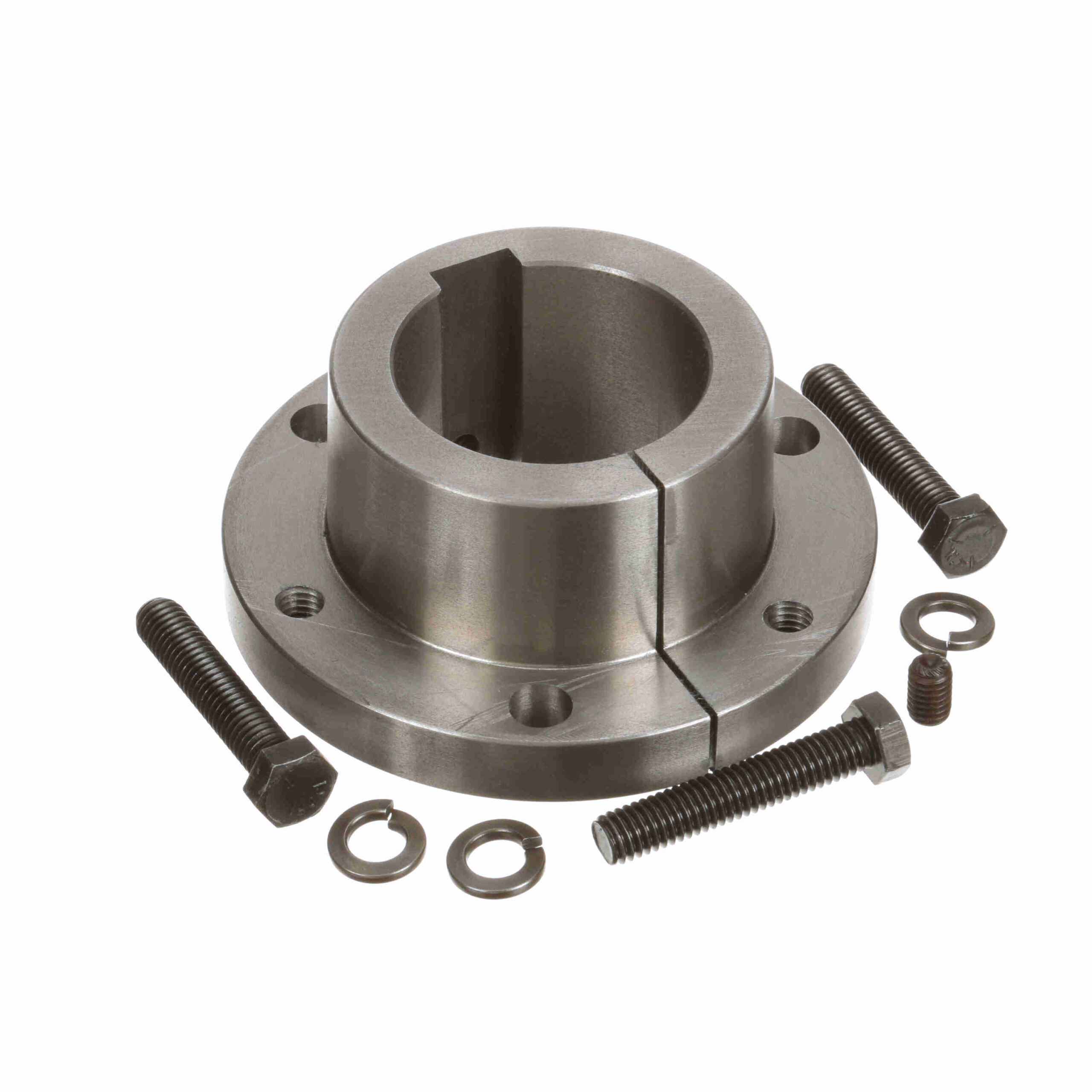

Browning Q-D Bushing – Metric Bore Type – SF 55 MM
$219.76
Out of stock
Out of stock
| Length Through Bore (mm): | 50.673 mm | Cap Screws (Size): | 3/8-16 x 2 |
|---|---|---|---|
| Compatible Bore Size [Max] (mm): | 55 mm | Total Length (mm): | 50.673 mm |
| Total Length (in): | 1.995 in | Wrench Torque (ft.-lbs.): | 30 |
| Cap Screws (No.): | 3 | Cap Screws (Bolt Circle): | 3.875 |
| Product Type: | Q-D Bushing | Outside Diameter (mm): | 117.475 mm |
| Torque Capacity (in-lb): | 11, 000 | Outside Diameter (in): | 4.625 in |
| Mounting Type: | Conventional | Keyway: | 16mm x 5mm |
| Bore Type: | Metric | Bushing Type: | SF |
| Bore Size (mm): | 55 mm | Barrel Length: | 1.4375 in |
| Barrel Diameter: | 3.125 in | Material: | Gray Iron - G3046 |
| Flange Thickness: | 0.5625 in | UPC: | 662289616244 |
| Weight: | 3.44 LB | Packaged Length: | 4.88 Inches |
| Packaged Width: | 4.88 Inches | Packaged Height: | 2.31 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
