- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SF-39TC

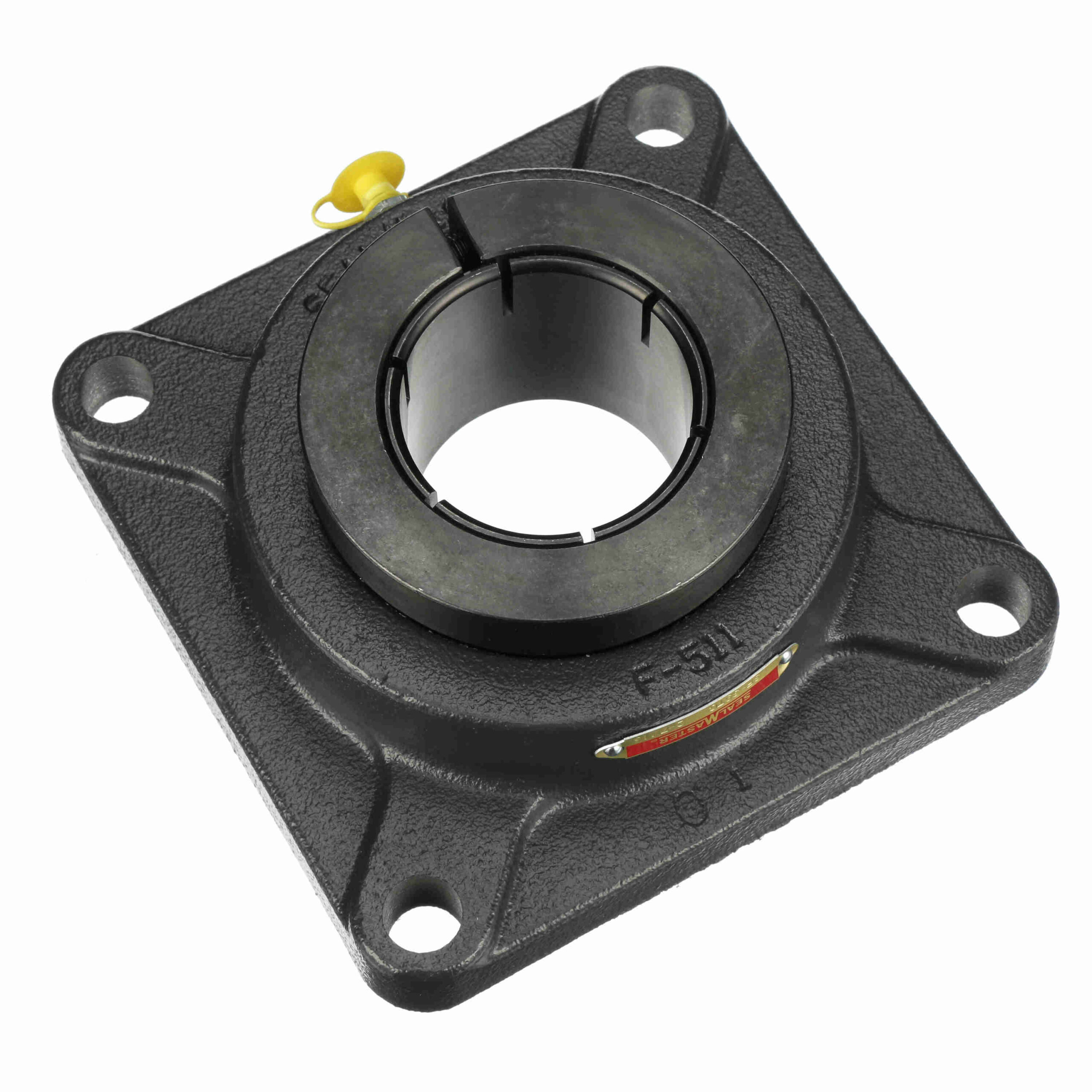

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SF-39TC
$340.48
Availability: 12 in stock
Availability: 12 in stock
| Duty Series: | Standard Duty | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Zone-Hardened | Insert No.: | 2-27TC |
| Seal Type: | Single Lip Contact Seal | Bore Shape: | Straight |
| Measure Units: | Inch | Housing Type: | Flange; Four Bolt |
| Retainer Type: | Land Riding Retainer | Housing Material: | Cast Iron |
| Rolling Element: | Ball Bearing | Housing Base: | Solid |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Expansion: | No |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Concentric | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Speed (Max): | 2550 |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide Coated |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| End Cap: | No | UPC: | 662461033197 |
| Weight: | 12.64 LB | Packaged Length: | 7.19 Inches |
| Packaged Width: | 7 Inches | Packaged Height: | 3.31 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
