- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SF-32RT

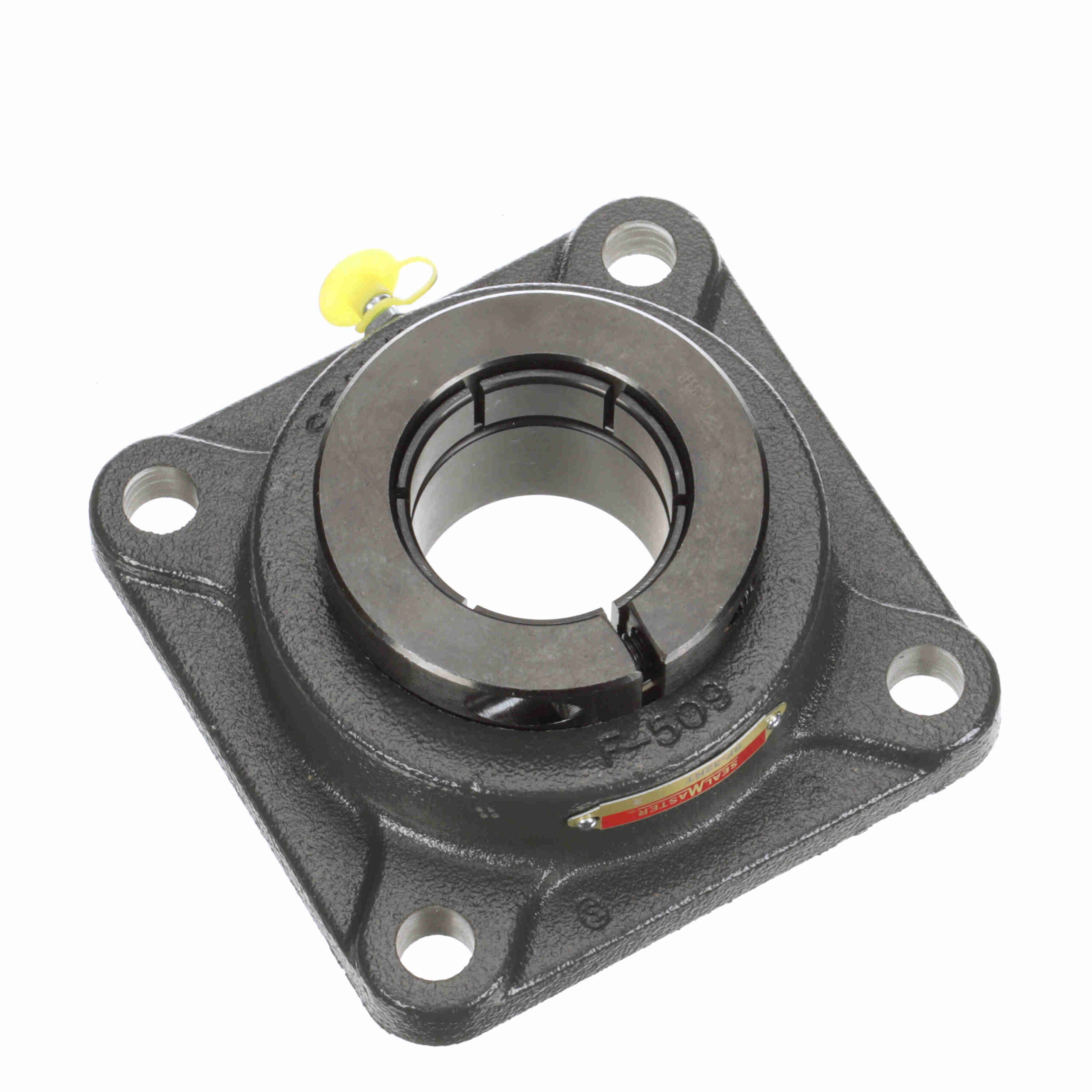

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SF-32RT
$343.00
Availability: 2 in stock
Availability: 2 in stock
| Insert No.: | 1-2T | Bore Shape: | Straight |
|---|---|---|---|
| Duty Series: | Standard Duty | Rolling Element: | Ball Bearing |
| Expansion: | No | Housing Type: | Flange; Four Bolt |
| Housing Base: | Solid | Retainer Type: | Land Riding Retainer |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Material: | Cast Iron |
| Maximum Operating Temperature: | 220 °F | Measure Units: | Inch |
| Seal Type: | Felt Labyrinth Seal | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Misalignment: | ±2.0° Misalignment - Static Only |
| Locking Type: | Concentric | Speed (Max): | 5000 |
| End Cap: | No | Misalignment Type: | Static Only |
| Housing Color: | Gray | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | UPC: | 662461062616 |
| Weight: | 6.70 LB | Packaged Length: | 6.5 Inches |
| Packaged Width: | 6.75 Inches | Packaged Height: | 2.44 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | United States of America |
