- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc? concentric locking for near perfect concentricity
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
SF-28TC

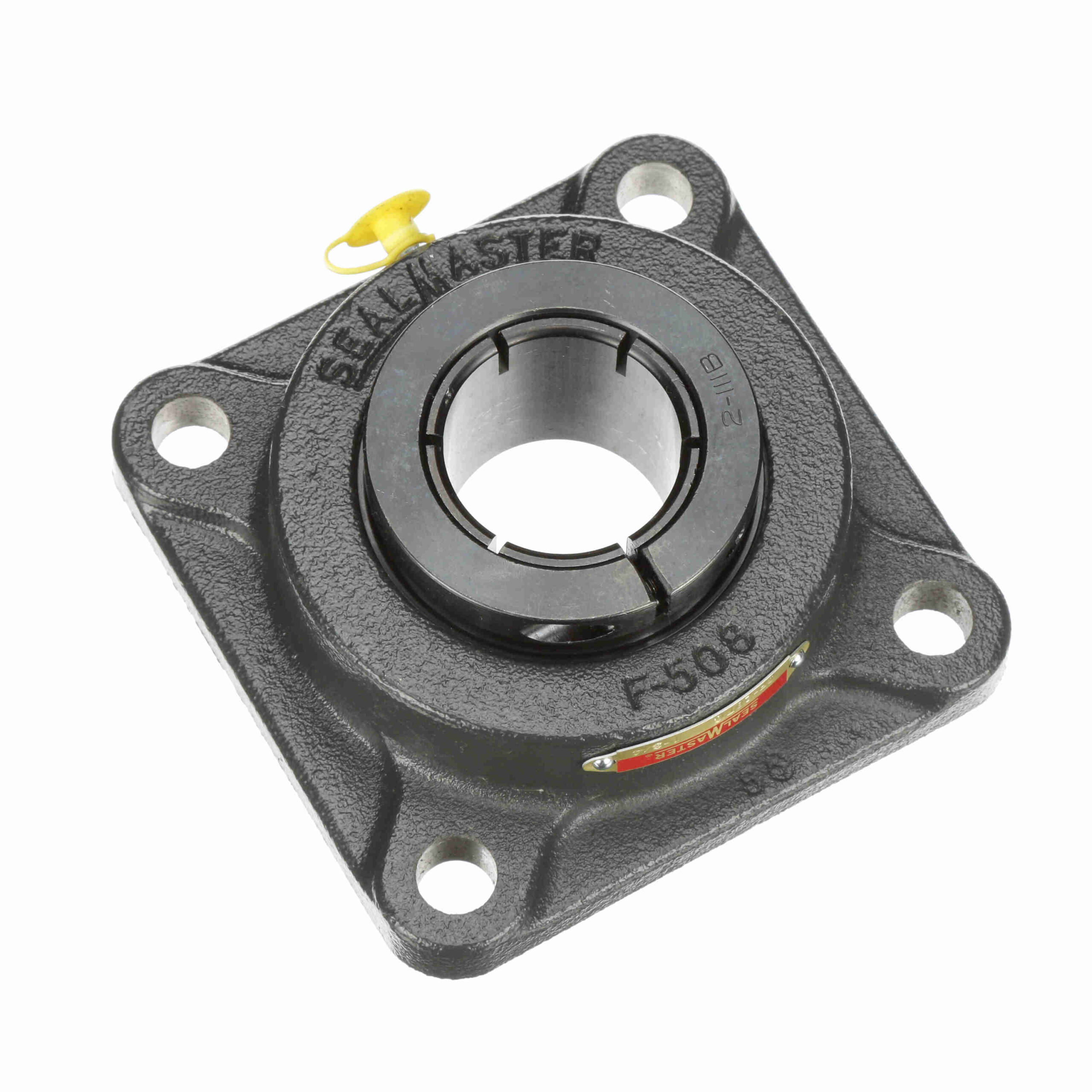

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SF-28TC
$194.48
Availability: 1 in stock
Availability: 1 in stock
| Insert No.: | 2-112TC | Housing Material: | Cast Iron |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Expansion: | No |
| Bore Shape: | Straight | Housing Type: | Flange; Four Bolt |
| Measure Units: | Inch | Retainer Type: | Land Riding Retainer |
| Seal Type: | Single Lip Contact Seal | Duty Series: | Standard Duty |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Maximum Operating Temperature: | 220 °F |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Base: | Solid |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Housing Construction: | One Piece | Locking Type: | Concentric |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±2.0° Misalignment - Static Only | Speed (Max): | 3800 |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | End Cap: | No |
| Platform: | Gold Line Ball Bearing | T Core: | 3.875 |
| UPC: | 662461033128 | Weight: | 6.06 LB |
| Packaged Length: | 6.06 Inches | Packaged Width: | 5.94 Inches |
| Packaged Height: | 2.19 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
