- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal with black oxide bearing races
- Metric fitting and mounting bolts
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SF-204TMC

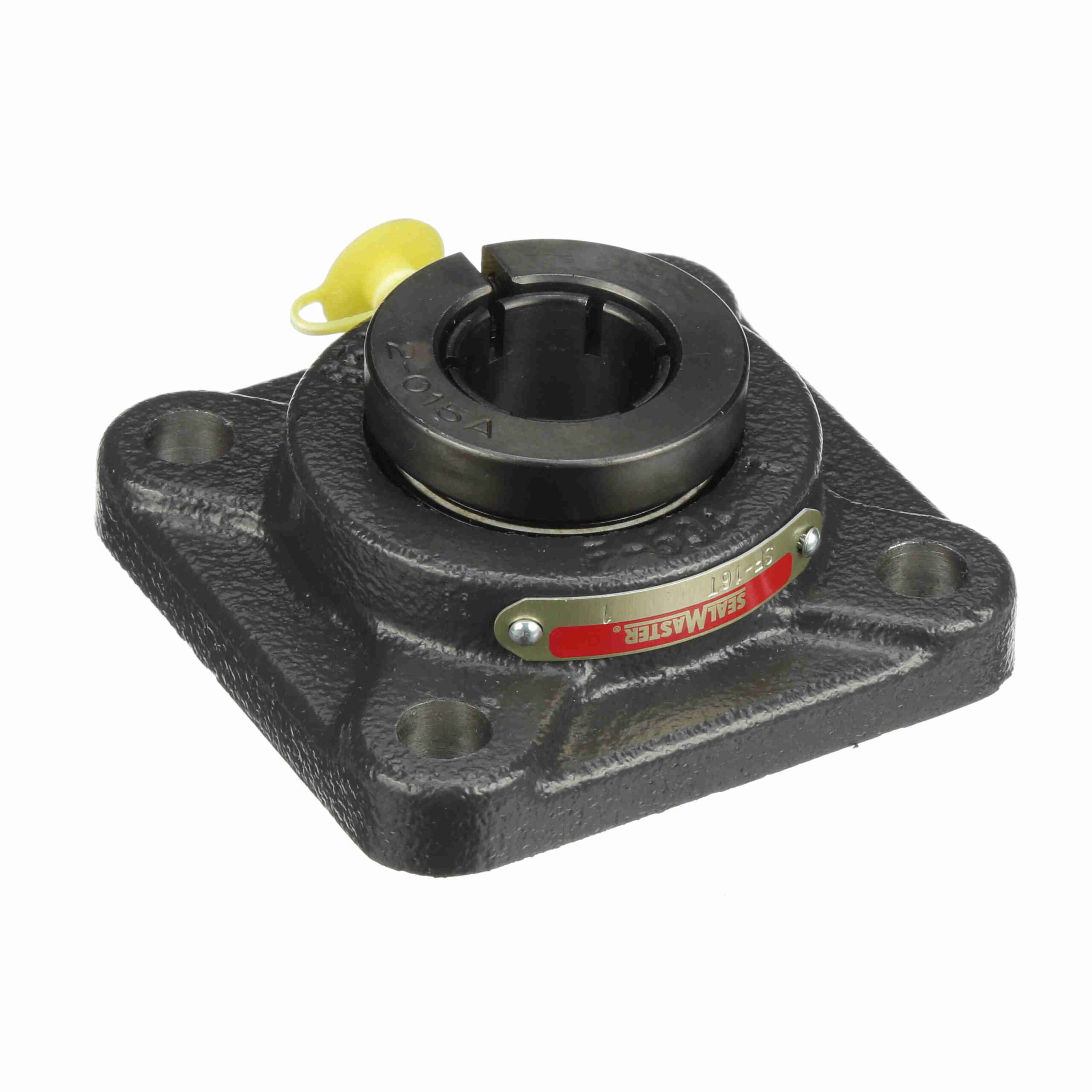

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SF-204TMC
$189.16
Out of stock
Out of stock
| Bore Shape: | Straight | Seal Type: | Single Lip Contact Seal |
|---|---|---|---|
| Housing Base: | Solid | Measure Units: | Metric |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Rolling Element: | Ball Bearing |
| Pilot Configuration: | No Pilot | Internal Clearance: | Standard |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Bearing Insert Coating: | Black Oxide Coated | Platform: | Gold Line Ball Bearing |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| End Cap: | No | Fixed vs. Expansion: | Fixed |
| Housing Style: | Flange Block | Locking Type: | Concentric |
| Duty/Series: | Standard Duty | Housing Type: | Flange, Four Bolt |
| Retainer Type: | Land Riding Retainer | Maximum Speed (RPM): | 6450 rpm |
| Housing Material: | Cast Iron | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Inner Race Heat Treat Method: | Zone-Hardened | Insert Number: | 5204TMC |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 220 °F |
| UPC: | 662461253816 | Weight: | 1.60 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 4 Inches |
| Packaged Height: | 3.94 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
