- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SF 2 1/4

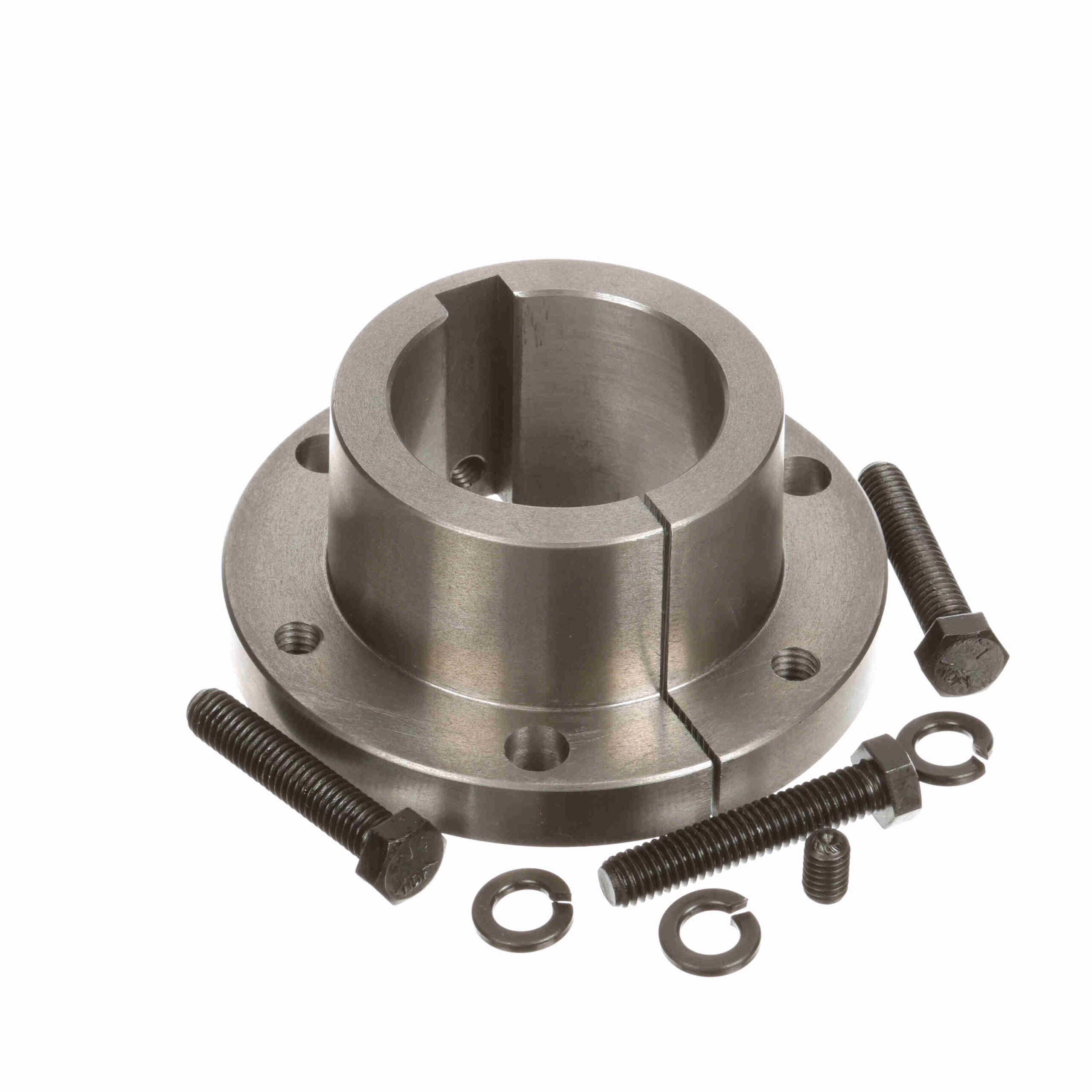

Browning Q-D Bushing – Inch Bore Type – SF 2 1/4
$111.55
Out of stock
Out of stock
| Cap Screws (Size): | 3/8-16 x 2 | Length Through Bore (in): | 1.995 in |
|---|---|---|---|
| Total Length (in): | 1.995 in | Compatible Bore Size [Max] (in): | 2.25 in |
| Cap Screws (Bolt Circle): | 3.875 | Wrench Torque (ft.-lbs.): | 30 |
| Mounting Type: | Conventional | Model Name: | QD-SF_Bushing_Master |
| Cap Screws (No.): | 3 | Product Type: | Q-D Bushing |
| Bore Type: | Inch | Outside Diameter (in): | 4.625 in |
| Keyway: | 1/2 x 1/4 | Bushing Type: | SF |
| Torque Capacity (in-lb): | 11, 000 | Bore Size (in): | 2.25 in |
| Flange Thickness: | 0.5625 in | Material: | Gray Iron - G3023 |
| Barrel Length: | 1.4375 in | Barrel Diameter: | 3.125 in |
| UPC: | 662289385317 | Weight: | 3.30 LB |
| Packaged Length: | 5.1 Inches | Packaged Width: | 5.2 Inches |
| Packaged Height: | 2.4 Inches |
