- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SF 1 5/16 3/8

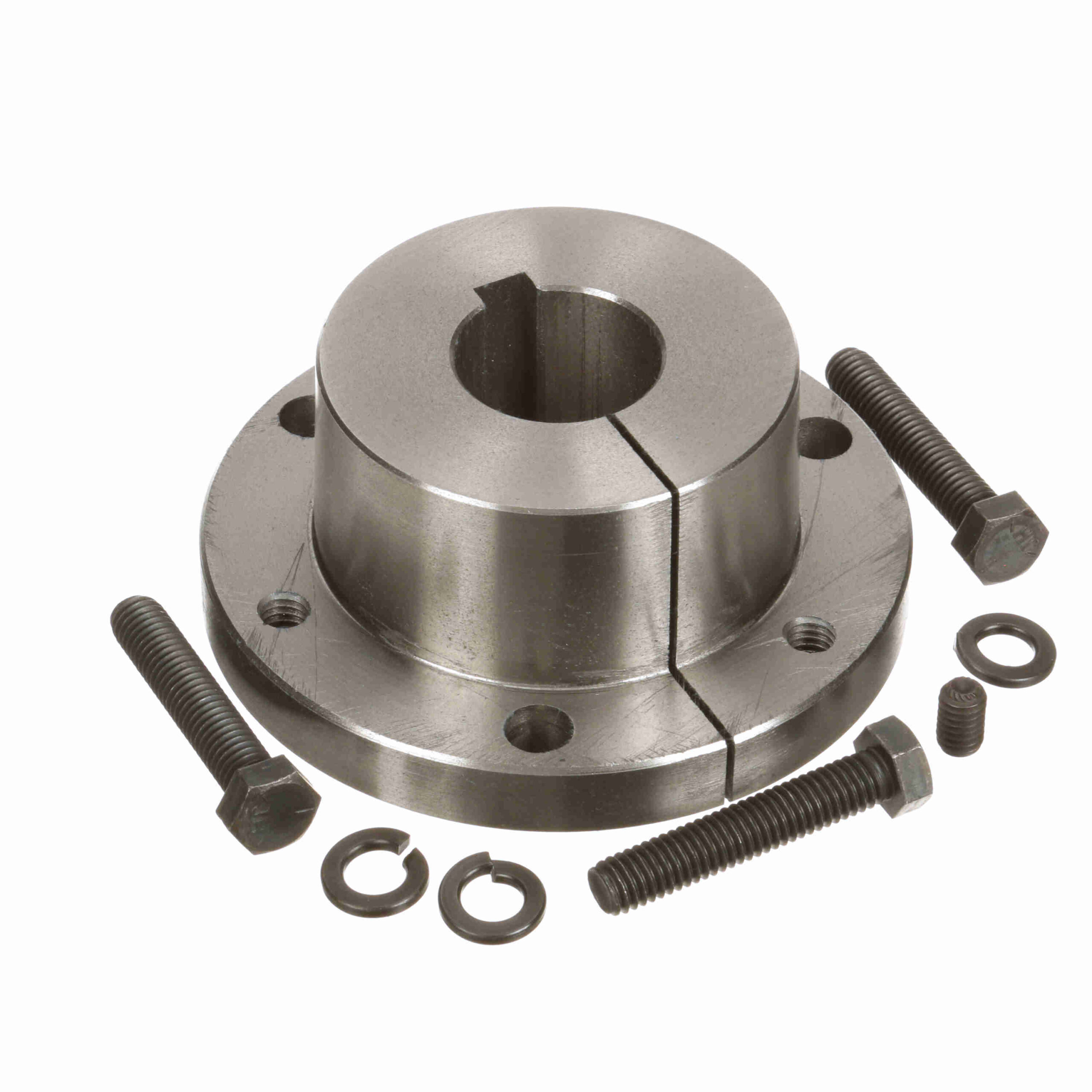

Browning Q-D Bushing – Inch Bore Type – SF 1 5/16 3/8
Out of stock
| Length Through Bore (in): | 1.995 in | Model Name: | QD-SF_Bushing_Master |
|---|---|---|---|
| Compatible Bore Size [Max] (in): | 1.3125 in | Keyway: | 3/8 x 3/16 |
| Bushing Type: | SF | Cap Screws (No.): | 3 |
| Cap Screws (Size): | 3/8-16 x 2 | Bore Type: | Inch |
| Mounting Type: | Conventional | Wrench Torque (ft.-lbs.): | 30 |
| Total Length (in): | 1.995 in | Product Type: | Q-D Bushing |
| Cap Screws (Bolt Circle): | 3.875 | Torque Capacity (in-lb): | 11, 000 |
| Outside Diameter (in): | 4.625 in | Bore Size (in): | 1.3125 in |
| Flange Thickness: | 0.5625 in | Barrel Diameter: | 3.125 in |
| Barrel Length: | 1.4375 in | Material: | Gray Iron - G3011 |
| UPC: | 662289415182 | Weight: | 5.06 LB |
| Packaged Length: | 5 Inches | Packaged Width: | 5.2 Inches |
| Packaged Height: | 2.4 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
