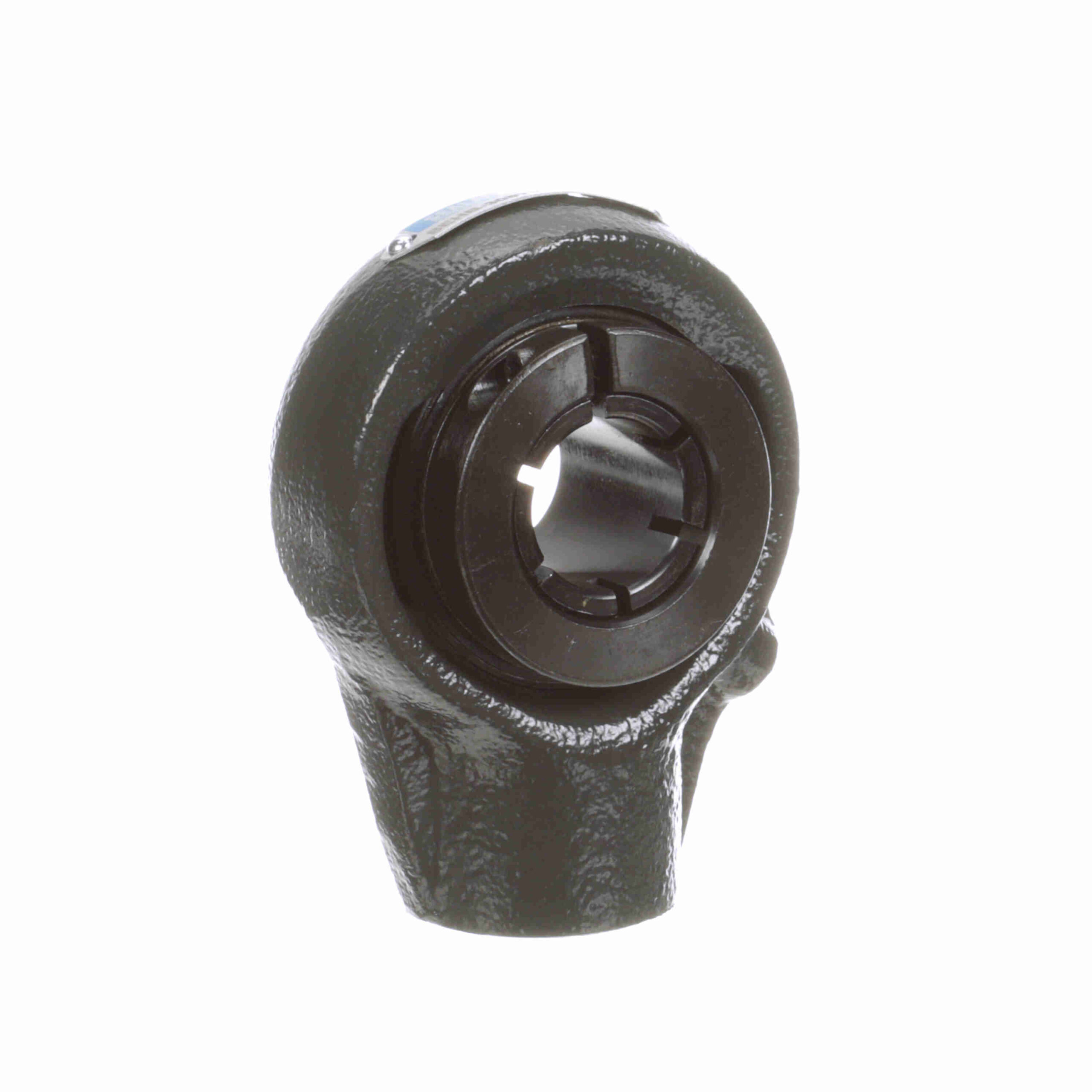

SEHB-305TM SXX

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Metric fitting and mounting bolts
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Bore Shape:	Straight	Insert Material:	52100 Bearing Steel, Black Oxided
Seal Type:	Felt Labyrinth Seal	Measure Units:	Metric
Rolling Element:	Ball Bearing	Internal Clearance:	Standard
Misalignment:	±2.0° Misalignment - Static Only	Housing Construction:	One Piece
Bearing Insert Coating:	Black Oxide Coated	Outer Ring Land Profile:	Standard
Misalignment Type:	Static Only	Replaceable Insert:	Yes
End Cap:	No	Platform:	Gold Line Ball Bearing
Housing Color:	Gray	Lubrication Type:	Lithium Complex NLGI 2 Grease
Locking Type:	Concentric	Housing Material:	Cast Iron
Retainer Type:	Land Riding Retainer	Housing Style:	Hanger Block
Duty/Series:	Standard Duty	Maximum Speed (RPM):	7600 rpm
Housing Type:	Hanger Unit	Fixed vs. Expansion:	Fixed
Maximum Operating Temperature (F):	220 °F	Insert Number:	5305T
Ability to Relubricate:	Yes	Housing Thread Size:	1 1/4 - 11 1/2
Inner Race Heat Treat Method:	Zone-Hardened	UPC:	662461000000
Weight:	2.30 LB	Packaged Length:	4.5 Inches
Packaged Width:	1.69 Inches	Packaged Height:	4.56 Inches
HTC:	8483.20.4040	Country of Origin:	United States of America
