- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SDS 2

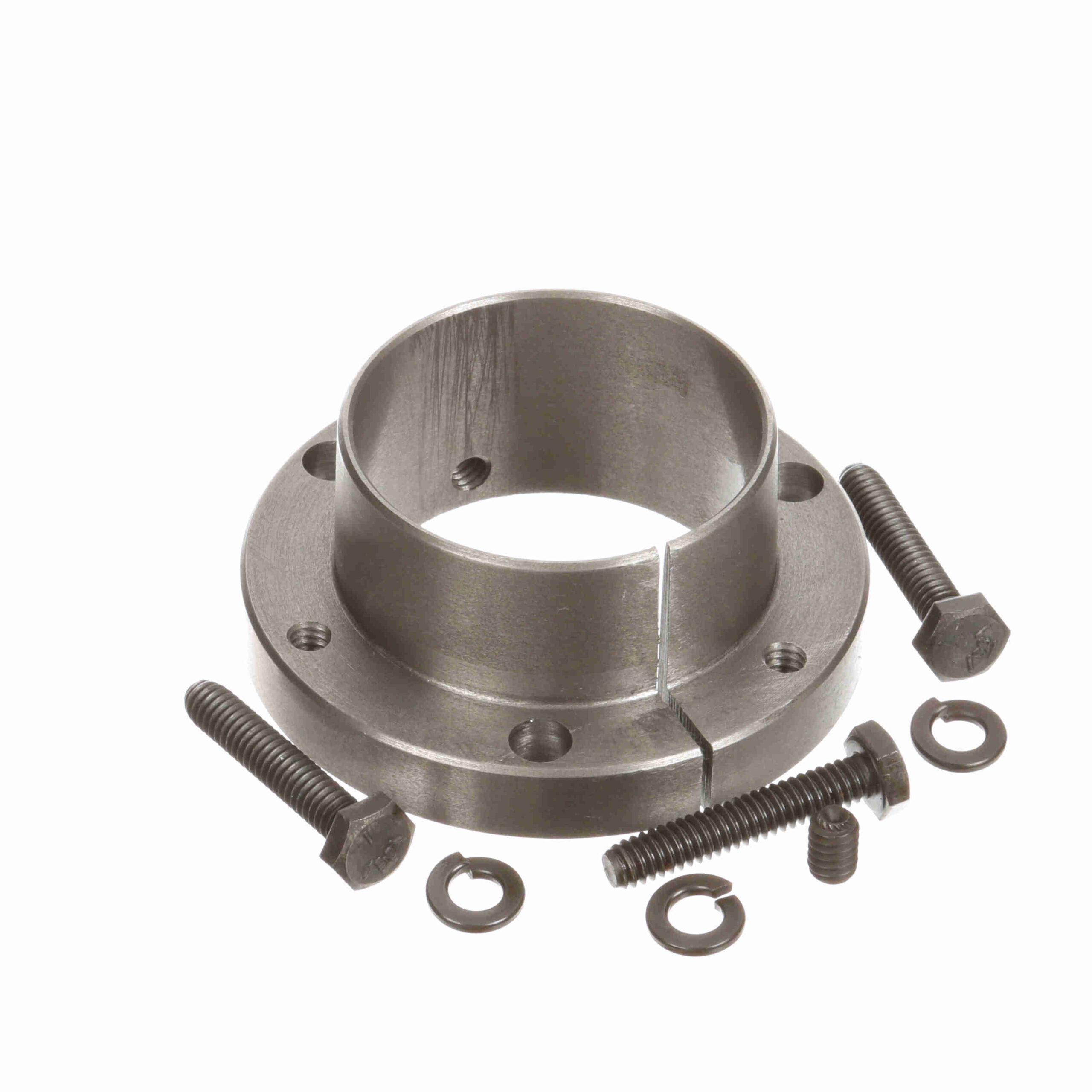

Browning Q-D Bushing – Inch Bore Type – SDS 2
$112.12
Out of stock
Out of stock
| Bushing Type: | SDS | Mounting Type: | Conventional |
|---|---|---|---|
| Length Through Bore (in): | 1.33 in | Cap Screws (No.): | 3 |
| Bore Type: | Inch | Cap Screws (Size): | 1/4-20 x 1 3/8 |
| Cap Screws (Bolt Circle): | 2.6875 | Compatible Bore Size [Max] (in): | 2 in |
| Total Length (in): | 1.33 in | Wrench Torque (ft.-lbs.): | 9 |
| Torque Capacity (in-lb): | 5, 000 | Outside Diameter (in): | 3.125 in |
| Model Name: | QD-SDS_Bushing_Master | Product Type: | Q-D Bushing |
| Bore Size (in): | 2 in | Barrel Length: | 0.88 in |
| Flange Thickness: | 0.45 in | Material: | Ductile Iron - 65-45-66 |
| Barrel Diameter: | 2.1875 in | UPC: | 662289355075 |
| Weight: | 0.76 LB | Packaged Length: | 4.6 Inches |
| Packaged Width: | 4.6 Inches | Packaged Height: | 1.7 Inches |
