- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
SD 35 MM

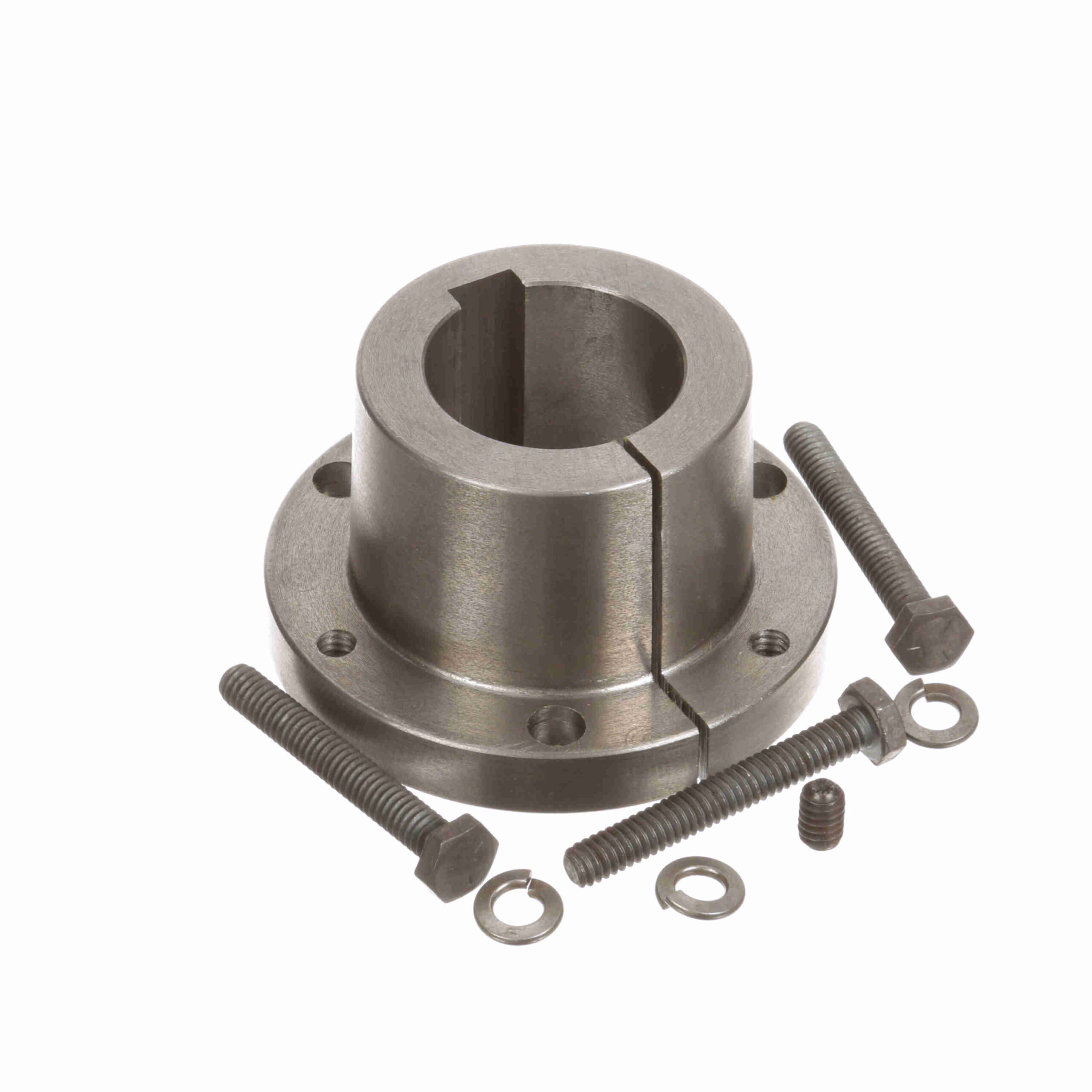

Browning Q-D Bushing – Metric Bore Type – SD 35 MM
$138.52
Out of stock
Out of stock
| Mounting Type: | Conventional | Bushing Type: | SD |
|---|---|---|---|
| Cap Screws (No.): | 3 | Wrench Torque (ft.-lbs.): | 9 |
| Compatible Bore Size [Max] (mm): | 35 mm | Length Through Bore (mm): | 46.482 mm |
| Torque Capacity (in-lb): | 5, 000 | Product Type: | Q-D Bushing |
| Outside Diameter (in): | 3.125 in | Outside Diameter (mm): | 79.375 mm |
| Total Length (in): | 1.83 in | Bore Type: | Metric |
| Total Length (mm): | 46.482 mm | Keyway: | 10mm x 4mm |
| Cap Screws (Bolt Circle): | 2.6875 | Cap Screws (Size): | 1/4-20 x 1 7/8 |
| Bore Size (mm): | 35 mm | Material: | Ductile Iron - 65-45-39 |
| Barrel Length: | 1.38 in | Flange Thickness: | 0.45 in |
| Barrel Diameter: | 2.1875 in | UPC: | 662289615858 |
| Weight: | 1.55 LB | Packaged Length: | 4.2 Inches |
| Packaged Width: | 4.2 Inches | Packaged Height: | 2 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
