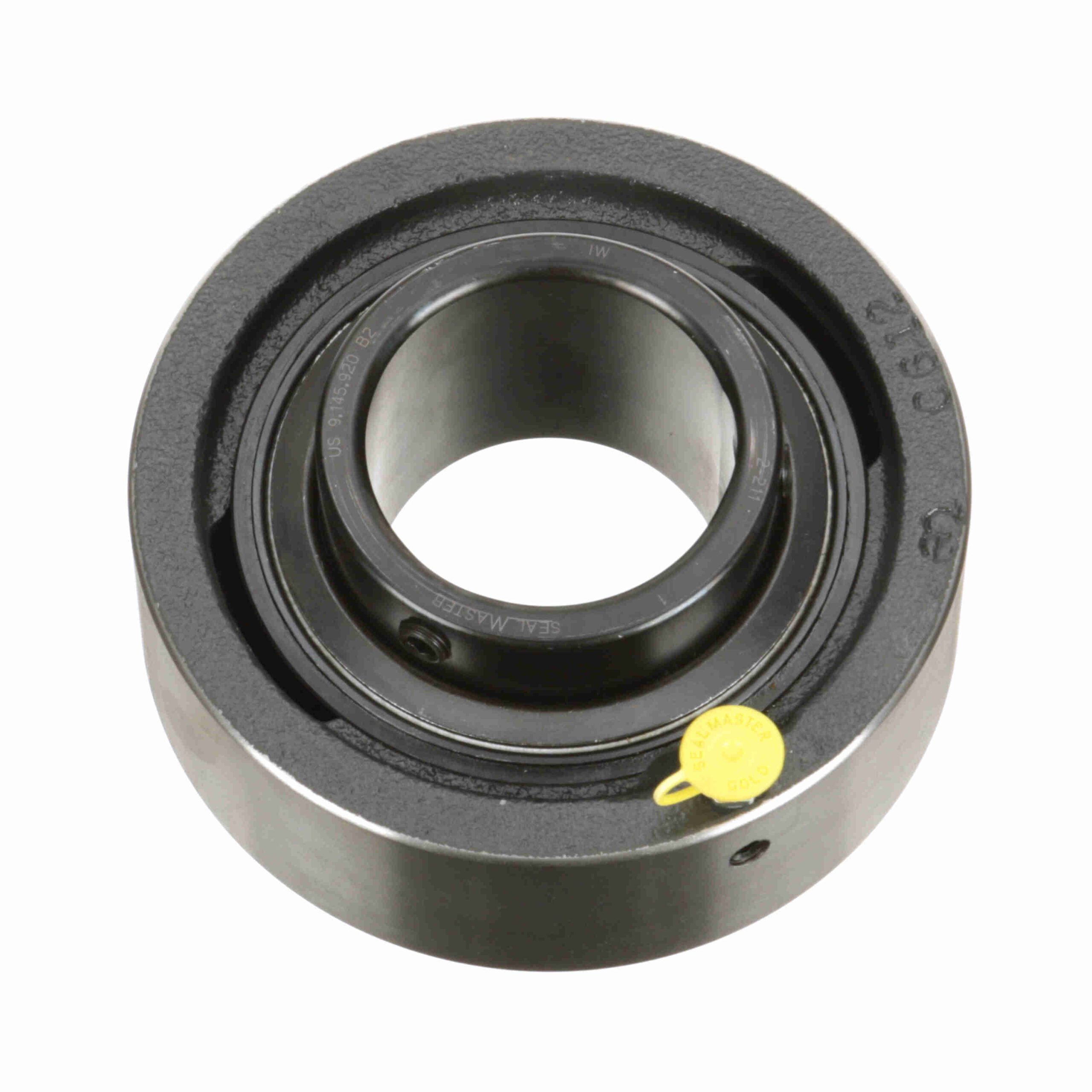

SC-43

Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Insert Material:	52100 Bearing Steel, Black Oxided	Rolling Element:	Ball Bearing
Seal Type:	Felt Labyrinth Seal	Housing Construction:	One Piece
Measure Units:	Inch	Internal Clearance:	Standard
Radial Dynamic Load Capacity (lb):	13, 971 lb	Misalignment:	±2.0° Misalignment - Static Only
Bore Shape:	Straight	Outer Ring Land Profile:	Standard
Misalignment Type:	Static Only	End Cap:	No
Housing Color:	Gray	Replaceable Insert:	Yes
Bearing Insert Coating:	Black Oxide Coated	Platform:	Gold Line Ball Bearing
Radial Static Load Capacity (lb):	10, 063 lb	Cage Material:	Brass
Series:	SC	Housing Material:	Cast Iron
Fixed vs. Expansion:	Fixed	Retainer Type:	Land Riding Retainer
Lubrication Type:	Lithium Complex NLGI 2 Grease	Housing Type:	Cartridge, Cylindrical
Housing Style:	Cartidge Block	Maximum Speed (RPM):	2500 rpm
Locking Type:	Setscrew	Duty/Series:	Standard Duty
Insert Number:	2-211	Inner Race Heat Treat Method:	Zone-Hardened
Maximum Operating Temperature (F):	220 °F	Ability to Relubricate:	Yes
UPC:	662461000000	Weight:	12.60 LB
Packaged Length:	6.75 Inches	Packaged Width:	6.5 Inches
Packaged Height:	3.06 Inches	HTC:	8482.10.5056
Country of Origin:	United States of America
