- Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SC-31T

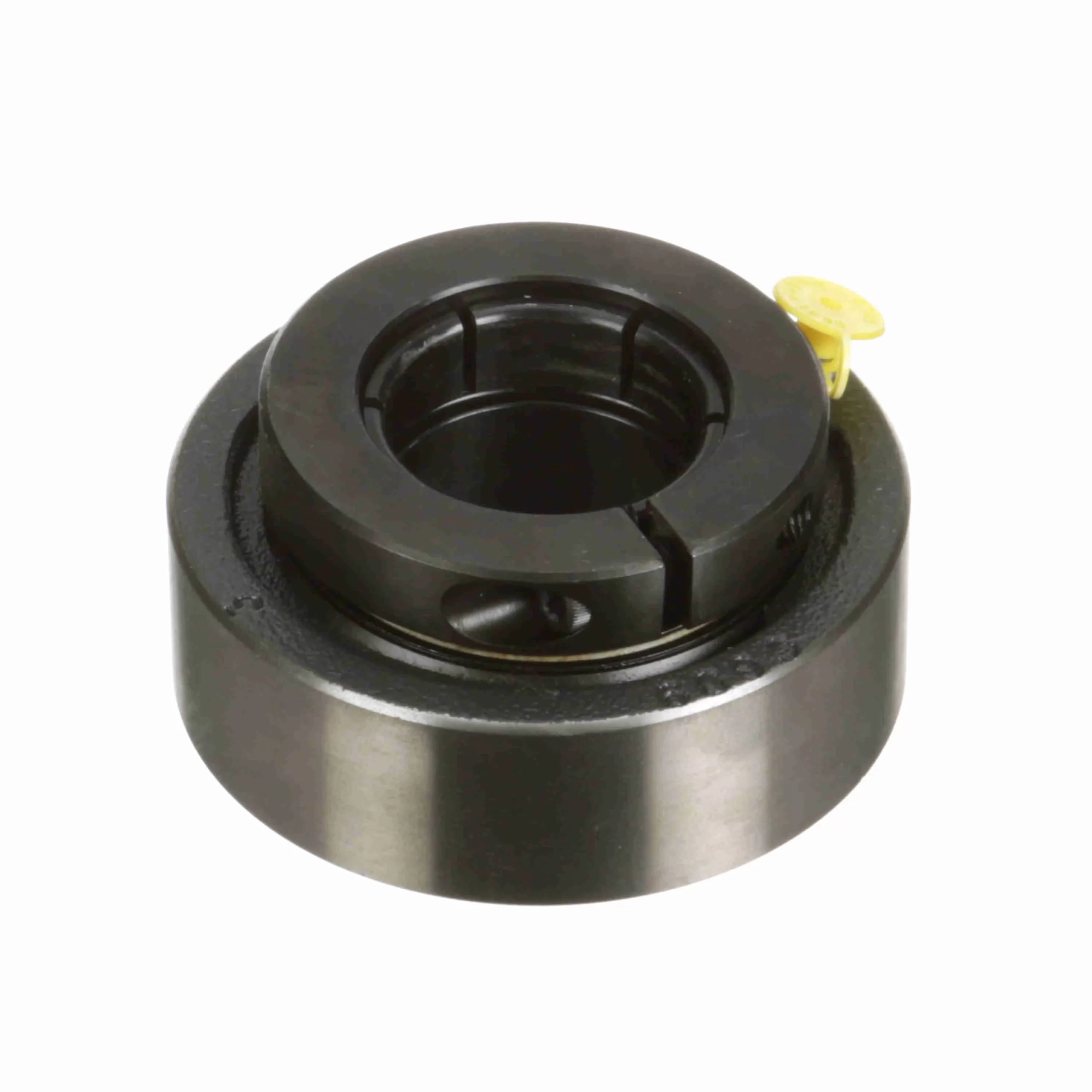

Sealmaster Mounted Cast Iron Cylindrical Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SC-31T
$314.20
Out of stock
Out of stock
| Insert No.: | 2-115T | Expansion: | No |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Duty Series: | Standard Duty |
| Maximum Operating Temperature: | 220 °F | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Rolling Element: | Ball Bearing | Housing Type: | Cartridge, Cylindrical |
| Retainer Type: | Land Riding Retainer | Housing Material: | Cast Iron |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Locking Type: | Concentric |
| Housing Construction: | One Piece | Misalignment: | ±2.0° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Internal Clearance: | Standard |
| Radial Dynamic Load Capacity (lb): | 7, 889 | Measure Units: | Inch |
| Relubricatable: | Yes | Speed (Max): | 5000 |
| Bore Shape: | Straight | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated | Housing Color: | Gray |
| Misalignment Type: | Static Only | Platform: | Gold Line Ball Bearing |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 5, 216 | Series: | SC-T |
| Cage Material: | PPS | UPC: | 662461029893 |
| Weight: | 5.15 LB | Packaged Length: | 5.5 Inches |
| Packaged Width: | 2.13 Inches | Packaged Height: | 5.5 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
