- Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SC-27T

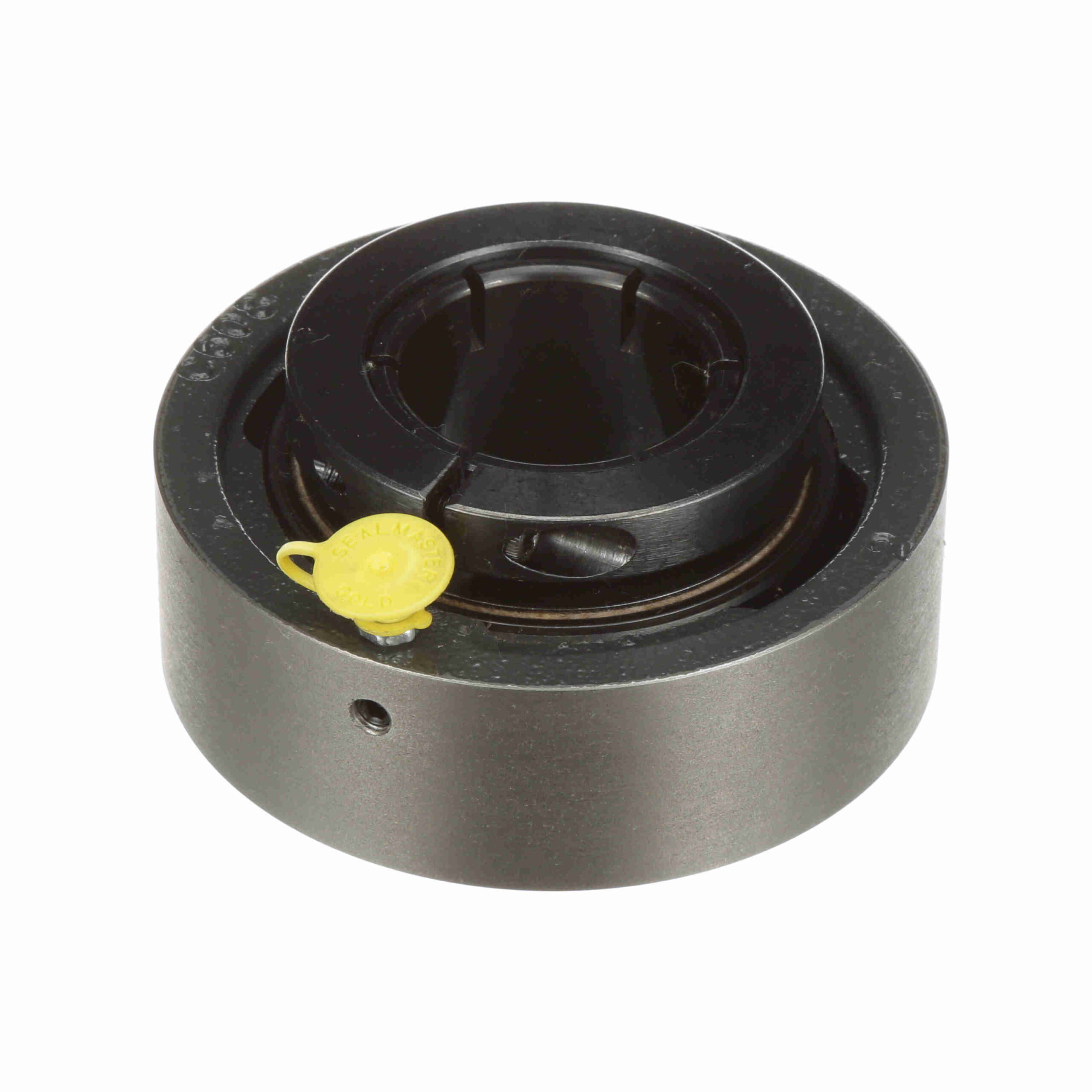

Sealmaster Mounted Cast Iron Cylindrical Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SC-27T
$284.24
Out of stock
Out of stock
| Expansion: | No | Insert Material: | 52100 Bearing Steel, Black Oxided |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Type: | Cartridge, Cylindrical |
| Maximum Operating Temperature: | 220 °F | Duty Series: | Standard Duty |
| Retainer Type: | Land Riding Retainer | Seal Type: | Felt Labyrinth Seal |
| Housing Material: | Cast Iron | Insert No.: | 2-111T |
| Rolling Element: | Ball Bearing | Radial Dynamic Load Capacity (lb): | 7, 901 |
| Measure Units: | Inch | Relubricatable: | Yes |
| Misalignment: | ±2.0° Misalignment - Static Only | Locking Type: | Concentric |
| Lubrication: | Lithium Complex NLGI 2 Grease | Bore Shape: | Straight |
| Housing Construction: | One Piece | Internal Clearance: | Standard |
| Speed (Max): | 5300 | Misalignment Type: | Static Only |
| End Cap: | No | Replaceable Insert: | Yes |
| Housing Color: | Gray | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 5, 139 | Cage Material: | PPS |
| Series: | SC-T | UPC: | 662461029879 |
| Weight: | 4.55 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 5 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
