- Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SC-24

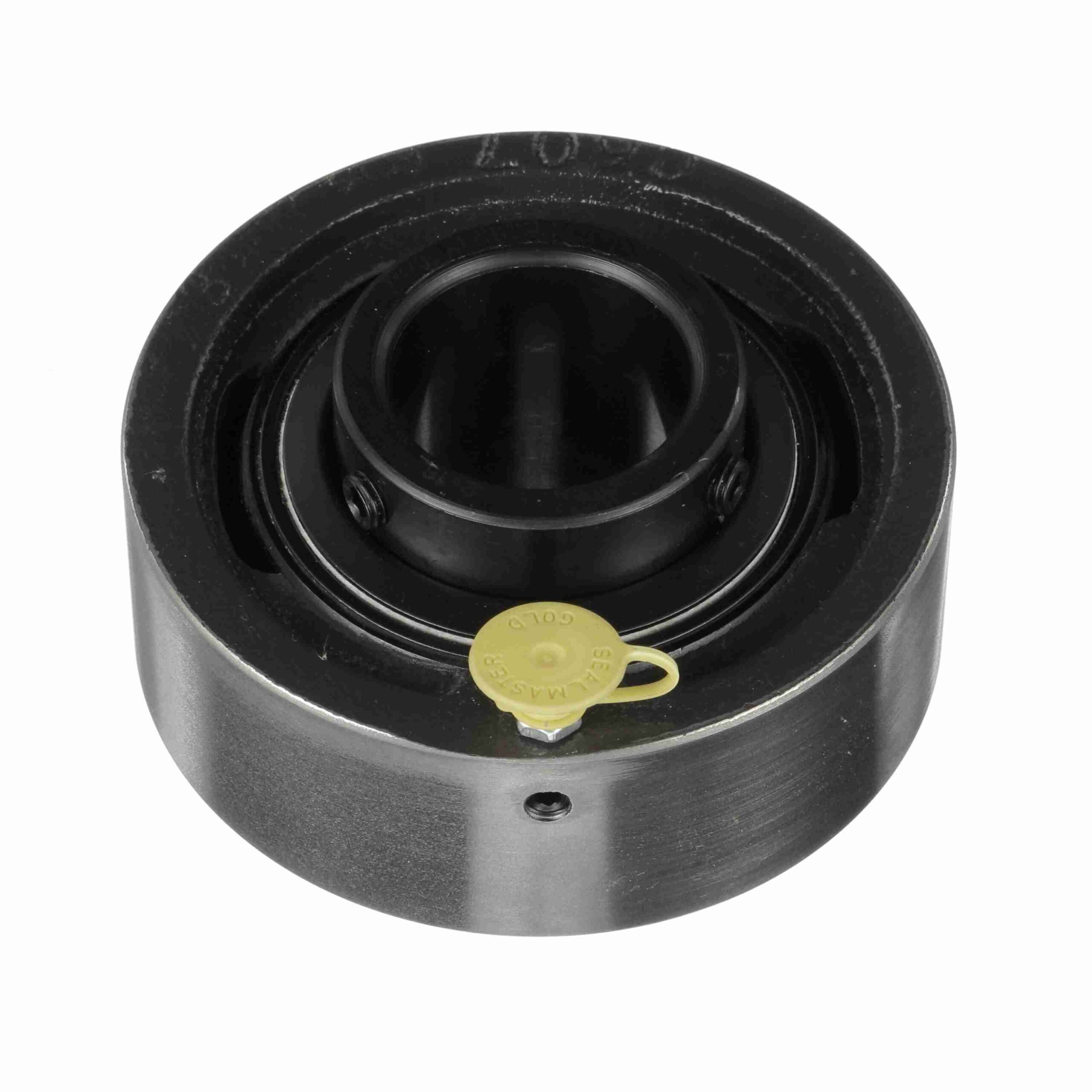

Sealmaster Mounted Cast Iron Cylindrical Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SC-24
$226.29
Availability: 17 in stock
Availability: 17 in stock
| Housing Type: | Cartridge; Cylindrical | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Retainer Type: | Land Riding Retainer | Housing Material: | Cast Iron |
| Expansion: | No | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Insert No.: | 2-18 |
| Seal Type: | Felt Labyrinth Seal | Duty Series: | Standard Duty |
| Rolling Element: | Ball Bearing | Relubricatable: | Yes |
| Housing Construction: | One Piece | Internal Clearance: | Standard |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Bore Shape: | Straight | Measure Units: | Inch |
| Speed (Max): | 4150 | Misalignment: | ±2.0° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb): | 7, 340 | Housing Color: | Gray |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated |
| Platform: | Gold Line Ball Bearing | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Radial Static Load Capacity (lb): | 4, 467 | Series: | SC |
| Cage Material: | PPS | UPC: | 662461002483 |
| Weight: | 3.96 LB | Packaged Length: | 5 Inches |
| Packaged Width: | 2 Inches | Packaged Height: | 5 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
