- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SC-23C

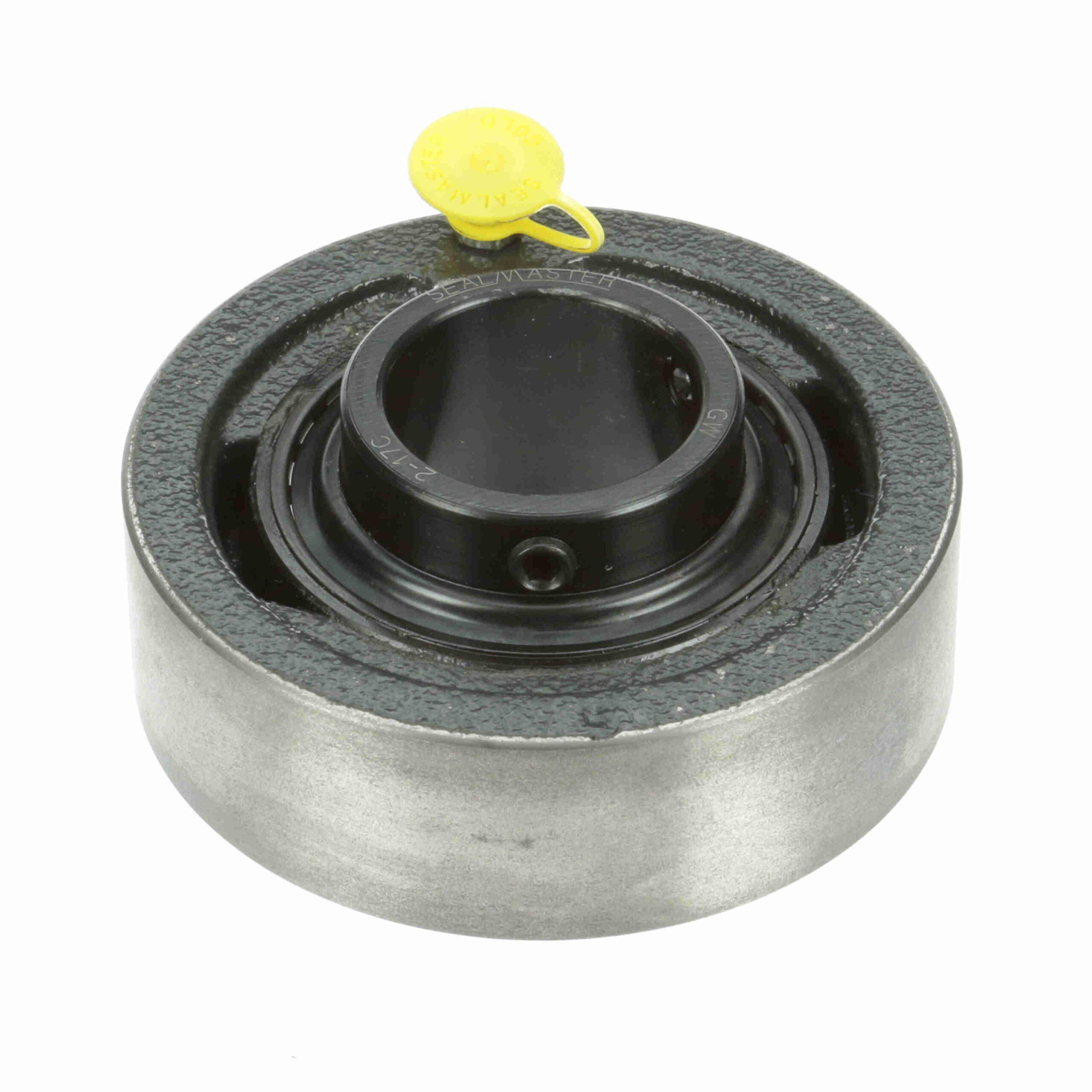

Sealmaster Mounted Cast Iron Cylindrical Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – SC-23C
$218.89
Out of stock
Out of stock
| Expansion: | No | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Material: | Cast Iron |
| Rolling Element: | Ball Bearing | Insert No.: | 2-17C |
| Housing Type: | Cartridge, Cylindrical | Seal Type: | Single Lip Contact Seal |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Duty Series: | Standard Duty |
| Retainer Type: | Land Riding Retainer | Misalignment: | ±2.0° Misalignment - Static Only |
| Internal Clearance: | Standard | Housing Construction: | One Piece |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Bore Shape: | Straight |
| Relubricatable: | Yes | Speed (Max): | 4650 |
| Locking Type: | Setscrew | Lubrication: | Lithium Complex NLGI 2 Grease |
| Measure Units: | Inch | Housing Color: | Gray |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Platform: | Gold Line Ball Bearing | End Cap: | No |
| Radial Static Load Capacity (lb): | 3, 493 | Cage Material: | PPS |
| Series: | SC | UPC: | 662461021088 |
| Weight: | 2.85 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 4.56 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
